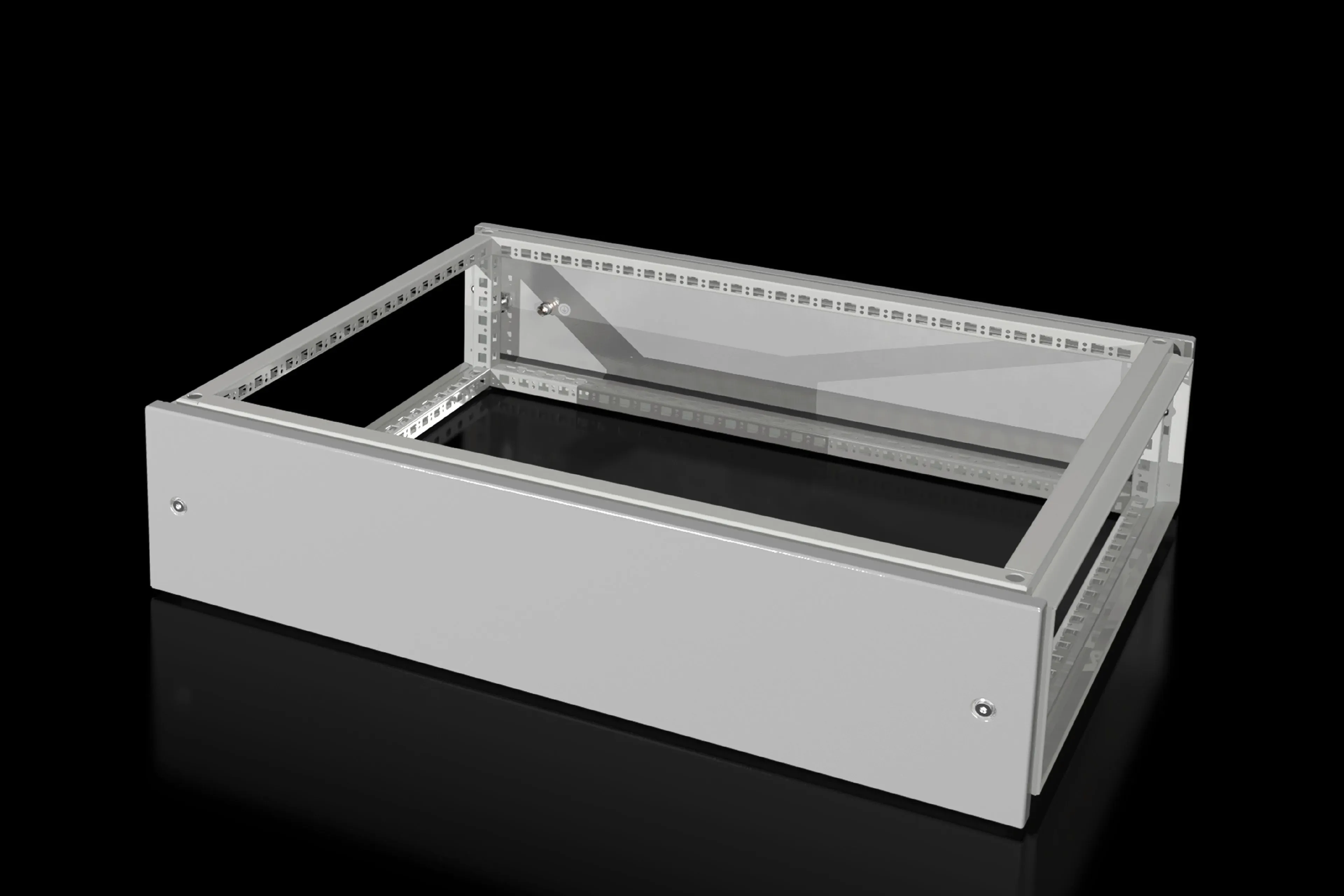

Rittal VX 8618.511 Top mounting module - IP 55
Part Number: 8618511
Manufacturer
Rittal
Part number
8618511
Alt Part Number
VX 8618.511
Quick Summary
Rittal VX 8618.511 top mounting module enables above-infeed cable access and busbar distribution across bayed enclosures. In busy control cabinet projects, tangled cable runs and difficult top-entry installations slow startups and inflate labor costs. With IP 55 protection and UL 50E Type 1 rating, it delivers reliable safety and regulatory compliance in demanding environments. Its durable sheet steel construction and standardized cover finish help streamline installation and support scalable enclosure layouts for growing automation projects. The product ships with a complete kit including frame module, 2 trim panels front/rear, 8 retainers with automatic potential equalisation, and assembly parts, reducing on-site sourcing and integration time. By enabling clean top-entry and modular expansion, it supports faster commissioning and safer, more maintainable electrical infrastructure.
Product Information
Extended Description
8618511 Rittal: VX Top mounting module, for WD: 800x600 mm
Article number
VX 8618.511
Product description
As a cable chamber for cable infeed from above or for power distribution with busbar systems across bayed enclosures. The cover plate supplied as standard is used to finish off at the top.
Material
Sheet steel, 1.5 mm
Surface finish
Spray-finished, textured paint
Colour
RAL 7035
Supply includes
Frame module | 2 trim panels front/rear | 8 retainers with automatic potential equalisation | Assembly parts
Dimensions
Height: 200 mm
IP protection category to IEC 60 529
IP 55
Type rating to UL 50E
Type 1
To fit
Enclosure type: VX | Width: = 800 mm | Depth: = 600 mm
Packs of
1 pc(s).
Weight/pack
12.7 kg
Customs tariff number
94039910
EAN
4028177957602
ETIM 9
EC000744
ECLASS 8.0
27182405
Product description
VX Top mounting module, for WD: 800x600 mm
Feature: Top mounting design enables cable chamber access from above and efficient power distribution via busbars across bayed VX enclosures. Business Impact: Reduces installation complexity, shortens wiring time, and improves overall cabinet cleanliness. Application: Ideal for WD 800x600 enclosures in automated lines requiring tidy cable management and scalable routing. Feature: 1.5 mm sheet steel with textured spray finish in RAL 7035. Business Impact: Delivers durable, corrosion-resistant housing that lowers maintenance and replacement costs. Application: Suitable for harsh plant environments where long-term enclosure performance matters. Feature: IP protection class IP 55 and UL 50E Type 1. Business Impact: Ensures regulatory compliance, dust and water ingress protection, and safer electrical distribution. Application: Use in manufacturing cells and distribution cabinets exposed to dust, splashes, or mild humidity. Feature: Supplied as a complete kit (frame module, front/rear trim panels, retainers with automatic potential equalisation, assembly parts). Business Impact: Reduces vendor coordination and installation time, accelerating time-to-value. Application: On-site assembly for rapid cabinet upgrades or new builds. Feature: Height 200 mm and fit for VX width 800 mm and depth 600 mm. Business Impact: Enables modular, scalable layouts with predictable fit and easy integration with existing VX enclosures. Application: Quick replacement or retrofit in standard bayed systems.
Get a Quick Quote for a Rittal 8618511
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8618511?
Enquire Now
FAQs
Installation starts with confirming WD 800x600 compatibility. Mount the frame module, attach the two front/rear trim panels, and secure with the eight retainers that include automatic potential equalisation. Complete with the provided assembly parts and verify alignment before applying the top cover plate to finish the installation.
Key specs include material of 1.5 mm sheet steel, spray-finished textured paint in RAL 7035, height of 200 mm, IP protection of 55, UL 50E Type 1, and a pack containing one frame module plus trim panels, retainers, and assembly parts. Fits enclosure type VX at 800 mm width and 600 mm depth.
Yes. The module is designed for cable infeed from above and power distribution with busbar systems across bayed enclosures, enabling neat routing and scalable electrical layouts within VX bays.
The unit carries IP 55 protection per IEC 60529 and UL 50E Type 1 rating, ensuring environmental protection and safety compliance for industrial electrical cabinets. It aligns with standard VX enclosure systems used in automation environments.
Durable sheet steel construction with a textured finish reduces wear over time, while the included kit and standardized design shorten assembly time. This translates to lower labor costs during upgrades and faster commissioning of new automation lines.
