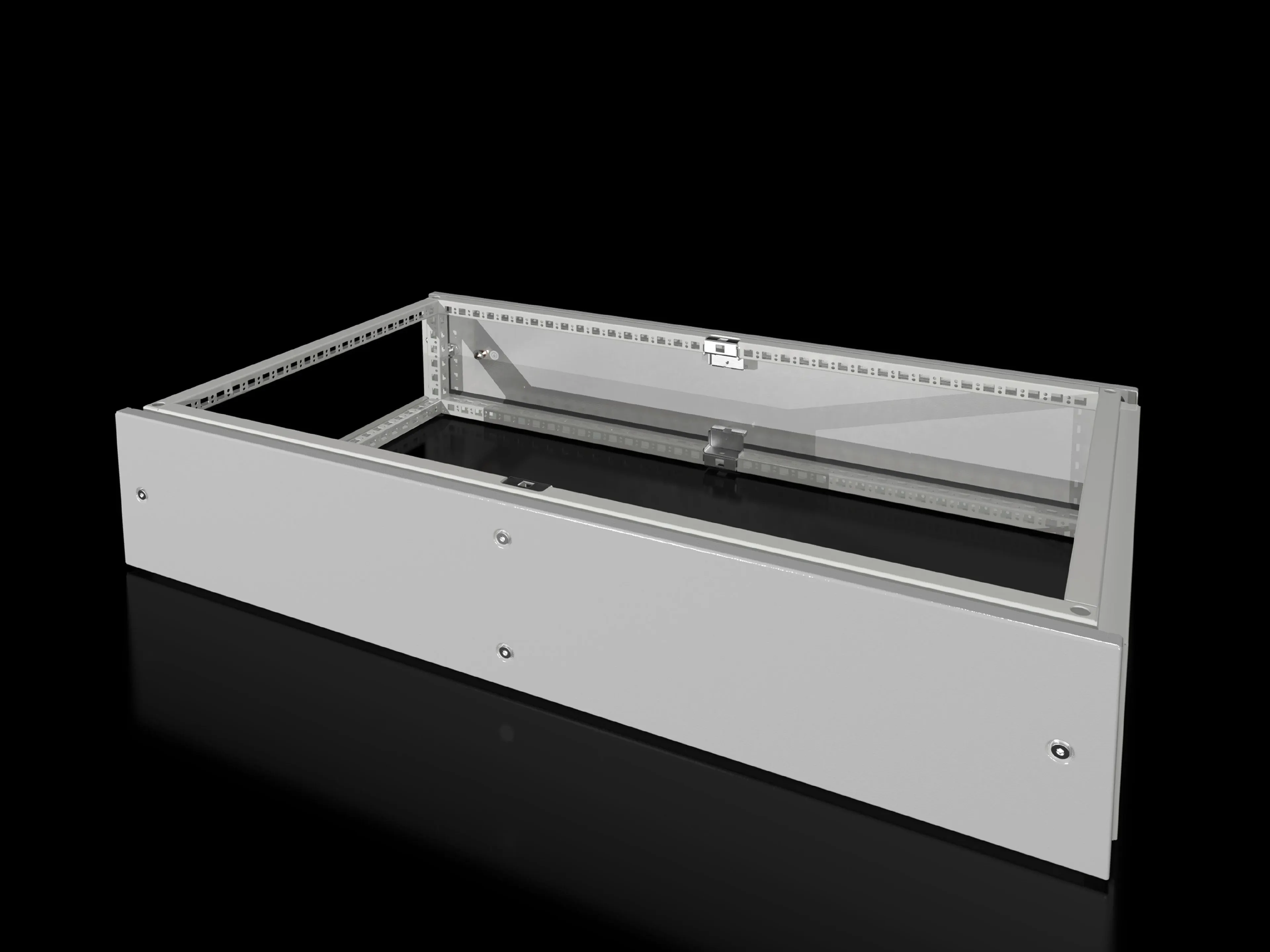

Rittal VX 8618.521 Top Mounting Module - IP55
Part Number: 8618521
Manufacturer
Rittal
Part number
8618521
Alt Part Number
VX 8618.521
Quick Summary
Rittal VX 8618.521 Top Mounting Module is a cable-chamber solution for top infeed and busbar distribution across VX enclosures. Engineers often struggle with neat cable routing, potential equalisation, and scalable layouts in bayed systems. With IP55 protection, UL 50E Type 1 ratings, and ETIM EC000744 classification, this module meets demanding factory standards. It also supports rapid installation, consistent color coding (RAL 7035), and seamless integration with VX frames, panels, and busbars. This reduces wiring errors, improves safety, and supports scalable automation projects for panel builders and integrators. Designed for reliable service in harsh manufacturing environments, it helps shorten commissioning and maintenance cycles.
Product Information
Extended Description
8618521 Rittal: VX Top mounting module, for WD: 1000x600 mm
Article number
VX 8618.521
Product description
As a cable chamber for cable infeed from above or for power distribution with busbar systems across bayed enclosures. The cover plate supplied as standard is used to finish off at the top.
Material
Sheet steel, 1.5 mm
Surface finish
Spray-finished, textured paint
Colour
RAL 7035
Supply includes
Frame module | 2 trim panels front/rear | 8 retainers with automatic potential equalisation | Assembly parts
Dimensions
Height: 200 mm
IP protection category to IEC 60 529
IP 55
Type rating to UL 50E
Type 1
To fit
Enclosure type: VX | Width: = 1,000 mm | Depth: = 600 mm
Packs of
1 pc(s).
Weight/pack
15.1 kg
Customs tariff number
94039910
EAN
4028177957596
ETIM 9
EC000744
ECLASS 8.0
27182405
Product description
VX Top mounting module, for WD: 1000x600 mm
Rugged sheet-steel construction at 1.5 mm thick with a textured spray finish in RAL 7035 delivers durable performance in busy factory environments. This combination resists corrosion and abrasion, maintaining enclosure integrity across bayed VX configurations. The result is a reliable cable chamber solution for top infeed and busbar distribution in industrial automation projects. Designed for precise fit and fast installation, VX 8618.521 aligns with VX enclosures at 1000 mm width and 600 mm depth with a 200 mm high profile. Standardized dimensions promote uniform bay layouts, reduce engineering time, and simplify multi-bay deployments. The included frame module, front/rear trim panels, retainers, and assembly parts support error-free assembly. IP55 protection and UL 50E Type 1 listings provide robust dust protection and electrical safety in harsh environments. This helps minimize field service interruptions, supports regulatory compliance, and improves uptime in manufacturing and process settings. The 200 mm height enables smooth top-entry cable routing without compromising enclosure access. Turnkey supply includes frame module, two trim panels (front and rear), eight retainers with automatic potential equalisation, and essential assembly parts. This reduces procurement complexity, speeds on-site installation, and ensures consistent grounding connections across bayed VX installations. Compatibility with busbar systems is maintained by standard mounting points and included hardware. Weight per pack is 15.1 kg and the packaging is a single unit, simplifying handling, logistics, and freight planning. The product ships in a consistent finish, aiding visual management and maintenance planning in industrial facilities. The individual module is designed for safe handling by a single technician. With its standard color, coating, and documented dimensions, the VX 8618.521 supports scalable growth of automation projects and reliable integration with busbar systems, frames, and panels. This alignment reduces total cost of ownership by shortening installation times and enabling faster project delivery.
Get a Quick Quote for a Rittal 8618521
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8618521?
Enquire Now
FAQs
Begin by aligning the frame module with the VX enclosure's mounting points, then attach the two front/rear trim panels and eight retainers with automatic potential equalisation. Use the included assembly parts to secure the top cover and ensure the bay is ready for cable infeed from above or busbar distribution. The provided hardware minimizes guesswork and speeds commissioning.
Key specs include material: sheet steel 1.5 mm, surface: spray-finished textured paint in RAL 7035, height: 200 mm, and fit: VX enclosure width 1000 mm, depth 600 mm. The unit carries IP55 protection and UL 50E Type 1 rating, making it suitable for industrial automation environments with reliable grounding and dust resistance.
Yes. The VX 8618.521 Top Mounting Module is designed for top-entry cable infeed and power distribution with busbar systems across bayed VX enclosures. Its dimensions and mounting compatibility support uniform busbar layouts while maintaining enclosure accessibility and safe wiring practices.
The unit features IP55 protection and UL 50E Type 1 listings. It also lists ETIM EC000744 and ECLASS 8.0 code 27182405, which support standardized data exchange and classification in industrial procurement and integration workflows.
The module offers a turnkey, plug‑and‑play installation with included frame, trim panels, and retainers, reducing installation time and field errors. Its standardized VX fit and robust protection minimize downtime, improve safety, and lower total cost of ownership for multi‑bay enclosure deployments in automation projects.
