Rittal VX 8618.802 VX Section - Flame-resistant PVC
Part Number: 8618802
Manufacturer
Rittal
Part number
8618802
Alt Part Number
VX 8618.802
Quick Summary
VX 8618.802 VX Section for cable entry enables direct, orderly cable routing to the gland plate in VX enclosures. This reduces bending radii and misalignment during mounting, delivering cleaner installations and fewer field adjustments. Engineers often face challenges with space constraints and seals that degrade under movement; this accessory addresses those issues with a plug-in design and foam sealing. While explicit CE, IP, or SIL certifications aren’t listed for this item, the section uses flame-resistant hard PVC, a PU foam seal, and is temperature resistant to +60 °C, aligning with ETIM EC000211 and ECLASS 27142421. The result is faster assembly, improved reliability, and scalable cable management for panel builders and integrators.
Product Information
Extended Description

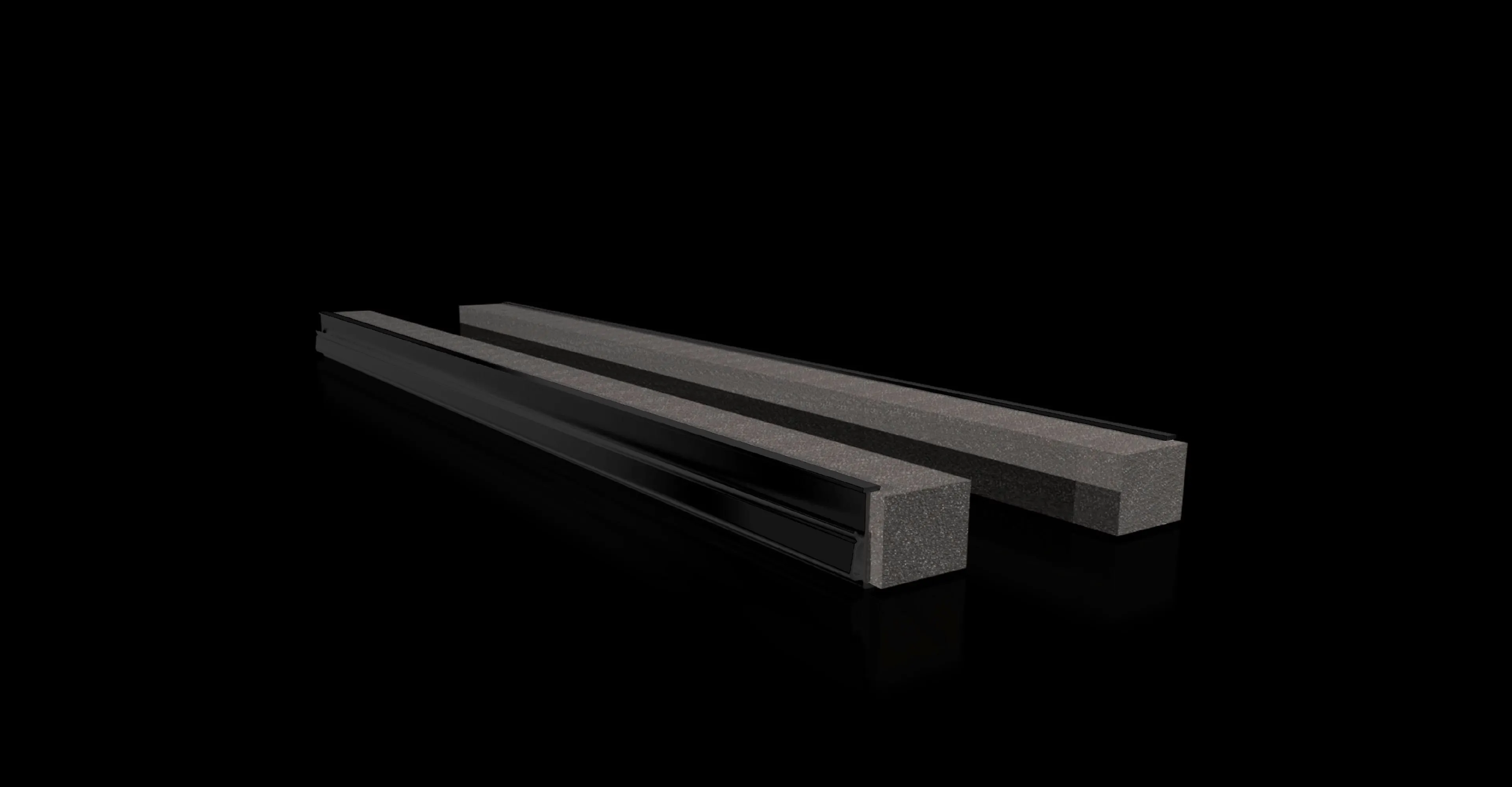

8618802 Rittal: VX Section for cable entry, centre, for W: 1000 mm
Article number
VX 8618.802
Benefits
Simple assembly
Applications
For top-mounting on gland plates.
Material
Hard PVC | Flame-resistant, self-extinguishing | Temperature resistant to +60 °C | Seal: PU foam | Cross-section: 30 x 25 mm
Supply includes
Plug-in sections, incl. foam rubber clamp strip
Note
You will need two pieces per cable entry point.
To fit
Enclosure type: VX: = 1,000 mm | Enclosure type: VX SE | Enclosure type: CX one-piece console
Packs of
4 pc(s).
Weight/pack
0.36 kg
Customs tariff number
39269097
EAN
4028177922761
ETIM 9
EC000211
ECLASS 8.0
27142421
Product description
VX Section for cable entry, centre, for W: 1000 mm
Feature: Direct mounting on gland plates using the VX section design. Business Impact: Enables immediate routing to a cable clamp rail with minimal bending radii, reducing installation time and risk of cable damage. Application: Top-mounting on gland plates in VX enclosures. Feature: Hard PVC with flame-resistant, self-extinguishing properties and a PU foam seal. Business Impact: Improves safety compliance and maintains seal integrity under temperature exposure up to +60 °C, supporting robust industrial operation. Application: Enclosure cable entry that requires reliable sealing in harsh environments. Feature: Supplied as plug-in sections with foam rubber clamp strip. Business Impact: Simplifies field assembly and ensures consistent cable support, cutting rework and downtime. Application: Modular installation at each entry point. Feature: Pack of 4 pieces per pack and a weight of 0.36 kg per pack. Business Impact: Logistics efficiency and predictable stocking for multi-entry enclosures, reducing per-entry costs. Application: Projects with multiple cable entries in VX, VX SE, and CX configurations. Feature: Compatibility with VX, VX SE, and CX enclosures as top-mounting on gland plates. Business Impact: Enhances design flexibility and reuse across different enclosure families, lowering total cost of ownership. Application: Industrial automation and electrical infrastructure installations.
Get a Quick Quote for a Rittal 8618802
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8618802?
Enquire Now
FAQs
Yes. The VX 8618.802 is designed for VX enclosure families and supports top-mounting on gland plates. It ships as plug-in sections with a foam clamp strip and is intended to be used with two pieces per cable entry point, ensuring precise alignment and a direct cable path to the cable clamp rail.
The section uses hard PVC that is flame-resistant and self-extinguishing, with a PU foam seal. It supports temperatures up to +60 °C and features a 30 × 25 mm cross-section to match standard cable entries, aligning with ETIM 9 EC000211 and ECLASS 8.0 27142421 identifiers.
It is best suited for top-mounting on gland plates within VX, VX SE, and CX enclosure configurations. It enables tidy, efficient cable entry routing and is particularly useful where space is constrained and quick installation is critical.
Explicit CE, IP, or SIL certifications are not listed in the provided data. The product does include flame resistance, a PU foam seal, and a +60 °C rating, and it references ETIM 9 EC000211 and ECLASS 27142421 for standardized classification.
Installation benefits include faster assembly due to plug-in sections and direct routing to the clamp rail, reducing field adjustments and potential cable damage. The pack size (4 pieces) and weight (0.36 kg per pack) support scalable deployments, while two pieces per entry point help ensure consistent spacing and long-term reliability.
