Rittal VX 8618.812 VX Section - Flame-Resistant PVC
Part Number: 8618812
Manufacturer
Rittal
Part number
8618812
Alt Part Number
VX 8618.812
Quick Summary
Rittal VX 8618.812 VX Section for cable entry, rear, helps organize wiring on 1000 mm enclosures. Engineers often struggle with messy cable routing and complex top-mounting in tight cabinet spaces; this module streamlines alignment, reduces installation time, and improves serviceability. Constructed from hard PVC that is flame-resistant and self-extinguishing, it withstands temperatures up to +60 °C and uses a PU foam seal for reliable ingress protection. Two-piece per entry point facilitates precise sealing, while packs of four pieces enable scalable coverage across multiple entry points, keeping inventory predictable. Designed to fit VX, VX SE, and CX enclosures, it supports modular, repeatable installations with straightforward maintenance and cost efficiency.
Product Information
Extended Description

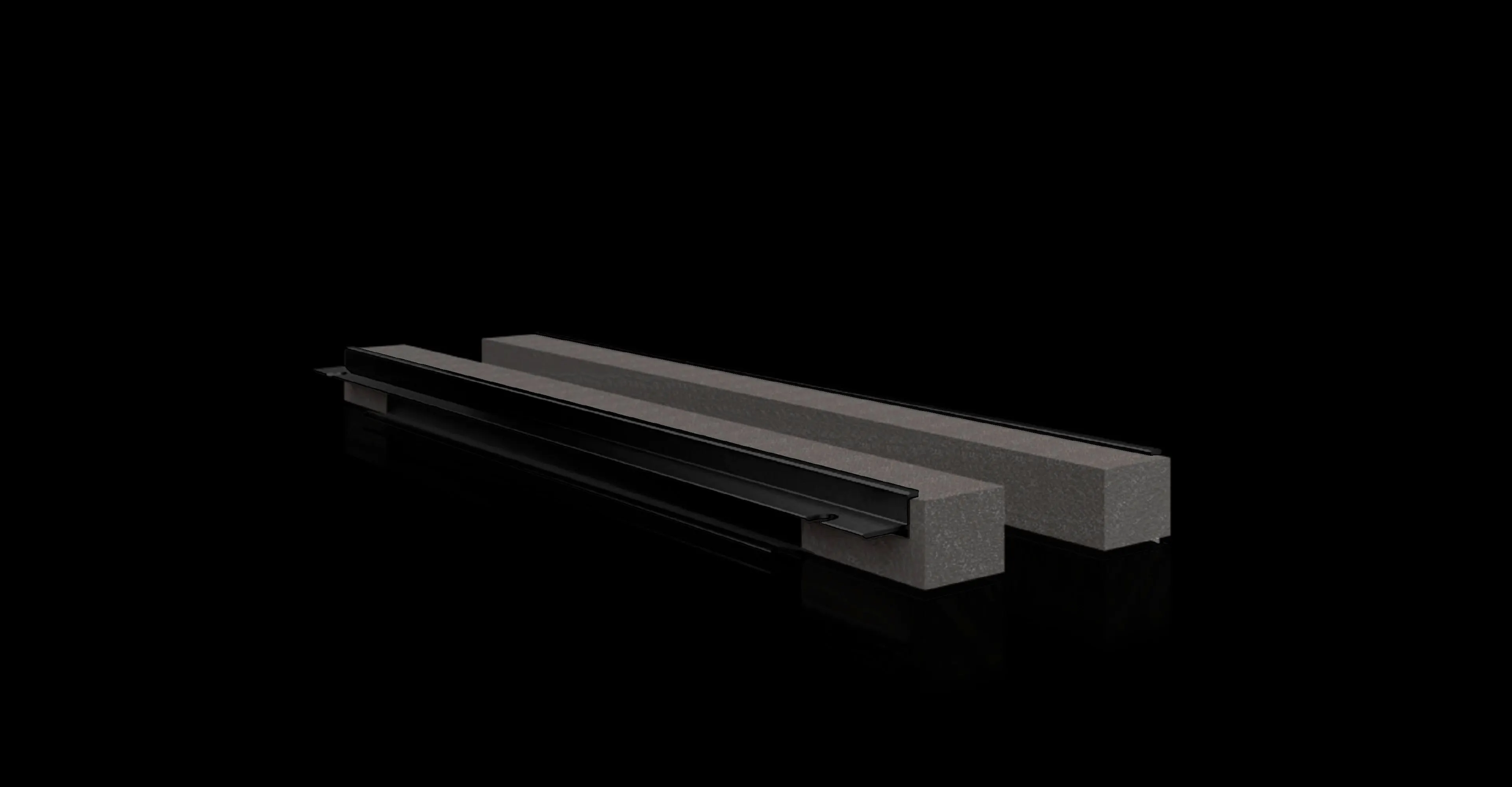

8618812 Rittal: VX Section for cable entry, rear, for W: 1000 mm
Article number
VX 8618.812
Product description
For top-mounting on the gland plate and enclosure frame.
Benefits
Simple assembly
Applications
For top-mounting on the gland plate and enclosure frame
Material
Hard PVC | Flame-resistant, self-extinguishing | Temperature resistant to +60 °C | Seal: PU foam | Cross-section: 30 x 25 mm
Supply includes
Plug-in sections, incl. foam rubber clamp strip
Note
You will need two pieces per cable entry point.
To fit
Enclosure type: VX: = 1,000 mm | Enclosure type: VX SE | Enclosure type: CX one-piece console
Packs of
4 pc(s).
Weight/pack
0.36 kg
Customs tariff number
39269097
EAN
4028177922815
ETIM 9
EC002624
ECLASS 8.0
27189265
Product description
VX Section for cable entry, rear, for W: 1000 mm
Feature → Business Impact → Application: Top-mounting on gland plates and enclosure frames enables fast setup and reduces alignment errors, accelerating panel wiring in VX enclosure systems. Application: Ideal for rear cable entry configurations on 1000 mm wide VX enclosures, VX SE, and CX consoles. Feature → Business Impact → Application: Hard PVC that is flame-resistant and self-extinguishing plus PU foam seal delivers reliable ingress protection and temperature resistance up to +60 °C, extending enclosure longevity and reducing service calls. Application: Suitable for harsh industrial environments where cable integrity matters during lifecycle. Feature → Business Impact → Application: Supply includes plug-in sections and foam rubber clamp strips, with two pieces per entry point, simplifying field assembly and ensuring consistent sealing. Application: Supports modular expansion and standardized maintenance across multiple panels. Feature → Business Impact → Application: Packs of four pieces at 0.36 kg per pack enable scalable coverage with low total cost of ownership. Application: Enables rapid deployment across large control cabinets with minimal handling. Feature → Business Impact → Application: Compatibility with VX, VX SE, and CX enclosures allows reuse of existing mounting hardware and reduces spare parts variety. Application: Streamlines procurement and inventory management for OEMs and integrators.
Get a Quick Quote for a Rittal 8618812
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8618812?
Enquire Now
FAQs
The VX 8618.812 is designed to fit VX enclosures with 1,000 mm width, as well as VX SE and CX one-piece console configurations. Its top-mounting design aligns with gland plate and enclosure frame mounting points, enabling a streamlined cabling layout and consistent assembly across VX family cabinets.
You need two pieces per cable entry point. The kit includes plug-in sections and a foam rubber clamp strip to ensure a tight seal around each entry, plus compatibility with the standard VX/CX enclosure interfaces for repeatable installations.
The section is molded from hard PVC that is flame-resistant and self-extinguishing, with a temperature rating up to +60 °C. It uses a PU foam seal to punch through gaps and maintain enclosure integrity during operation in typical industrial environments.
The part features a top-mounting approach on gland plates and enclosure frames, enabling quick alignment and simple assembly. It supports rear-entry configurations, reducing cabling complexity and downtime while maintaining a neat, accessible wiring layout inside VX, VX SE, and CX enclosures.
The VX 8618.812 is cataloged with ETIM 9 EC002624 and ECLASS 8.0 27189265 classifications, and it carries the EAN 4028177922815. These references support accurate procurement, inventory management, and compliance cross-checks during purchasing and installation.
