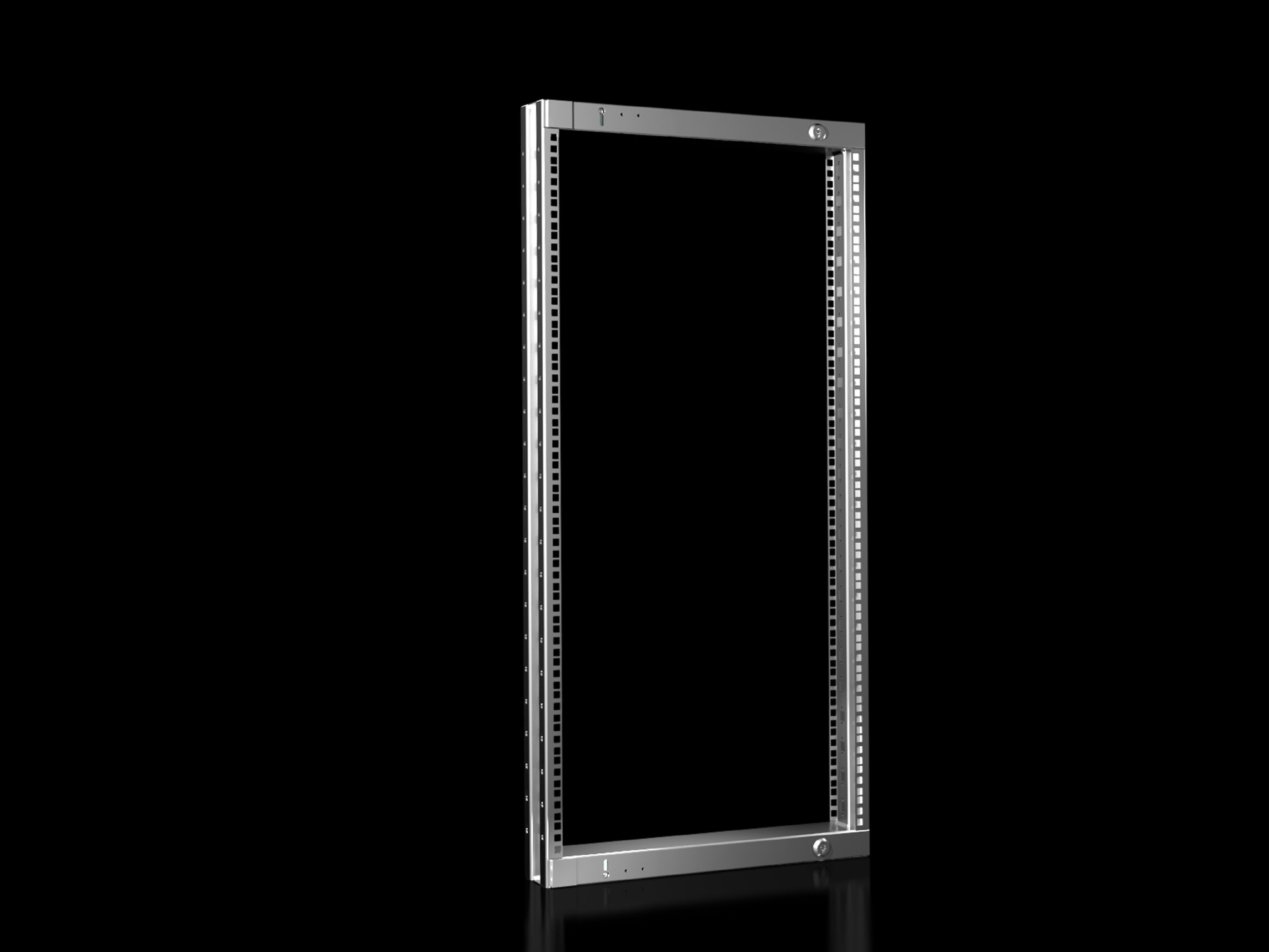

Rittal 8619010 VX Swing Frame - Large 19" Mounting, 22U

Feature → Business Impact → Application: The VX Swing Frame provides a 600 mm wide frame that fits 482.6 mm (19") equipment and supports up to 22 U of mounting space. This precise sizing reduces misalignment during retrofits, improves fit in existing enclosures, and accelerates commissioning for new automation lines. In practice, engineers can re-use existing installation kits and minimize cabinet downtime while maximizing usable rack space for controls and I/O. Application: new or upgraded 19-inch equipment in 600 mm wide enclosures. Feature → Business Impact → Application: Constructed from sheet steel with a zinc-plated frame and spray-finished trim panel, the setup delivers robust mechanical integrity and corrosion resistance in factory environments. This translates to lower maintenance costs, extended service life, and reliable performance under vibration and thermal cycling. Application: harsh manufacturing floors and panel rooms where durability matters. Feature → Business Impact → Application: The product ships with a lock system and a 130° hinge, enabling secure access and safe operation during maintenance. The design reduces the risk of accidental door opening, accelerates service routines, and improves operator safety. Application: controlled access enclosures and service bays. Feature → Business Impact → Application: Assembly instructions accommodate various mounting situations with punched sections (23 x 64 mm) and required swing frame stay, delivering installation flexibility and faster project timelines. Application: retrofits in constrained spaces or non-standard installation kits. Feature → Business Impact → Application: The unit is specified for a width of 600 mm, height minimum of 1200 mm, and 22 U capacity per pack, with 1 pc per pack and a per-pack weight of 9.21 kg, enabling precise project planning, easier logistics, and predictable lead times. Application: module upgrades and new panel builds in 19-inch control cabinets.
