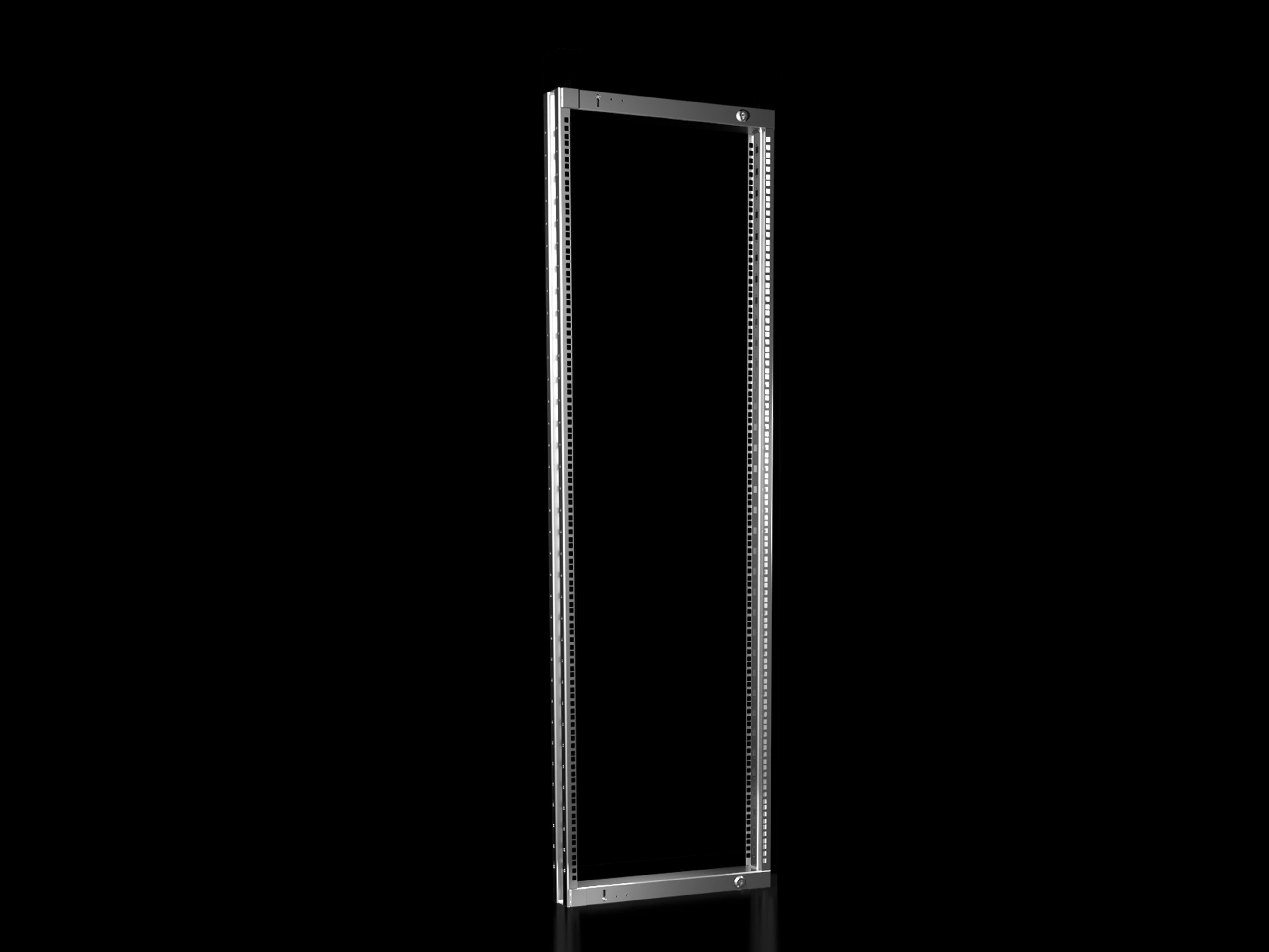

Rittal VX 8619.012 Swing Frame - Without Trim Panel
Part Number: 8619012
Quick Summary
Rittal VX 8619.012 Swing Frame is a mounting solution for 19-inch equipment in 600 mm wide enclosures. A common industry challenge is securing heavy panels while preserving door clearance and service access; this frame addresses that with a robust, straightforward design. It carries CE-related European compliance considerations and is intended to integrate with standard installation kits, offering reliable performance in regulated environments. While the enclosure governs some IP aspects, the frame remains a durable backbone you can trust for consistent, scalable installations. Leveraging the included lock system and 130° hinge, it supports faster assembly and easier maintenance, delivering measurable business value through reduced downtime and improved panel accessibility.
Product Information
Extended Description
8619012 Rittal: VX Swing frame, large, without trim panel, for W: 600 mm, for min. enclosure height: 1800 mm, 35 U
Article number
VX 8619.012
Design
without trim panel
Product description
For mounting 482.6 mm (19") equipment.
Material
Sheet steel
Surface finish
Frame: Zinc-plated | Trim panel: Spray-finished
Colour
Trim panel: RAL 7035
Supply includes
Lock system, 130° hinge | Parts for attaching to the installation kit
Assembly instruction
Depending on the mounting situation, punched sections with mounting flanges 23 x 64 mm are required
Note
The swing frame stay is required to lock the open swing frame
To fit
Width: = 600 mm | Height: ≥ 1,800 mm
Units
35 U
Packs of
1 pc(s).
Weight/pack
12.6 kg
Customs tariff number
94039910
EAN
4028177920446
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
VX Swing frame, large, without trim panel, for W: 600 mm, for min. enclosure height: 1800 mm, 35 U
Feature -> Business Impact -> Application: The VX 8619.012 Swing Frame provides a large, 35U mounting option for 482.6 mm (19”) equipment in a 600 mm wide footprint, enabling compact, standardized front-mount configurations that reduce installation time and back-panel interference in busy control rooms. Benefit: Faster, error-free assembly with predictable alignment, improving first-pass commissioning on automation lines. Application: Ideal for machine builders and panel shops needing repeatable 19” equipment mounting with clean door clearance. Feature -> Business Impact -> Application: The frame is made from sheet steel with a zinc-plated finish for long-term durability, resisting corrosion in harsh industrial environments. Benefit: Lower maintenance costs and longer service life in manufacturing floors and data centers. Application: Suitable for high-use installations where frontal access is frequent and reliability matters. Feature -> Business Impact -> Application: Supplied with a lock system and a 130° hinge plus parts for attaching to the installation kit, simplifying secure access and service workflows. Benefit: Reduces service time during maintenance windows and minimizes risk of unauthorized access. Application: Works with standard installation kits across Rittal enclosures. Feature -> Business Impact -> Application: Assembly instructions indicate punched sections with mounting flanges (23 x 64 mm) required for certain mounting situations. Benefit: Clear guidance minimizes field rework and accelerates on-site configuration. Application: Compatible with various mounting scenarios encountered in control panels and automation racks. Feature -> Business Impact -> Application: Unit supports 1 pack per order at 12.6 kg per pack, enabling manageable handling and straightforward logistics. Benefit: Easier shipping, handling, and installation planning for project teams. Application: Useful for modular data/comms cabinets and machine enclosures where space and weight constraints are critical.
