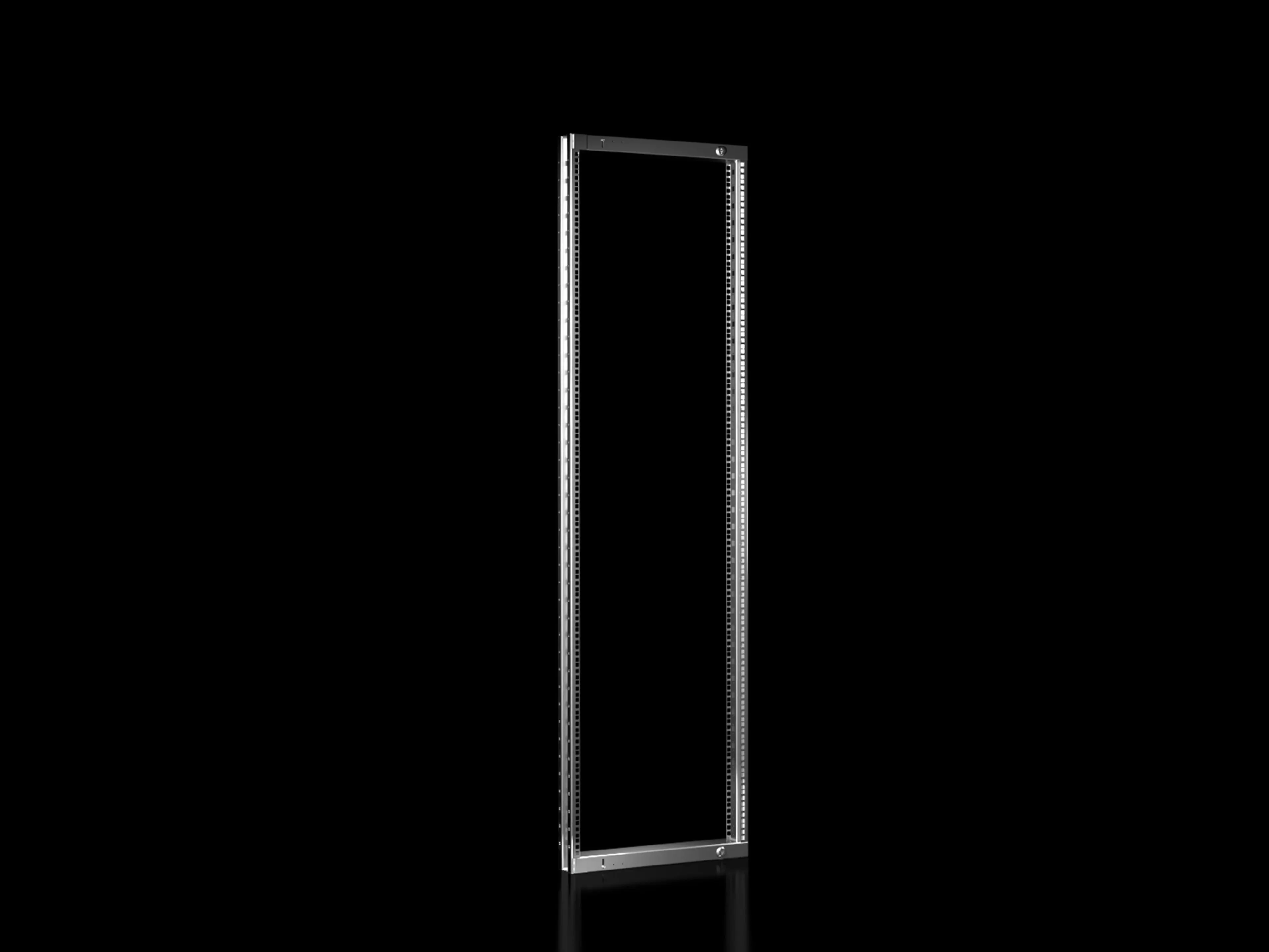

Rittal VX 8619.013 Swing Frame - 40 U, 600 mm W
Part Number: 8619013
Quick Summary
VX 8619.013 Swing frame provides robust mounting for 19” equipment within 600 mm wide enclosures. This solution addresses the common challenge of securely supporting heavy, frequently accessed panels in tight industrial spaces. While CE marking and IP-related requirements vary by region, CE-compliance, IP ratings, and SIL safety standards are typical touchpoints engineers evaluate for rugged industrial applications. For teams focusing on uptime and maintainability, this frame offers reliable locking, straightforward installation, and compatibility with installation kits—combining mechanical reliability with installation efficiency to support lean maintenance practices and fast service turnarounds.
Product Information
Extended Description
8619013 Rittal: VX Swing frame, large, without trim panel, for W: 600 mm, for min. enclosure height: 2000 mm, 40 U
Article number
VX 8619.013
Design
without trim panel
Product description
For mounting 482.6 mm (19") equipment.
Material
Sheet steel
Surface finish
Frame: Zinc-plated | Trim panel: Spray-finished
Colour
Trim panel: RAL 7035
Supply includes
Lock system, 130° hinge | Parts for attaching to the installation kit
Assembly instruction
Depending on the mounting situation, punched sections with mounting flanges 23 x 64 mm are required
Note
The swing frame stay is required to lock the open swing frame
To fit
Width: = 600 mm | Height: ≥ 2,000 mm
Units
40 U
Packs of
1 pc(s).
Weight/pack
12.9 kg
Customs tariff number
94039910
EAN
4028177920439
ETIM 7.0
EC002620
ECLASS 8.0
27189261
Product description
VX Swing frame, large, without trim panel, for W: 600 mm, for min. enclosure height: 2000 mm, 40 U
Feature: Large swing frame designed for 19 inch equipment with a 600 mm width. Benefit: Enables secure, accessible mounting of standard 482.6 mm (19”) devices while maintaining enclosure footprint efficiency. Application: 19” control panels in compact 600 mm wide VX enclosures, improving uptime by reducing removal time during maintenance. Feature: Frame constructed from sheet steel with zinc-plated finish. Benefit: Enhances durability and corrosion resistance in demanding industrial environments, lowering lifecycle costs. Application: Factory floors, outdoors, and environments with incidental moisture exposure where frame longevity matters. Feature: Surface finish includes trim panel with spray finish and a trim panel color of RAL 7035. Benefit: Consistent aesthetics and improved enclosure visibility, aiding quick component identification during audits. Application: Machine centers and production lines requiring standardized enclosure appearance. Feature: 40 U unit capacity and minimum enclosure height of 2000 mm. Benefit: Supports full-height equipment stacks without reconfiguration, optimizing cabinet space planning. Application: Data/automation cabinets for complex control architectures in mid-to-large installations. Feature: Includes lock system and 130° hinge; assembly requires mounting flanges 23 x 64 mm. Benefit: Quick, tool-friendly access with secure latching; predictable installation steps minimize field errors. Application: New builds and retrofit projects where reliable door operation is essential. Feature: Weight per pack 12.9 kg; packs come as 1 pc. each. Benefit: Manageable handling for single technicians, simplifying site logistics. Application: On-site installations where crane access is limited or manual handling flexibility is needed. Feature: Swivel stay note: The swing frame stay is required to lock the open swing frame. Benefit: Clear hardware requirement reduces installation calls and misassemblies. Application: On-site commissioning and maintenance workflows requiring secure access during service. Feature: Includes ongoing compatibility with installation kit and mounting options. Benefit: Streamlined retrofits and future-proofing when expanding 19” equipment inventories. Application: Growth-ready electrical rooms and expansion projects in manufacturing facilities.
Get a Quick Quote for a Rittal 8619013
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8619013?
Enquire Now
FAQs
The VX 8619.013 supports equipment mounted on a 482.6 mm (19”) format within a 600 mm wide swing frame. It is designed for a minimum enclosure height of 2000 mm and a total capacity of 40 U. This combination enables efficient stacking of standard 19” modules while preserving front access and cable routing.
Installation integrates with the installation kit through included parts for attaching the frame to mounting kits and punched sections measuring 23 x 64 mm. The design emphasizes straightforward assembly, reducing field engineering time and ensuring precise alignment of 19” equipment within the 600 mm wide frame.
Yes. With 40 U capacity and a robust sheet steel frame, the VX 8619.013 is well-suited for high-availability environments where reliable service access and durable construction are essential. The 130° hinge enhances accessibility during maintenance, supporting efficient fault isolation and faster repair cycles.
The frame includes a lock system and a 130° hinge to secure access while enabling generous swing range for servicing. Note that the swing frame stay is required to lock the open swing frame, ensuring safe, unattended operation when panels are opened for inspections or maintenance.
Maintenance considerations include inspecting the zinc-plated frame surface for signs of corrosion and ensuring trim panel spray finish remains intact for protection. Compatibility notes emphasize alignment with installation kit components and the need for mounting flanges sized 23 x 64 mm, which reduces retrofit risk and supports expansion as equipment inventories grow.
