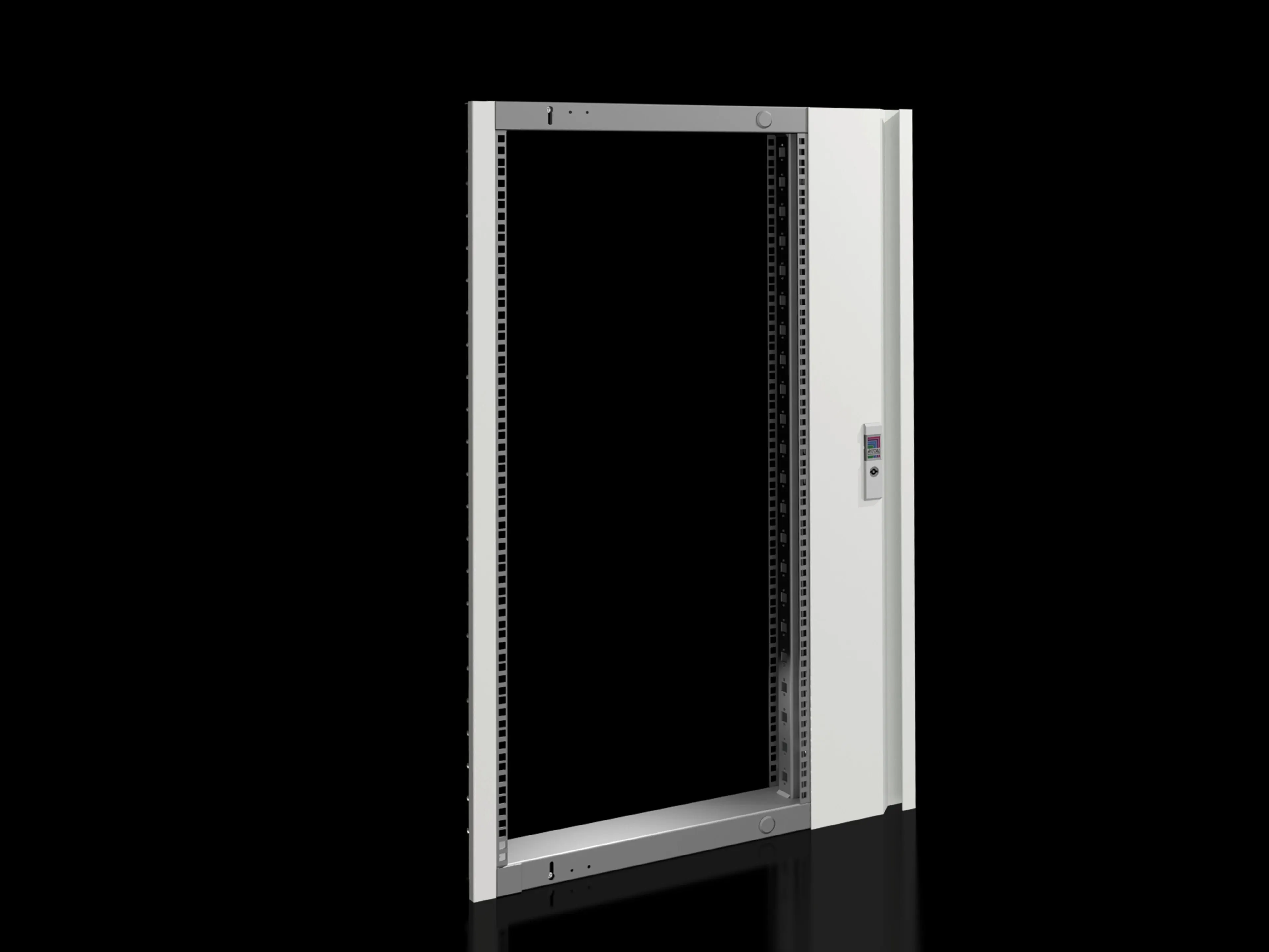

Rittal VX 8619.020 Swing Frame for 482.6 mm - 22 U
Part Number: 8619020
Quick Summary
Rittal VX 8619.020 Swing Frame is a robust mounting solution for 19-inch equipment in 800 mm enclosures. Too often installers wrestle with misalignment, insecure mounting, and limited access as cabinets swing open. It aligns with ETIM 9 EC002620 and ECLASS 8.0 27189261, supporting standardized parts designation and seamless procurement. With a zinc-plated frame and spray-finished trim panel, it delivers durable operation in demanding environments, while the 22 U capacity and 800 mm width optimize space and serviceability. Designed for mounting 482.6 mm (19") equipment and compatible with the installation kit, it helps reduce installation time and downtime while improving reliability.
Product Information
Extended Description
8619020 Rittal: VX Swing frame, large, trim panel on one side, for W: 800 mm, for min. enclosure height: 1200 mm, 22 U
Article number
VX 8619.020
Design
Trim panel on one side
Product description
For mounting 482.6 mm (19") equipment.
Material
Sheet steel
Surface finish
Frame: Zinc-plated | Trim panel: Spray-finished
Colour
Trim panel: RAL 7035
Supply includes
Lock system, 130° hinge | Parts for attaching to the installation kit
Assembly instruction
Depending on the mounting situation, punched sections with mounting flanges 23 x 64 mm are required
Note
The swing frame stay is required to lock the open swing frame
To fit
Width: = 800 mm | Height: ≥ 1,200 mm
Units
22 U
Packs of
1 pc(s).
Weight/pack
13.1 kg
Customs tariff number
94039910
EAN
4028177920415
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
VX Swing frame, large, trim panel on one side, for W: 800 mm, for min. enclosure height: 1200 mm, 22 U
Feature: 800 mm wide frame with a 22 U internal capacity and a trim panel on one side. Business Impact: Maximizes mounting density for 19-inch equipment while preserving easy access during maintenance. Application: Ideal for standard 800 mm wide enclosures in control panels and machine cabinets. Feature: Sheet steel construction with a zinc-plated frame and spray-finished trim panel in RAL 7035. Business Impact: Delivers long wear, corrosion resistance, and consistent aesthetics in harsh industrial environments. Application: Suitable for factory floors, outdoor installations, and high-vibration environments. Feature: Lock system with 130° hinge and parts for attaching to the installation kit; assembly instructions note punched sections 23 x 64 mm. Business Impact: Reduces installation time and improves field reliability; minimizes misalignment during swing. Application: Retrofit projects and new build-outs with standard installation kits. Feature: Designed to fit width 800 mm and height ≥ 1,200 mm (22 U). Business Impact: Ensures compatibility with common cabinet footprints and scalable infrastructure. Application: Industrial control cabinets and process automation enclosures. Feature: Packs of 1 pc and weight per pack 13.1 kg. Business Impact: Streamlines shipping, handling, and on-site logistics; supports modular assembly strategies. Application: Prefabricated assemblies and multi-cabinet installations in production lines.
Get a Quick Quote for a Rittal 8619020
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8619020?
Enquire Now
FAQs
The VX 8619.020 is designed to mount 482.6 mm (19") equipment in 800 mm wide enclosures. It ships with a lock system and parts to attach to the installation kit, and it supports punched sections 23 x 64 mm as required. Ideal for retrofit projects or new builds that use standard 19" equipment and installation kits.
Key features include a zinc-plated steel frame for corrosion resistance, a spray-finished trim panel for durability, and a 130° hinge with a lock system to securely hold the frame open. Together, these reduce misalignment during access, minimize maintenance interruptions, and enhance long-term reliability in demanding environments.
This frame is ideal for industrial automation applications, machine building, and control cabinets requiring reliable mounting of 19" equipment. Its 22 U capacity and 800 mm width align with standard enclosure footprints used in manufacturing, process control, and packaging lines, delivering scalable space for instrument panels and I/O modules.
The frame aligns with ETIM 9 EC002620 and ECLASS 8.0 27189261 classifications, supporting standardized procurement and interoperability in supply chains. While not listed as CE or IP certifications, these classifications help ensure consistent part matching and documentation in industrial procurement.
Durable sheet steel with a zinc-plated frame and spray-finished trim panel extends service life in demanding environments, reducing replacement cycles. The integrated lock system and installation-kit compatibility shorten commissioning and maintenance windows, lowering on-site labor costs and increasing overall equipment availability.
