Rittal 8619021 VX Swing Frame - Trim Panel On One Side
Part Number: 8619021
Quick Summary
Rittal 8619021 VX Swing Frame is designed to mount 482.6 mm (19") equipment in 800 mm-wide enclosures, providing secure, accessible front access for service. In busy control cabinets and automation lines, precise alignment and rapid installation are common bottlenecks that drive delays and maintenance costs. It aligns with ETIM 9 EC002620 and ECLASS 8.0 27189261, while a zinc-plated frame and spray-finished trim panel deliver durable corrosion resistance. With 31 U capacity and a minimum 1,600 mm enclosure height, it supports scalable layouts and minimizes manual handling. The included lock system and 130° hinge, plus installation-kit attachments, reduce commissioning time and improve overall reliability in industrial automation.
Product Information
Extended Description

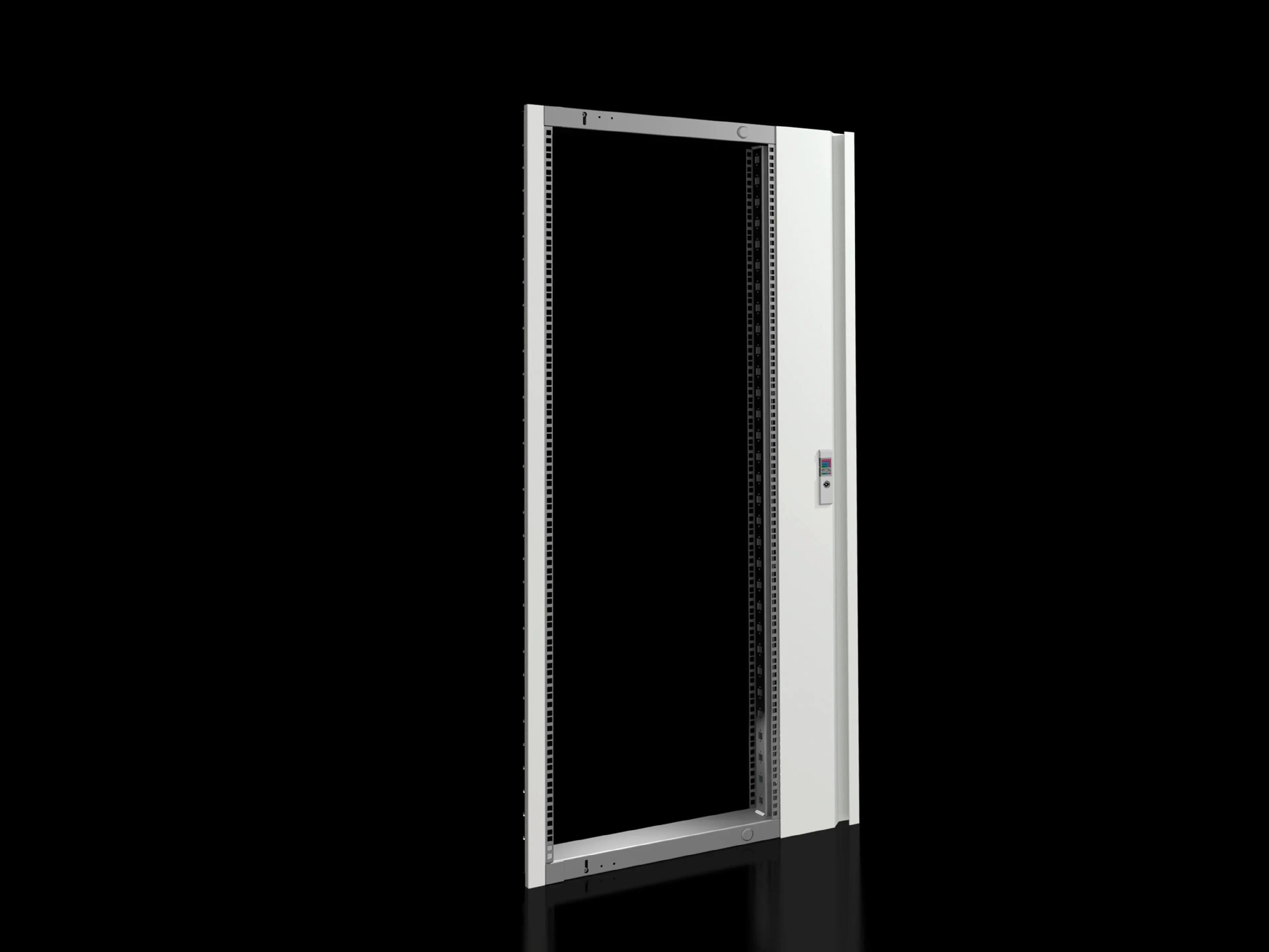

8619021 Rittal: VX Swing frame, large, trim panel on one side, for W: 800 mm, for min. enclosure height: 1600 mm, 31 U
Article number
VX 8619.021
Design
Trim panel on one side
Product description
For mounting 482.6 mm (19") equipment.
Material
Sheet steel
Surface finish
Frame: Zinc-plated | Trim panel: Spray-finished
Colour
Trim panel: RAL 7035
Supply includes
Lock system, 130° hinge | Parts for attaching to the installation kit
Assembly instruction
Depending on the mounting situation, punched sections with mounting flanges 23 x 64 mm are required
Note
The swing frame stay is required to lock the open swing frame
To fit
Width: = 800 mm | Height: ≥ 1,600 mm
Units
31 U
Packs of
1 pc(s).
Weight/pack
17.4 kg
Customs tariff number
94039910
EAN
4028177920408
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
VX Swing frame, large, trim panel on one side, for W: 800 mm, for min. enclosure height: 1600 mm, 31 U
VX Swing frame provides a robust mounting backbone for 19-inch equipment, enabling secure, front-accessible installations that streamline maintenance and upgrades. Feature → Business Impact → Application: The large frame width of 800 mm supports a wide 482.6 mm (19") equipment footprint, which translates to faster equipment replacement and simplified cable management in machine building and control panels. This directly reduces downtime and increases line uptime in production lines. Feature → High-durability construction → Improved lifecycle costs: Sheet steel construction with a zinc-plated frame and spray-finished trim panel delivers corrosion resistance in harsh environments, lowering ongoing maintenance costs and extending enclosure life. Application: Automotive, food & beverage, and heavy industry enclosures with demanding operating conditions.Feature → Quick access hardware → Faster service → Reduced labor: The 130° hinge and integrated lock system allow one-person front-access servicing, minimizing QA hold times during changeovers. Application: Retrofit projects and upgrades in existing 19" racks. Feature → Installation-ready design → Lower project risk: Parts for attaching to the installation kit and clear assembly instructions shorten installation planning and prevent misassembly. Application: New builds and refurbishments in plant automation. Feature → Clear fitment guidance → Consistent layouts: To fit, width 800 mm and height ≥ 1,600 mm ensures standardized configurations across multiple enclosures, supporting scalable, repeatable installations in multi-line deployments.
