Rittal VX 8619.022 Swing Frame - 35 U
Part Number: 8619022
Quick Summary
Rittal VX 8619.022 Swing Frame is designed for mounting 482.6 mm (19") equipment inside 800 mm wide enclosures. When space planning and maintenance access are tight, this frame’s swing action and trim panel on one side streamline servicing without compromising security. Common certifications to verify in project scope include CE marking, IP protection levels, and SIL compatibility; always consult the official product docs to confirm exact marks for your region. Together with the supplied lock system and installation kit, the VX frame delivers durable sheet steel construction and a reliable mounting solution that reduces downtime and simplifies spares management.
Product Information
Extended Description

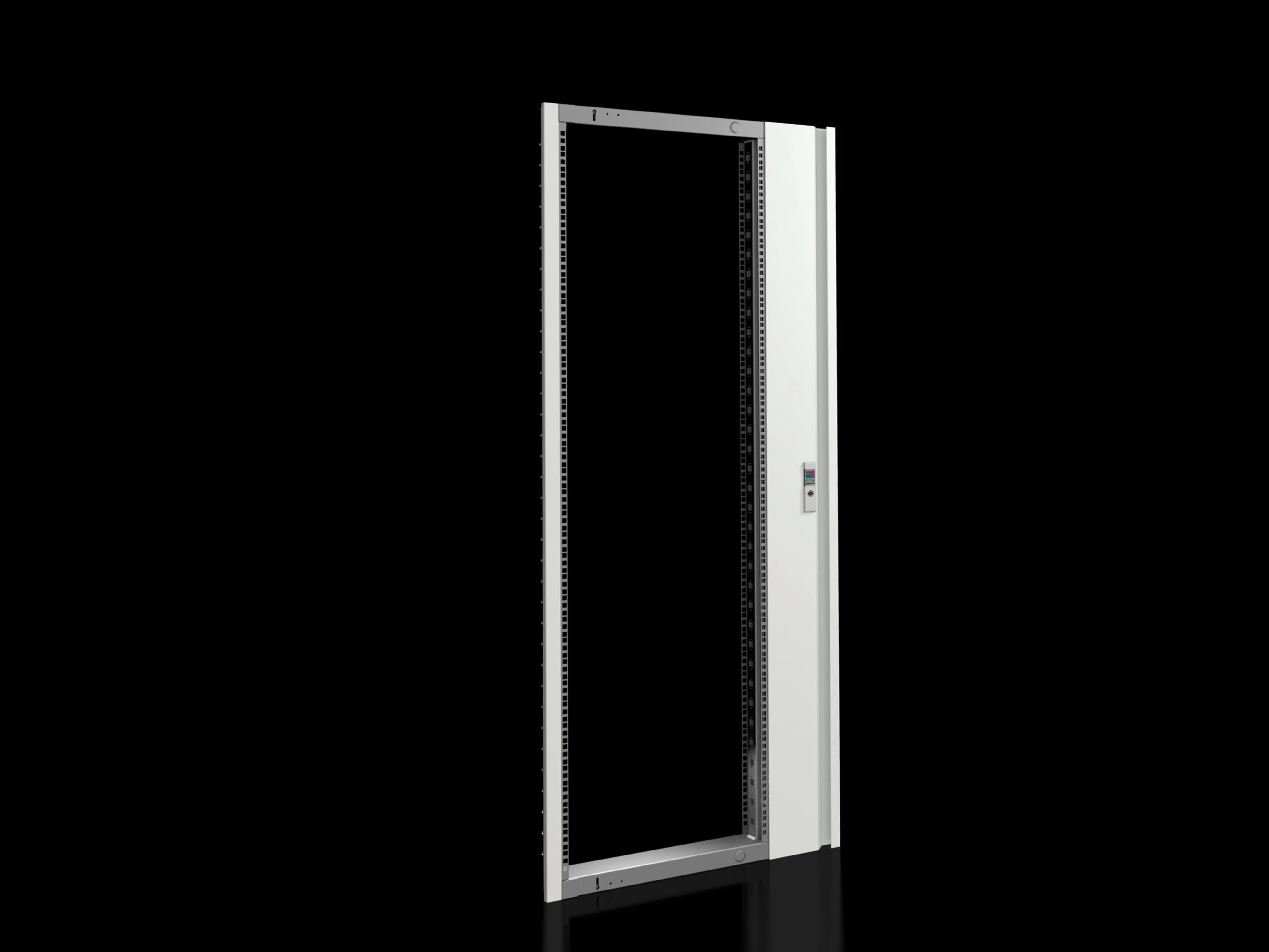

8619022 Rittal: VX Swing frame, large, trim panel on one side, for W: 800 mm, for min. enclosure height: 1800 mm, 35 U
Article number
VX 8619.022
Design
Trim panel on one side
Product description
For mounting 482.6 mm (19") equipment.
Material
Sheet steel
Surface finish
Frame: Zinc-plated | Trim panel: Spray-finished
Colour
Trim panel: RAL 7035
Supply includes
Lock system, 130° hinge | Parts for attaching to the installation kit
Assembly instruction
Depending on the mounting situation, punched sections with mounting flanges 23 x 64 mm are required
Note
The swing frame stay is required to lock the open swing frame
To fit
Width: = 800 mm | Height: ≥ 1,800 mm
Units
35 U
Packs of
1 pc(s).
Weight/pack
19.4 kg
Customs tariff number
94039910
EAN
4028177920392
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
VX Swing frame, large, trim panel on one side, for W: 800 mm, for min. enclosure height: 1800 mm, 35 U
The VX 8619.022 Swing Frame is engineered for efficient space utilization. Its wide 800 mm frame supports 482.6 mm (19") equipment within a 35 U footprint, enabling higher density layouts in standard enclosures and simplifying front-access maintenance during line changes. The design includes a single-sided trim panel, which reduces clutter while maintaining a clean, service-friendly appearance and easier panel modifications in evolving automation layouts. Built from sheet steel with a zinc-plated frame and a spray-finished trim panel, it delivers robust corrosion resistance for harsh manufacturing environments, reducing repainting and upkeep over the life of the cabinet. The included lock system and 130° hinge improve security and accessibility, allowing safe, wide cabinet openings for component swaps and routine checks. Compatibility with the installation kit and clear assembly instructions shorten on-site installation time and minimize field engineering, helping projects stay on schedule and within budget. Finally, the note that the swing frame stay is required to lock the frame open is a practical safeguard for safe operation in constrained spaces commonly found on production floors.
