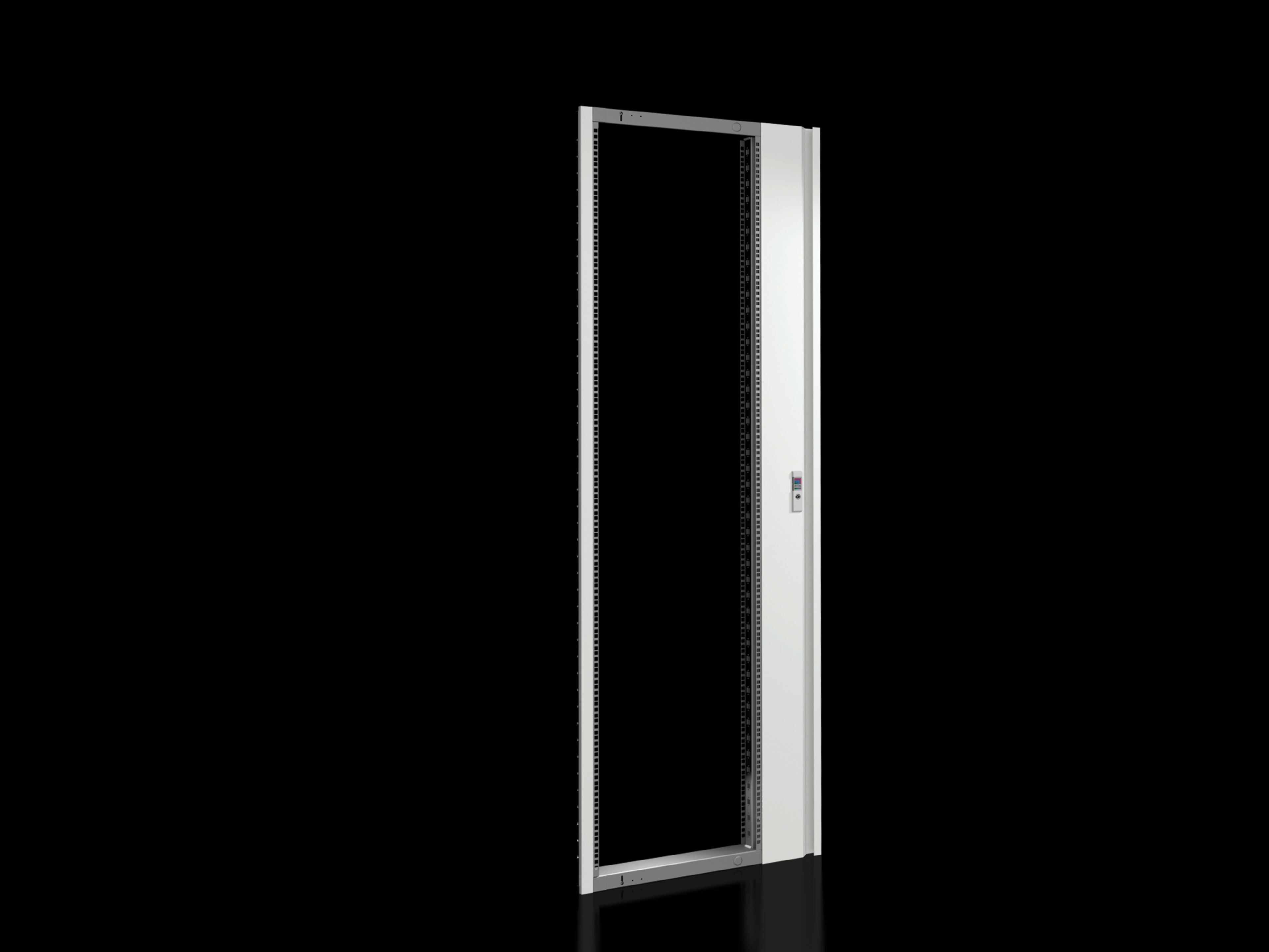

Rittal VX 8619.023 VX Swing frame - 40 U
Part Number: 8619023
Quick Summary
VX Swing frame is a mounting solution for 482.6 mm (19”) equipment. This frame provides a practical, space-efficient method to mount 19" devices in tall enclosures, enabling quick front access and streamlined cabling. In practice, engineers often grapple with balancing maximal equipment density against serviceability; this frame design mitigates that challenge by delivering a stable 40 U mounting space with a clear, accessible swing door. Certifications and standards relevant to enclosure components typically include CE marking for European compliance and protection concepts aligned with IP-rated enclosures, along with industry classifications such as ETIM and ECLASS. For teams targeting fast deployment and reliable longevity, the VX 8619.023 offers predictable compatibility, a robust steel build, and a consistent installation pathway that supports installation kits and straightforward integration into existing cabinet architectures.
Product Information
Extended Description
8619023 Rittal: VX Swing frame, large, trim panel on one side, for W: 800 mm, for min. enclosure height: 2000 mm, 40 U
Article number
VX 8619.023
Design
Trim panel on one side
Product description
For mounting 482.6 mm (19") equipment.
Material
Sheet steel
Surface finish
Frame: Zinc-plated | Trim panel: Spray-finished
Colour
Trim panel: RAL 7035
Supply includes
Lock system, 130° hinge | Parts for attaching to the installation kit
Assembly instruction
Depending on the mounting situation, punched sections with mounting flanges 23 x 64 mm are required
Note
The swing frame stay is required to lock the open swing frame
To fit
Width: = 800 mm | Height: ≥ 2,000 mm
Units
40 U
Packs of
1 pc(s).
Weight/pack
20.3 kg
Customs tariff number
94039910
EAN
4028177920385
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
VX Swing frame, large, trim panel on one side, for W: 800 mm, for min. enclosure height: 2000 mm, 40 U
Feature: 40 U mounting capacity and 800 mm width. Business impact: Maximizes internal space while preserving front accessibility, enabling higher equipment density without sacrificing serviceability. Application: Ideal for industrial automation cabinets housing multiple 19" modules and power supplies. The result is reduced cabinet footprint per circuit and faster maintenance cycles. Feature: Material is sheet steel with zinc-plated frame and spray-finished trim panel. Business impact: Combines mechanical strength with corrosion resistance, extending service life in harsh environments. Application: Suitable for manufacturing floors, data centers and control rooms where vibrational loads and humidity are considerations. Feature: Trim panel on one side and a 130° hinge. Business impact: Provides wide access to rear connections while keeping the panel secure during operation, reducing replacement risk during maintenance. Application: Installation in tight or high-traffic installations where quick hinge access is critical. Feature: Supply includes lock system and parts for attaching to the installation kit. Business impact: Simplifies assembly and reduces installation time, lowering labor costs and on-site downtime. Application: Works with standard installation kits and punched-section mounting flanges (23 x 64 mm). Feature: Color and finish – trim panel spray-finished, frame zinc-plated, panel in RAL 7035. Business impact: Delivers a clean, uniform appearance and consistent protection against corrosion, with easy color matching to facility interiors. Application: Suitable for standardized lab and plant environments with strict visual and protection requirements. Feature: Note on swing frame stay and fitment constraints (Width 800 mm, Height ≥ 2000 mm). Business impact: Ensures correct locking and swing operation, reducing misalignment risks and guaranteeing consistent enclosure performance. Application: Essential when planning large enclosures and ensuring compliant, safe operation. Feature: Weight per pack 20.3 kg; Packs of 1 pc. Business impact: Predictable handling and shipping, enabling straightforward inventory planning and just-in-time procurement. Application: Ideal for modular projects where single-unit deliveries are preferred or required by installation crews.
Get a Quick Quote for a Rittal 8619023
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8619023?
Enquire Now
FAQs
Install the frame using the included lock system and the 130° hinge. Mount to the installation kit with punched sections sized 23 x 64 mm as required by the mounting situation. Ensure the enclosure height meets the minimum 2,000 mm and that the 40 U capacity is appropriate for your 19" equipment stack. Verify alignment and test the swing motion before finalizing the panel capture.
Yes. The VX Swing frame is designed for 482.6 mm (19”) equipment and provides a fixed 800 mm width with 40 U of mounting space. Attachments to the installation kit are supported, and the unit accommodates typical 19" modules and accessories used in automated cabinets.
The frame is constructed from sheet steel and features a zinc-plated finish on the frame itself with a spray-finished trim panel. The trim panel color is RAL 7035, offering a durable, protective coating suitable for industrial environments.
The package includes a lock system and parts to attach the swing frame to the installation kit, along with assembly instructions. Note that depending on the mounting situation, punched sections with 23 x 64 mm mounting flanges may be required to ensure a secure, compliant installation.
Each pack weighs 20.3 kg and contains 1 unit. This predictable weight and packing configuration simplifies handling, shipping, and inventory planning for project deliveries and on-site installation planning.
