Rittal VX 8619.024 Swing Frame - 44U, 800 mm wide
Part Number: 8619024
Quick Summary
VX 8619.024 Swing frame is designed to mount 19" equipment in 44U Rittal enclosures. Installers often face alignment challenges and weak locking when resizing cabinets, leading to slower installs and higher downtime. This product aligns with ETIM 9 EC002620 and ECLASS 8.0 27189261 classifications, supporting procurement consistency and interoperability in complex automation environments. Its robust zinc-plated frame and spray-finished trim panel deliver durable service, while the 800 mm width and 44 U capacity enable flexible configurations across control rooms, panels, and data centers. Together with the included lock system and 130° hinge kit, it reduces installation steps and improves access for maintenance.
Product Information
Extended Description

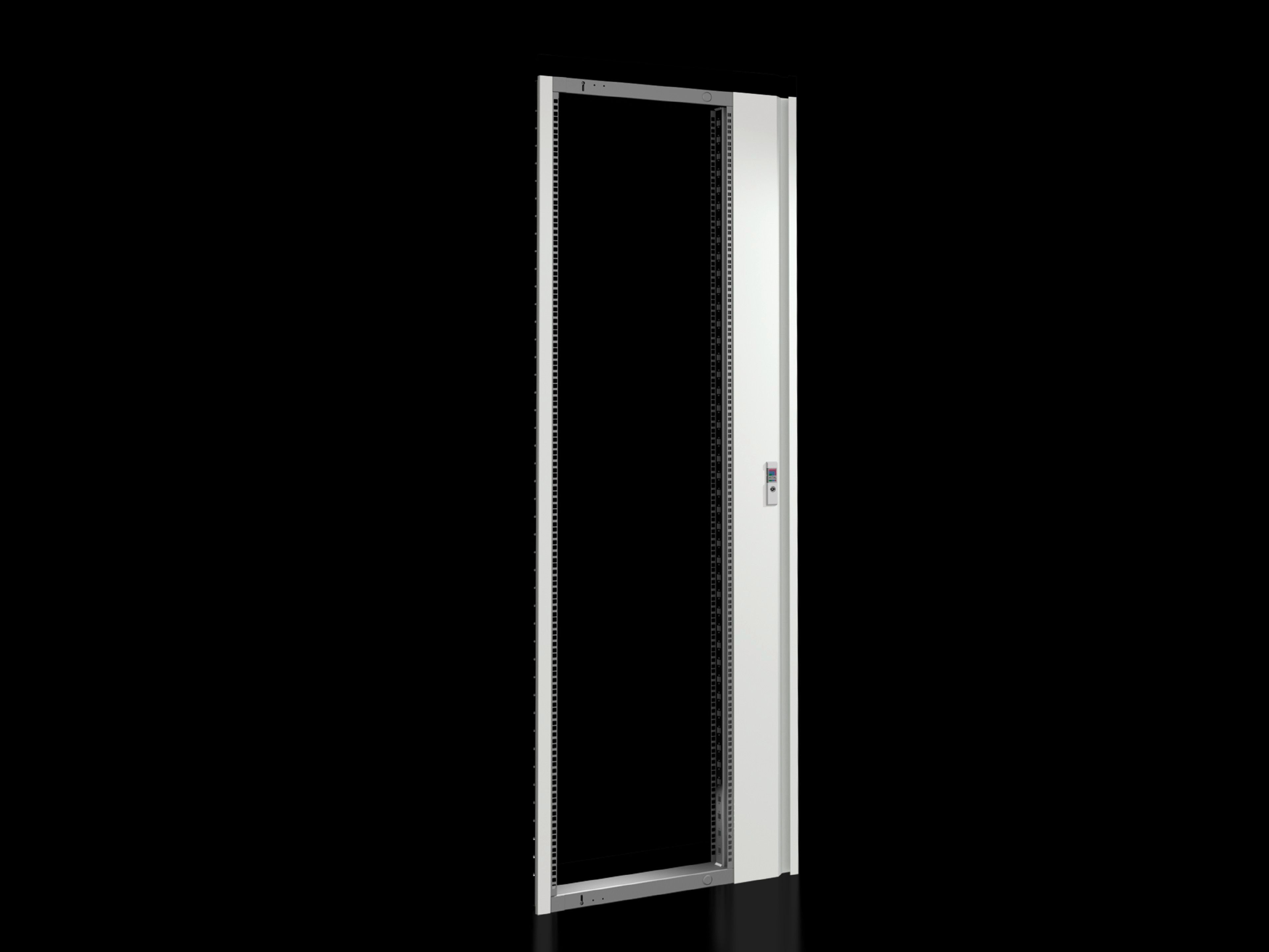

8619024 Rittal: VX Swing frame, large, trim panel on one side, for W: 800 mm, for min. enclosure height: 2200 mm, 44 U
Article number
VX 8619.024
Design
Trim panel on one side
Product description
For mounting 482.6 mm (19") equipment.
Material
Sheet steel
Surface finish
Frame: Zinc-plated | Trim panel: Spray-finished
Colour
Trim panel: RAL 7035
Supply includes
Lock system, 130° hinge | Parts for attaching to the installation kit
Assembly instruction
Depending on the mounting situation, punched sections with mounting flanges 23 x 64 mm are required
Note
The swing frame stay is required to lock the open swing frame
To fit
Width: = 800 mm | Height: ≥ 2,200 mm
Units
44 U
Packs of
1 pc(s).
Weight/pack
22.5 kg
Customs tariff number
94039910
EAN
4028177920378
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
VX Swing frame, large, trim panel on one side, for W: 800 mm, for min. enclosure height: 2200 mm, 44 U
Feature: Wide 800 mm frame with 44 U capacity provides compact yet high-density mounting for 19" equipment. Business Impact: Maximizes rack efficiency and reduces need for additional adapters, lowering total cost of ownership. Application: Suitable for 482.6 mm (19") gear in W: 800 mm enclosures across automation panels and control rooms. Feature: Durable construction with a zinc-plated frame and spray-finished trim panel. Business Impact: Improves corrosion resistance and longevity in industrial environments, reducing maintenance cycles. Application: Ideal for manufacturing floors, labs, and harsh environments where reliability matters. Feature: Integrated lock system and 130° hinge. Business Impact: Provides secure operation with smooth access for servicing, minimizing downtime during maintenance windows. Application: Preferred for systems requiring rapid cabinet access without compromising security. Feature: Installation compatibility with installation kit and specific mounting provisions. Business Impact: Enables faster, repeatable assembly with fewer field modifications, improving project timelines. Application: New builds and retrofits where standard 23 x 64 mm punched sections are used. Feature: Swing frame stay requirement for lockable operation. Business Impact: Enhances safety and reliability when the door or panel is left open. Application: Critical in high-traffic control rooms and safety-critical installations. Feature: Defined fitment for width and height, plus unit and weight details. Business Impact: Clarifies compatibility during procurement, reducing procurement errors and return cycles. Application: Confirmed for W: 800 mm and height ≥ 2,200 mm in 44 U configurations.
