Rittal VX 8619.034 Swing Frame - 800 mm Wide, 44U
Part Number: 8619034
Quick Summary
Rittal VX 8619.034 Swing Frame enables robust 19-inch mounting for large enclosures. Engineers often struggle with secure door alignment, restricted access, and cable routing when expanding racks in busy control rooms. The data references ETIM 9 EC002620 and ECLASS 8.0 27189261, but explicit CE, SIL, or IP ratings aren’t listed—verify regional compliance with your supplier. Designed for 800 mm wide installations and a minimum enclosure height of 2,200 mm (44 U), the frame uses a zinc-plated main frame with spray-finished trim panels in RAL 7035, supporting durability and predictable service. Together with the installation kit and lock system, this swing frame delivers installation efficiency and reliable long-term operation for manufacturing lines, process cabinets, and data centers.
Product Information
Extended Description

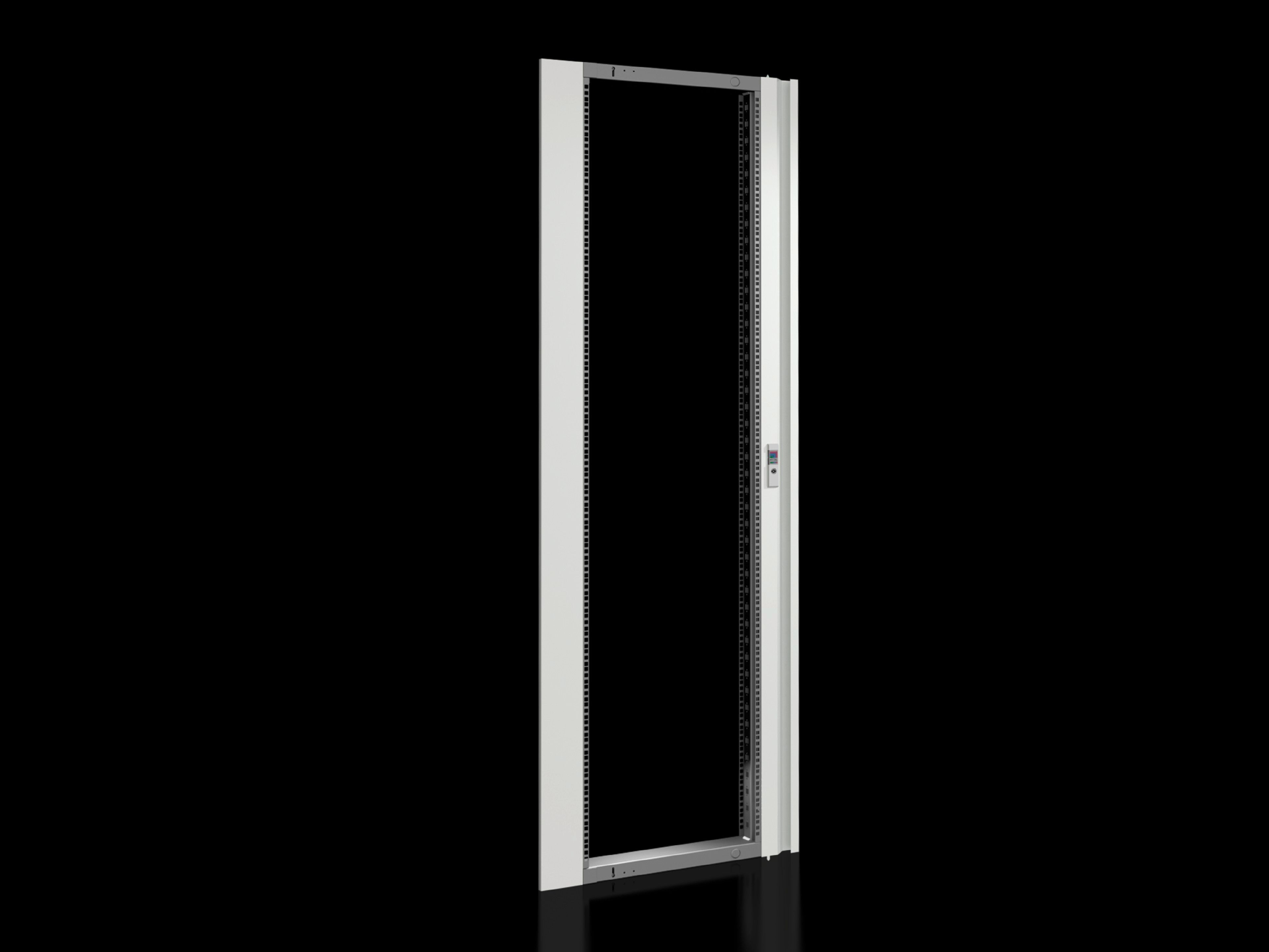

8619034 Rittal: VX Swing frame, large, trim panel on both sides, for W: 800 mm, for min. enclosure height: 2200 mm, 44 U
Article number
VX 8619.034
Design
Trim panel on both sides
Product description
For mounting 482.6 mm (19") equipment.
Material
Sheet steel
Surface finish
Frame: Zinc-plated | Trim panel: Spray-finished
Colour
Trim panel: RAL 7035
Supply includes
Lock system, 130° hinge | Parts for attaching to the installation kit
Assembly instruction
Depending on the mounting situation, punched sections with mounting flanges 23 x 64 mm are required
Note
The swing frame stay is required to lock the open swing frame
To fit
Width: = 800 mm | Height: ≥ 2,200 mm
Units
44 U
Packs of
1 pc(s).
Weight/pack
23 kg
Customs tariff number
94039910
EAN
4028177920330
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
VX Swing frame, large, trim panel on both sides, for W: 800 mm, for min. enclosure height: 2200 mm, 44 U
The VX 8619.034 provides a standardized 482.6 mm (19-inch) equipment mounting interface, which reduces integration time and the need for adapters, speeding up cabinet deployments in new lines or retrofits. It is paired with a large swing frame that includes trim panels on both sides, offering easy access for maintenance and improved cable management in 800 mm wide enclosures up to 44 U high. The 130-degree hinge and built-in lock system ensure safe, secure operation without removing panels, minimizing downtime during servicing. The unit ships with a lock system and parts for attaching to the installation kit, simplifying procurement and on-site assembly. Finished in zinc-plated steel with spray-finished trim panels in RAL 7035, it combines durability with plant-standard aesthetics. Punched sections (23 x 64 mm) featured in the installation instruction provide mounting flexibility for various installation scenarios. Note that the swing frame stay is required to lock the open frame, a critical safety consideration in high-traffic environments. All specifications reference ETIM 9 EC002620 and ECLASS 8.0 27189261 for data-precision, while the weight per pack sits at 23 kg for predictable handling during installation.
