Rittal VX 8619.040 Installation kit - 3500 N load capacity
Part Number: 8619040
Quick Summary
Rittal VX 8619.040 Installation kit securely mounts large swing frames for 600 mm enclosures. Engineers often struggle with unstable installations and misalignment that slow project timelines and compromise performance. This kit delivers a robust mounting platform with even load distribution, reducing drift and vibration. It aligns with ETIM 7.0 EC002620 and ECLASS 8.0 27189234 classifications, supporting procurement systems and cross-plant compatibility. By standardizing mounting across the entire enclosure height, the kit enables faster installations, lowers service calls, and improves long-term enclosure integrity, delivering meaningful business value. The solution also integrates with supply of assembly parts and features a durable spray-finished surface in RAL 7035 for a professional industrial appearance.
Product Information
Extended Description

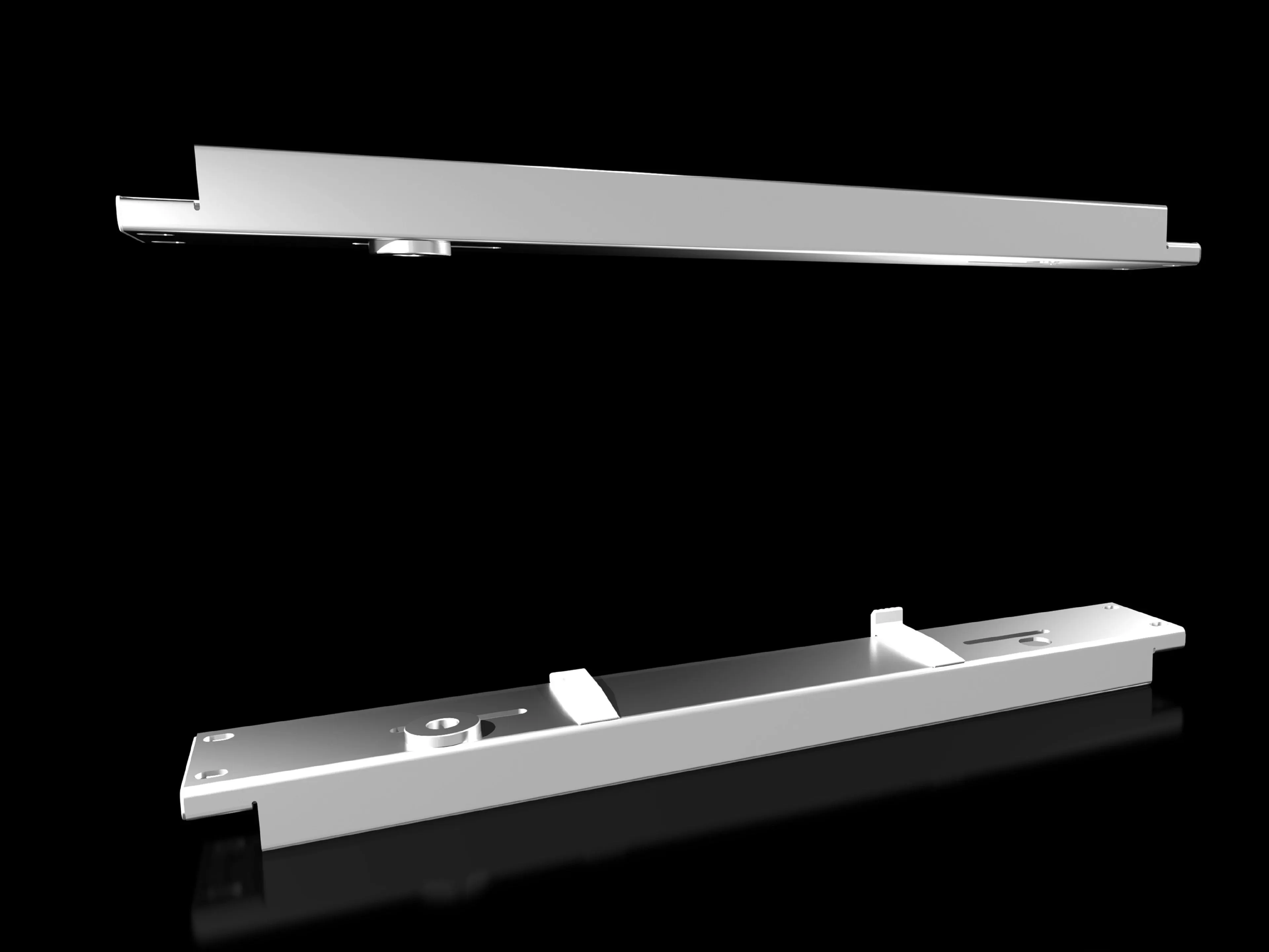

8619040 Rittal: VX Installation kit, for swing frame, large, for W: 600 mm
Article number
VX 8619.040
Product description
For mounting the swing frame, large.
Material
Sheet steel, 3.0 mm
Surface finish
Spray-finished
Colour
RAL 7035
Supply includes
Assembly parts
Installation options
Directly on the enclosure section when installed across the entire enclosure height
Load capacity (static)
3,500 N
To fit
Width:Â = 600 mm
Packs of
1 pc(s).
Weight/pack
3.62 kg
Customs tariff number
83024900
EAN
4028177920323
ETIM 7.0
EC002620
ECLASS 8.0
27189234
Product description
VX Installation kit, for swing frame, large, for W: 600 mm
Feature → Business Impact → Application: The VX 8619.040 uses 3.0 mm sheet steel, delivering a sturdy construction that supports a static load capacity of 3,500 N. This translates to reliable, long-term performance in demanding environments and reduces the risk of frame sag or misalignment during operation. Application: ideal for large swing-frame assemblies in 600 mm-wide enclosures where consistent load distribution is critical. Feature → Business Impact → Application: Sprayed finish in RAL 7035 provides corrosion resistance and a clean, uniform appearance that reduces maintenance needs and enhances enclosure aesthetics in industrial sites. Application: suitable for control panels and switchgear housings exposed to routine handling and cleaning. Feature → Business Impact → Application: Installation options that enable Directly on the enclosure section when installed across the entire height streamline alignment, cut installation times, and minimize field adjustments. Application: great for high-availability deployments in manufacturing lines. Feature → Business Impact → Application: Supplied with assembly parts, reducing procurement steps and potential delays; lowers total project downtime. Application: accelerates commissioning of new enclosures and retrofit projects. Feature → Business Impact → Application: Fits Width: 600 mm swing-frame configurations, ensuring compatibility with standard Rittal enclosures and modular add-ons. Application: supports scalable system upgrades and consistent kit-to-enclosure fit. Feature → Business Impact → Application: ETIM 7.0 EC002620 and ECLASS 8.0 27189234 alignment streamline cross-system data management and supplier cataloging. Application: simplifies digital sourcing and BOM creation for procurement teams.
Get a Quick Quote for a Rittal 8619040
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8619040?
Enquire Now
FAQs
The VX 8619.040 is designed specifically to mount swing frames for 600 mm wide enclosures and ships with assembly parts for straightforward installation. Its 3.0 mm sheet steel construction and spray-finished surface ensure a secure, durable fit, while the included components minimize on-site assembly steps and potential misalignment during setup.
This installation kit provides a static load capacity of 3,500 N and is manufactured from 3.0 mm sheet steel with a spray-finished surface in RAL 7035. These specifications deliver robust support for swing frames, reduce deflection under load, and maintain cosmetic and protective quality in harsh industrial environments.
Ideal for industrial automation and electrical cabinet applications requiring large swing-frame mounting within 600 mm enclosure systems. It suits control panels, switchgear housings, and other modular enclosures where reliable, uniform mounting across the full height is essential for consistent operation and quick, repeatable installations.
The kit aligns with ETIM 7.0 EC002620 and ECLASS 8.0 27189234, supporting data-driven procurement, digital catalogs, and cross-system compatibility. While explicit CE or IP certifications aren’t listed in the data, these classifications help ensure interoperability within standard industrial purchasing platforms.
The VX 8619.040 reduces installation time and field adjustments by providing a ready-to-install mounting platform with assembly parts included. Its durable finish and standardized dimensions improve reliability, lower maintenance needs, and deliver a lower total cost of ownership for projects involving large swing-frame enclosures.
