Rittal VX 8619.041 Installation Kit - 800 mm wide
Part Number: 8619041
Quick Summary
The Rittal VX installation kit provides a robust mounting solution for large swing-frame enclosures. Engineers often struggle with precise alignment and distributing load when retrofitting across the full enclosure height. This data sheet references ETIM EC002620 and ECLASS 27189234 classifications to support procurement, while explicit SIL, CE, or IP ratings are not listed. By delivering direct installation across the enclosure height and a 800 mm width fit, the kit helps speed commissioning, improve reliability, and reduce maintenance costs in panel-building workflows. Designed for sheet-steel construction with a spray-finished surface in RAL 7035, it also ensures consistent finishes across retrofits and new builds. Coupled with assembly parts included in the package, it minimizes sourcing steps and accelerates project timelines.
Product Information
Extended Description

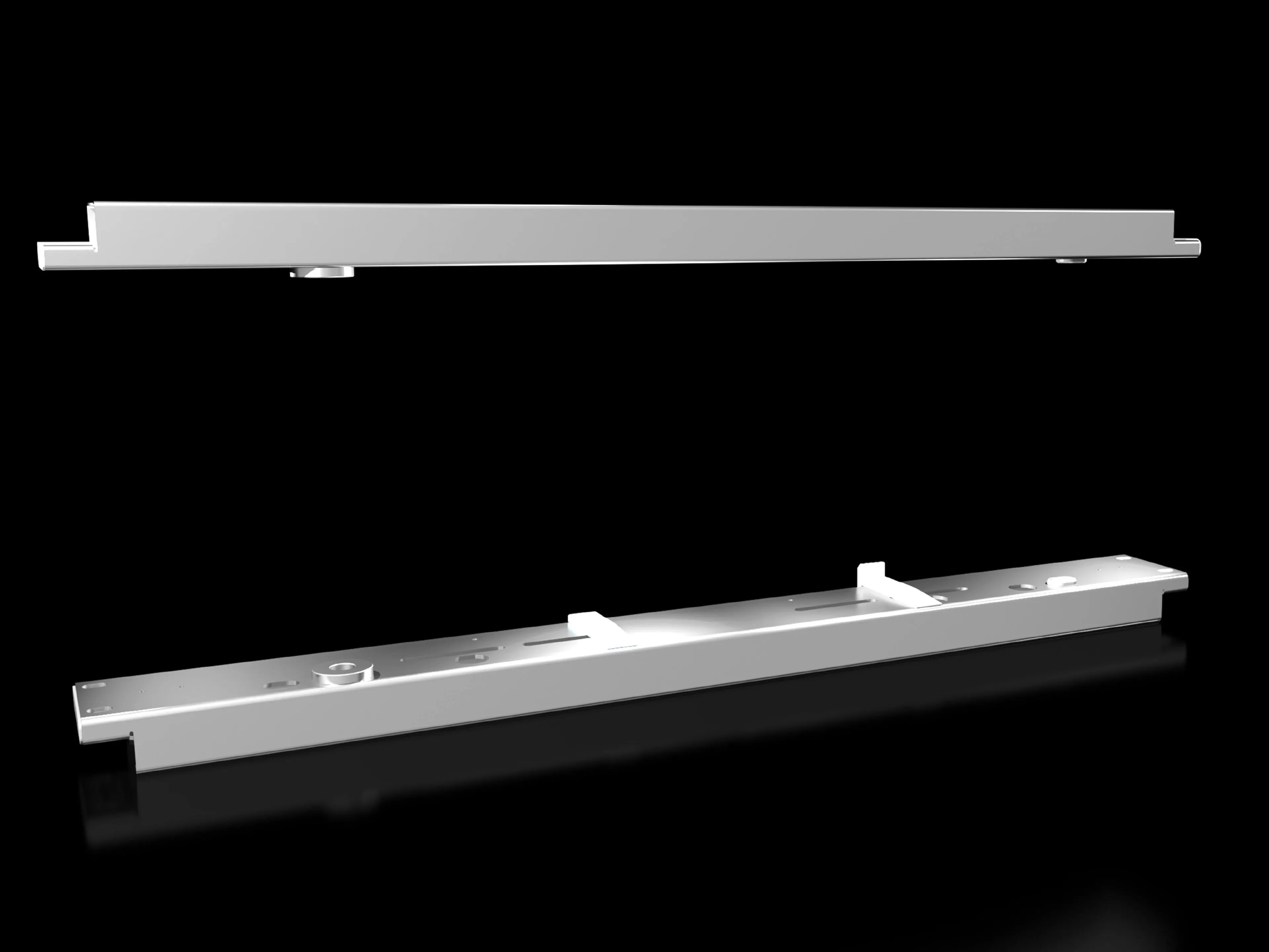

8619041 Rittal: VX Installation kit, for swing frame, large, for width 800 mm
Article number
VX 8619.041
Product description
For mounting the swing frame, large.
Material
Sheet steel, 3.0 mm
Surface finish
Spray-finished
Colour
RAL 7035
Supply includes
Assembly parts
Installation options
Directly on the enclosure section when installed across the entire enclosure height
Load capacity (static)
3,500 N
To fit
Width: = 800 mm
Packs of
1 pc(s).
Weight/pack
4.56 kg
Customs tariff number
83024900
EAN
4028177920316
ETIM 9
EC002620
ECLASS 8.0
27189234
Product description
VX Installation kit, for swing frame, large, for width 800 mm
Feature: Sheet steel, 3.0 mm thick construction with a spray-finished surface in RAL 7035; Business Impact: Delivers rigid, durable mounting that resists corrosion and wear in harsh industrial environments; Application: Ideal for long-life swing-frame mounting on large enclosures in manufacturing plants. Feature: Static load capacity of 3,500 N; Business Impact: Provides ample safety margin for heavy doors and dynamic swings, reducing risk of frame flex or misalignment; Application: Suitable for high-duty swing-frame installations in process facilities. Feature: Width compatibility for 800 mm fittings; Business Impact: Minimizes custom fabrication and ensures straightforward integration with standard enclosure lines; Application: Quick retrofit on 800 mm wide enclosures across the height. Feature: Includes assembly parts; Business Impact: Streamlines procurement and speeds installation, cutting downtime during upgrades; Application: Installers can complete the kit without sourcing additional components. Feature: Direct installation across the entire enclosure height; Business Impact: Enables consistent mounting points and easier alignment across full height; Application: Retrofit and new-build projects requiring full-height swing-frame support. Feature: Pack options and weight — 1 pack per order, weight 4.56 kg; Business Impact: Facilitates modular deployment and easier handling in multi-site rollouts; Application: Field installations with space and transport considerations.
Get a Quick Quote for a Rittal 8619041
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8619041?
Enquire Now
FAQs
To install the VX 8619.041, first verify enclosure width of 800 mm and prepare the swing-frame mounting area. Align mounting points across the full enclosure height, secure with supplied assembly parts, and check alignment with the swing trigger. The kit’s 3.0 mm sheet-steel construction provides rigidity; ensure fasteners are tightened per standard torque specs.
The VX installation kit supports a static load of up to 3,500 N. It is made from sheet steel with a thickness of 3.0 mm and finished with a spray coating in RAL 7035. This combination delivers durable, vibration-resistant performance for large swing frames in demanding environments.
Yes. The VX 8619.041 is designed for 800 mm wide enclosures and installation across the entire enclosure height. This ensures continuous support for swing-frame assemblies, improving rigidity, alignment, and door operation on large enclosures used in harsh industrial settings.
This data references ETIM EC002620 and ECLASS 27189234 classifications to aid procurement. The specification package does not list SIL, CE, or IP ratings; verify compliance requirements with your compliance team or distributor before use in regulated environments.
By providing a durable, pre-finished steel mounting solution with confirmed load capacity, the VX kit reduces retrofit complexity and alignment adjustments, shortening commissioning times and lowering maintenance downtime. The included assembly parts streamline procurement, enabling faster project execution and improved lifecycle cost for large enclosure projects.
