Rittal VX 8619.042 Installation Kit - 1500 N Load Capacity
Part Number: 8619042
Quick Summary
Rittal VX 8619.042 Installation Kit is a mounting solution for swing-frame enclosures, enabling secure, full-height installation on W 1200 mm widths. For engineers facing alignment challenges and uneven load distribution, this kit provides a predictable, repeatable mounting process that reduces on-site time and rework. While the datasheet highlights a 1,500 N static load capacity, a 3.0 mm sheet steel construction, and a spray-finished surface in RAL 7035, the true value lies in how the kit integrates with the enclosure system to support consistent performance across the full height. This solution aligns with standard ETIM EC002620 and ECLASS 27189234 classifications, ensuring seamless cataloging and procurement. In practice, it enables fast installation, durable aesthetics, and lower lifetime costs for large-scale enclosure projects, while maintaining compatibility with VX swing-frame components.
Product Information
Extended Description

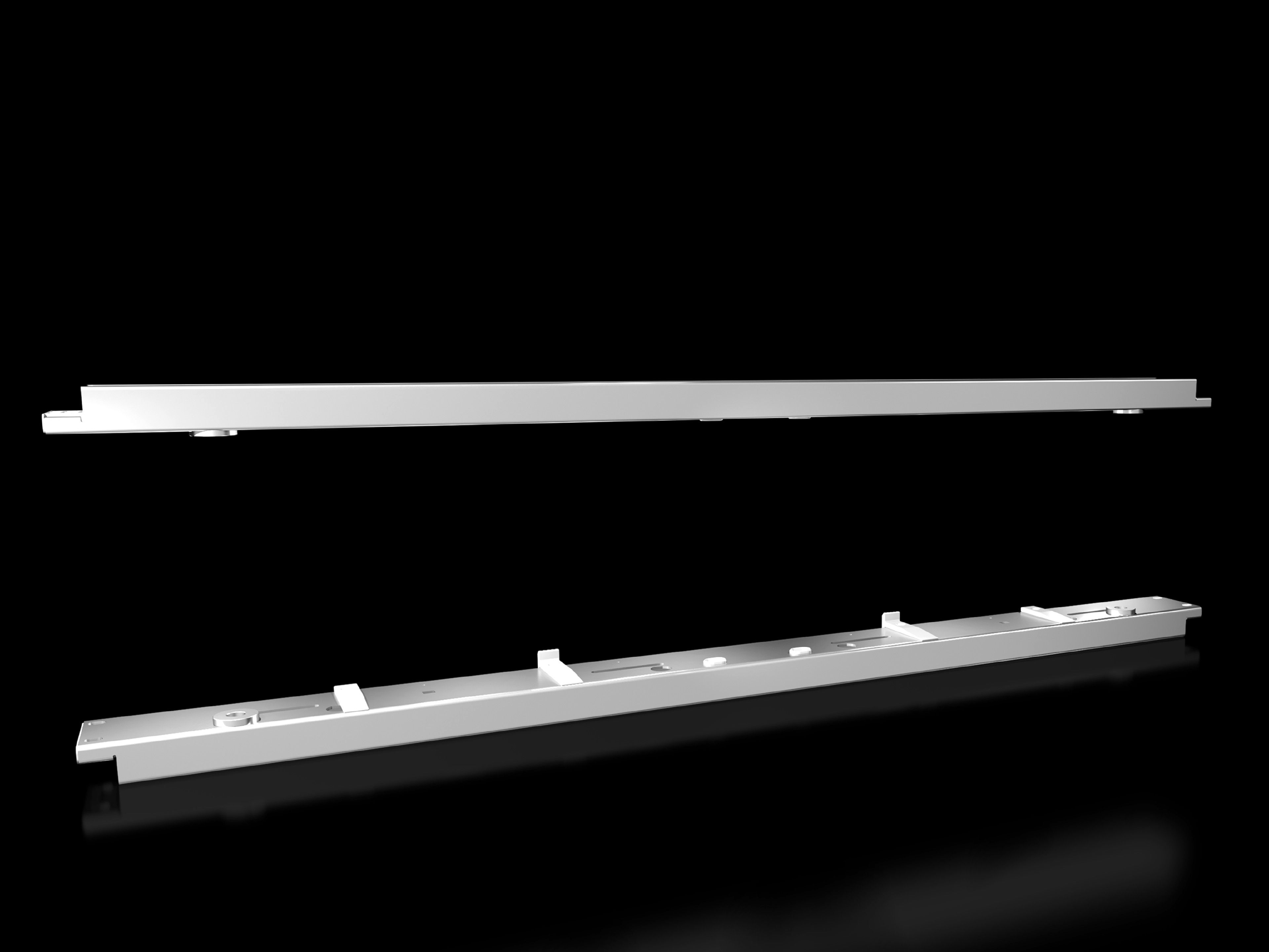

8619042 Rittal: VX Installation kit, for swing frame, large, for W: 1200 mm
Article number
VX 8619.042
Product description
For mounting the swing frame, large.
Material
Sheet steel, 3.0 mm
Surface finish
Spray-finished
Colour
RAL 7035
Supply includes
Assembly parts
Installation options
Directly on the enclosure section when installed across the entire enclosure height
Load capacity (static)
1,500 N
To fit
Width:Â = 1,200 mm
Packs of
1 pc(s).
Weight/pack
6.42 kg
Customs tariff number
83024900
EAN
4028177920309
ETIM 9
EC002620
ECLASS 8.0
27189234
Product description
VX Installation kit, for swing frame, large, for W: 1200 mm
Feature: Heavy-gauge sheet steel 3.0 mm construction. Benefit: Delivers robust, vibration-resistant mounting capable of withstanding steady and dynamic loads in demanding industrial environments. Application: Ideal for swing-frame installation on large Rittal enclosures, where durability directly influences uptime and component life. Feature: Spray-finished surface in RAL 7035. Benefit: Ensures color consistency with the enclosure family and provides corrosion resistance, reducing maintenance needs. Application: Suitable for factory floors, panels, and switchgear rooms where color coding and protection matter. Feature: Static load rating of 1,500 N. Benefit: Supports secure accessory mounting and door mechanisms with ample margin for typical cabinet accessories. Application: Critical for 1,200 mm-wide swing-frame configurations in vertical enclosure layouts. Feature: Includes assembly parts and installation options across the full enclosure height. Benefit: Simplifies procurement and reduces installation steps, delivering cost and time savings. Application: Streamlines project timelines for mid- to large-scale enclosure deployments. Feature: Compatible with 1,200 mm width and packs of 1.0. Benefit: Predictable handling, easy logistics, and straightforward stockkeeping. Application: Helps procurement teams maintain consistent inventory across multiple projects. Feature: Weight per pack 6.42 kg. Benefit: Manageable per-pack handling and safer on-site lifting, improving installation efficiency. Application: Suitable for single-operator installation workflows on large enclosures. This combination of features ensures compatibility with VX swing-frame components and supports scalable enclosure programs while offering measurable improvements in installation efficiency and lifecycle performance.
Get a Quick Quote for a Rittal 8619042
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8619042?
Enquire Now
FAQs
The kit is designed to mount directly on the enclosure section across the full height, using its assembled parts to create a secure frame for a large swing-frame setup. The process benefits from standardized components, making alignment straightforward and reducing on-site errors. Expect a cohesive integration with VX swing-frame parts and consistent fastener placement for reliable operation.
The installation kit uses sheet steel with a 3.0 mm thickness and a spray-finished surface in RAL 7035, providing a durable, corrosion-resistant finish. It has a static load capacity of 1,500 N, suitable for supporting swing-frame assemblies and attached components across the 1,200 mm width. Weight per pack is 6.42 kg, aiding transport and handling planning.
Yes, the VX 8619.042 is designed to be compatible with swing-frame configurations used on 1,200 mm-wide enclosures and integrates with VX installation kits. The product is classified under ETIM EC002620 and ECLASS 8.0 27189234, which supports interoperability in procurement systems and cataloging, reducing integration risk across different enclosure families.
The datasheet provides ETIM 9 and ECLASS 8.0 classifications (EC002620 and 27189234) for interoperability and specification alignment. Specific CE marking, IP ratings, or SIL certifications are not listed in the provided data. For compliance planning, verify your project requirements and consult the supplier's latest documentation for any regulatory updates.
Using the VX 8619.042 kit standardizes swing-frame mounting, reducing on-site setup time and rework, while ensuring consistent load distribution across the enclosure. The result is lower installation labor costs, fewer field adjustments, and improved long-term reliability of the enclosure system, contributing to shorter project schedules and lower maintenance overhead on large-scale deployments.
