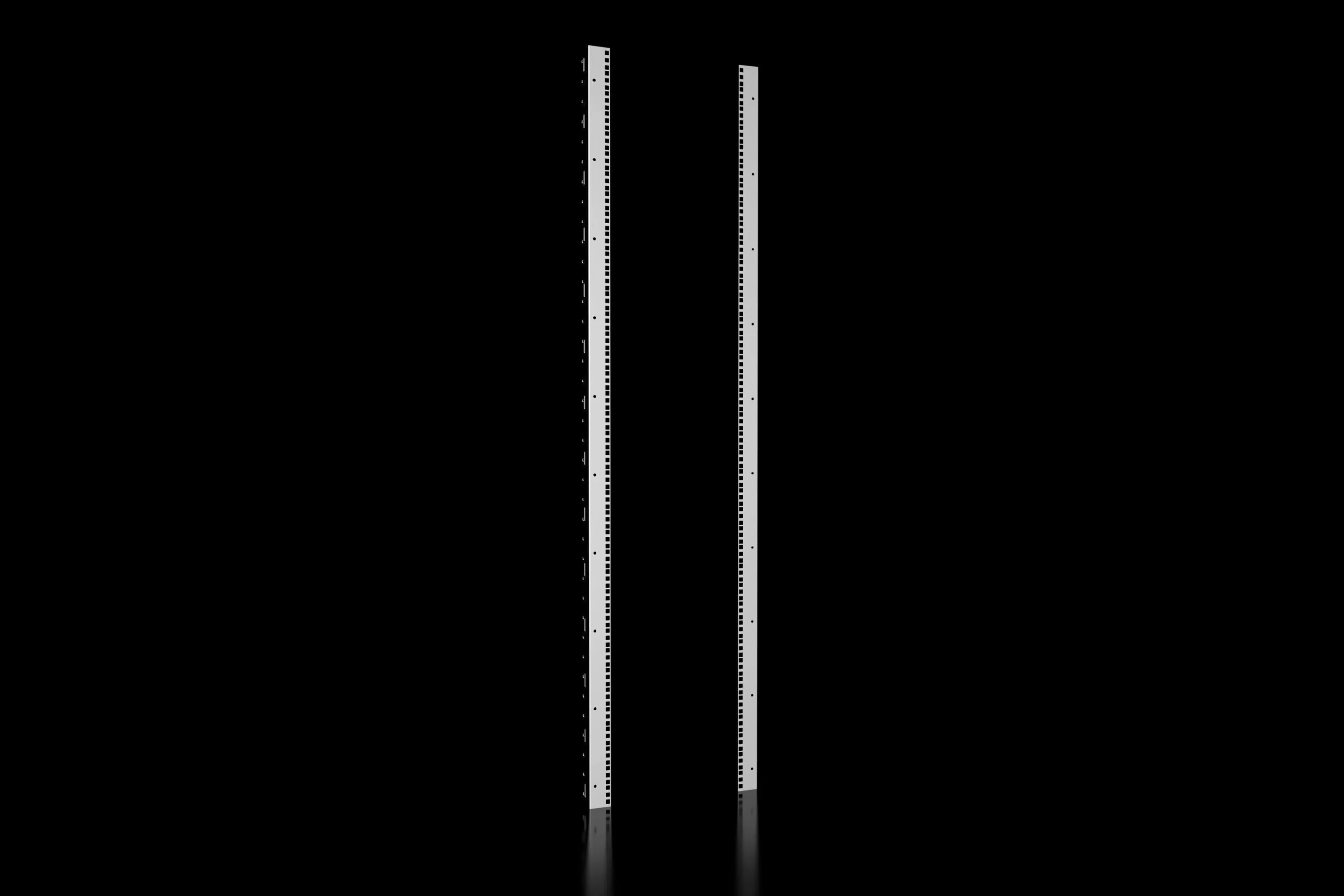

Rittal VX 8619.310 Adaptor Section 19in - 38U
Part Number: 8619310
Manufacturer
Rittal
Part number
8619310
Alt Part Number
VX 8619.310
Quick Summary
Rittal VX 8619.310 adaptor section for 19-inch equipment enables compact, scalable mounting inside VX enclosures. This accessory addresses the challenge of adapting enclosure frames for varied electronics and partial assemblies without compromising rigidity. The unit supports mounting electronic components, subracks and other 482.6 mm (19in) equipment, with easy shortening for partial assemblies. It aligns with industry classifications like ETIM 9 EC002625 and ECLASS 8.0 27189234, and is sized to fit VX enclosures of 600 mm width and 1,800 mm height. By standardizing the adaptor section, engineers can reduce lead times and simplify sourcing while maintaining mechanical integrity and consistent installation patterns for 38 U capacity.
Product Information
Extended Description
8619310 Rittal: VX Adaptor section 19", for min. enclosure height: 1800 mm, 38 U
Article number
VX 8619.310
Product description
For mounting electronic components, subracks and other 482.6 mm (19") equipment. Adaptor sections are easily shortened for partial assemblies.
Material
Sheet steel, 2 mm
Supply includes
Assembly parts
Units
38 U
Installation dimensions
Installation depth for components: 482.6 mm | Installation width for components: 19"
Note
The 482.6 mm (19") measurement applies when mounting on the frame of 600 mm wide enclosures.
To fit
Enclosure type: VX | Width: = 600 mm | Height: = 1,800 mm
Packs of
2 pc(s).
Weight/pack
3.32 kg
Customs tariff number
76042990
EAN
4028177928732
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
VX Adaptor section 19", for min. enclosure height: 1800 mm, 38 U
Feature: Robust material and finish. The adaptor section is made from 2 mm sheet steel, providing durable support for mounted 19-inch equipment. Business impact: Improved rigidity and protection against vibration in demanding industrial environments, reducing gasket or frame damage costs. Application: Ideal for VX enclosure systems that host electronic components and subrack assemblies. Feature: Modular adaptability. The 482.6 mm installation depth and 19in width allow partial assemblies to be shortened without compromising alignment. Business impact: Faster customization and reduced engineering time, enabling on-time project delivery. Application: Fit within 600 mm wide VX enclosures at 1,800 mm height with 38 U capacity. Feature: Ready-to-install contents. Supplied with assembly parts in packs of two; weight per pack 3.32 kg. Business impact: Simplified procurement and logistics, lower handling cost. Application: Quick stock replenishment for OEM or contract manufacturing. Feature: Clear documentation and compatibility. Includes ETIM 9 EC002625 and ECLASS 8.0 27189234 references; compatible with VX enclosure families. Business impact: Helps maintain compliance and streamline spare-part catalogs. Application: Ensures standardization across multi-vendor environments.
Get a Quick Quote for a Rittal 8619310
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8619310?
Enquire Now
FAQs
The adaptor section is designed for VX frames with 600 mm width and 1,800 mm height. Install using the 482.6 mm depth and 19in mounting width, aligning with the enclosure's internal rail pattern; assembly parts are included to simplify attachment and preserve rigidity.
Each package contains assembly parts suitable for two adaptor sections, with a weight of 3.32 kg per pack. This enables cost-effective stocking and straightforward replenishment, especially for mid-size VX enclosures.
Yes. The VX 8619.310 is specifically described for mounting electronic components, subracks and other 19-inch equipment, aligning with standard 482.6 mm rack spacing and 38 U capacity for VX frames.
The product data references ETIM 9 EC002625 and ECLASS 8.0 27189234 for classification. Note that explicit SIL, CE or IP ratings are not listed; verify enclosure-specific requirements in your safety and conformity documentation.
By enabling partial assemblies and straightforward shortening, it reduces lead times and sourcing complexity. The 2 mm sheet steel construction offers durability, while packs of two streamline procurement and logistics in OEM or contract manufacturing environments.
