Rittal VX 8619.320 Adaptor Section - 42 U Enclosures
Part Number: 8619320
Manufacturer
Rittal
Part number
8619320
Alt Part Number
VX 8619.320
Quick Summary
VX 8619.320 adaptor section mounts electronic components, subracks, and 19 inch equipment inside VX enclosures for clean, organized rack layouts. This modular accessory helps avoid bespoke fabrication, reducing lead times and enabling partial assemblies to be completed off-site. While the data highlights the 482.6 mm (19 inch) measurement when mounting on 600 mm wide frames, the adaptor delivers a consistent 42 U capacity and 19 inch installation width to support scalable projects. In addition to the mechanical fit, the part is cataloged under ETIM 9 EC002625 and ECLASS 8.0 27189234, which enhances procurement accuracy and interoperability. For engineers and buyers, this translates to reliable compatibility, streamlined sourcing, and predictable performance in VX electronic enclosure rear mounting scenarios, with strong business value across assembly, service, and retrofit programs.
Product Information
Extended Description

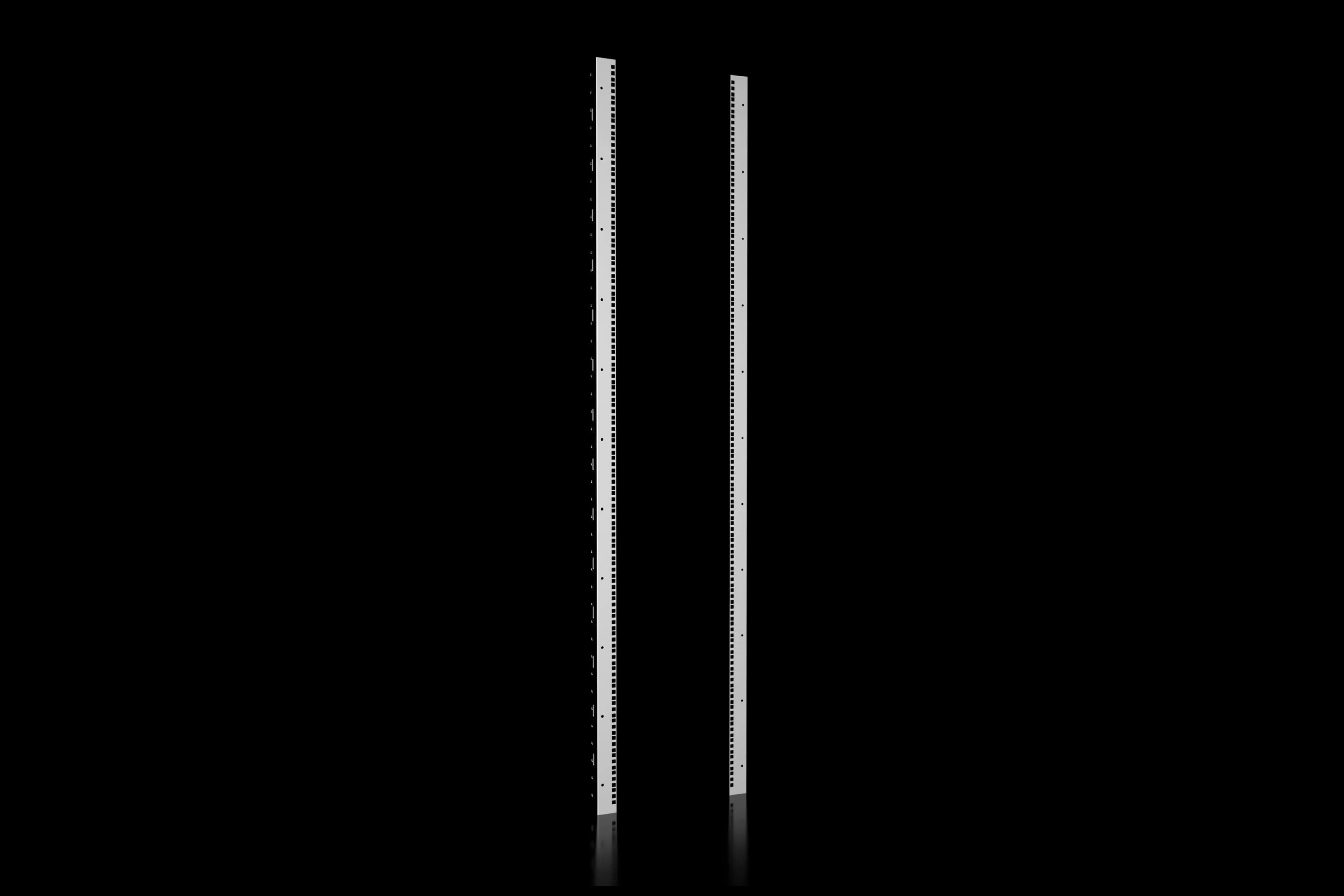

8619320 Rittal: VX Adaptor section 19", for min. enclosure height: 2000 mm, 42 U
Article number
VX 8619.320
Product description
For mounting electronic components, subracks and other 482.6 mm (19") equipment. Adaptor sections are easily shortened for partial assemblies.
Material
Sheet steel, 2 mm
Supply includes
Assembly parts
Units
42 U
Installation dimensions
Installation width for components: 19"
Note
The 482.6 mm (19") measurement applies when mounting on the frame of 600 mm wide enclosures.
To fit
for VX electronic enclosure, rear
To fit
Enclosure type: VX | Width: = 600 mm | Height: = 2,000 mm
Packs of
2 pc(s).
Weight/pack
3.73 kg
Customs tariff number
76042990
EAN
4028177927049
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
VX Adaptor section 19", for min. enclosure height: 2000 mm, 42 U
Feature: 2 mm sheet steel construction provides a robust, durable mounting plane for 19 inch components. Business impact: Increased mechanical strength reduces flex and vibration, protecting sensitive electronics and extending enclosure life. Application: Ideal for VX electronic enclosure rear mounting in industrial control panels and process automation racks. Feature: 42 U unit capacity paired with 19 inch installation width delivers standardized rack space and precise component alignment. Business impact: Facilitates scalable layouts, simplifies cable management, and improves heat dissipation planning for high-density systems. Application: Suitable for large control panels requiring consistent 19 inch mounting footprints in VX enclosures. Feature: Packs of two with a combined weight of 3.73 kg per pack enable convenient logistics and on-site handling. Business impact: Reduces shipping complexity and allows staggered deployment in multi- cabinet projects, cutting lead times. Application: Useful for modular retrofit programs and maintenance cycles. Feature: Supply includes assembly parts, accelerating installation and eliminating sourcing delays. Business impact: Shortens project timelines, lowers total cost of ownership, and improves field deployment reliability. Application: Valuable for panel builders and service teams performing rapid upgrades to existing VX systems. Feature: Installation dimensions specify 19 inch component mounting width and rear-fit compatibility with VX frames. Business impact: Ensures precise physical fit and minimizes misalignment risk during final assembly. Application: Aligns with standard 19 inch equipment and modular VX enclosure configurations. Feature: Note clarifies that the 482.6 mm (19 inch) measurement applies when mounting on the frame of 600 mm wide enclosures. Business impact: Helps engineers verify compatibility for mixed-width systems and avoid inconsistent fitment. Application: Critical during site surveys and system upgrades where enclosure frames vary by width.
Get a Quick Quote for a Rittal 8619320
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8619320?
Enquire Now
FAQs
Yes. The adaptor is designed for VX enclosures and rear mounting of 19 inch equipment, with a 19 inch installation width. The note in the datasheet specifies that the 482.6 mm (19 inch) measurement applies when mounting on the frame of 600 mm wide enclosures, which helps confirm fit across common VX frame configurations.
The adaptor section is constructed from sheet steel measuring 2 mm thick, providing a robust mounting surface for electronic components and subracks. This material choice supports rigidity under operational loads and vibration, contributing to longer enclosure life in industrial environments.
This adaptor section is intended for mounting electronic components, subracks, and other 19 inch equipment inside VX enclosures, with a 42 U capacity and rear-mount compatibility. It is well-suited for scalable control panels, process automation racks, and retrofit projects requiring reliable 19 inch mounting within VX frames.
The product is cataloged under ETIM 9 EC002625 and ECLASS 8.0 27189234, ensuring consistent part classification across procurement and maintenance systems. While these are classification standards rather than certifications, they support accurate part identification and interoperability in enterprise workflows.
The adaptor is sold in packs of two, with a combined weight of 3.73 kg per pack, easing shipping and handling. The supply includes assembly parts, speeding up on-site installation and enabling efficient modular retrofits in VX enclosures, which can reduce total project cost and downtime.
