Rittal VX 8619.400 Cable Clamp Rail, Mounting Angle - 25 mm Pitch
Part Number: 8619400
Manufacturer
Rittal
Part number
8619400
Alt Part Number
VX 8619.400
Quick Summary
Rittal VX 8619.400 cable clamp rail provides depth-variable strain relief for 400 mm VX/AX enclosures. Installers often struggle with fixed rails that limit cable management and service access. The data lists steel construction and zinc-plated finish, with installation options for VX and AX enclosures; however, formal CE, IP, or SIL certifications are not specified in this dataset. This combination supports reliable enclosure wiring, reduces maintenance intervals, and accelerates deployment, especially when paired with VX base and AX interior rail options. The solution aligns with ongoing automation projects by improving cable management, ease of retrofit, and overall system integrity.
Product Information
Extended Description

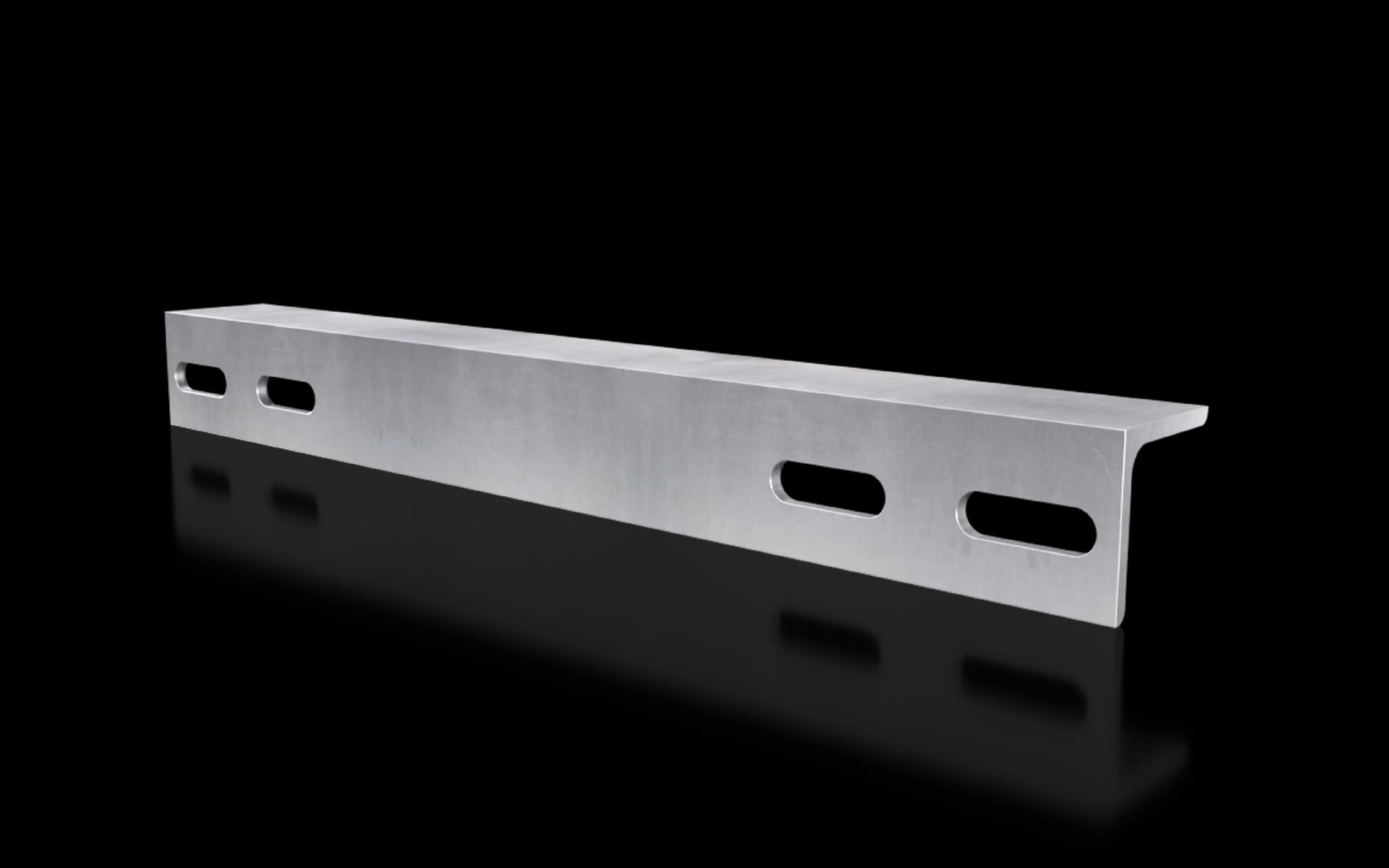

8619400 Rittal: VX Cable clamp rail, mounting angle, for W: 400 mm
Article number
VX 8619.400
Product description
For strain relief with cable entry. Depth-variable mounting on a 25 mm pitch pattern on the horizontal enclosure section or in the base/plinth.
Material
Steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
VX installation options
In enclosure width 400 mm, in the base
AX installation options
In enclosure width 400 mm, in conjunction with rail for interior installation AX and base configuration rail for AX
To fit
Base/plinth system VX
Dimensions
Length: 354 mm
To fit
Enclosure type: VX | AX | Width: = 400 mm
Packs of
2 pc(s).
Weight/pack
2.49 kg
Customs tariff number
73269098
EAN
4028177921924
ETIM 9
EC000322
ECLASS 8.0
27400604
Product description
VX Cable clamp rail, mounting angle, for W: 400 mm
Depth-variable mounting on a 25 mm pitch pattern provides flexible cable entry alignment, reducing rework and enabling tidy cable routes. In practice, this means faster installation and easier future upgrades in VX/AX enclosures. Dur able steel with zinc-plated surface delivers corrosion resistance in harsh industrial environments, extending service intervals. This translates to lower maintenance costs and predictable performance in 24/7 operations. Includes assembly parts for quick deployment; no missing hardware during field installs. Compatibility with VX base/plinth and AX interior rail systems simplifies procurement and reduces project risk. Designed for enclosure width 400 mm; mounting in base or enclosure sections ensures secure cable management. Length of 354 mm supports compact yet robust mounting within standard VX/AX frames. Packs of 2 reduce per-unit packaging and shipment costs; weight per pack 2.49 kg supports reasonable freight planning. ETIM EC000322 and ECLASS 27400604 mappings ensure smooth data integration with procurement systems.
Get a Quick Quote for a Rittal 8619400
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8619400?
Enquire Now
FAQs
VX installation options include mounting in enclosure width 400 mm and in the base; AX installation options cover interior installation with AX rails and the base configuration rail for AX, enabling flexible integration into existing VX/AX setups.
The component is manufactured from steel with a zinc-plated surface finish, providing robust mechanical strength and corrosion resistance suitable for industrial environments.
Yes. It is designed to fit the Base/plinth VX system and can be used with AX interior rails, aligning with standard VX/AX installation practices to simplify procurement and assembly.
The product is supplied in packs of two, with a total weight of 2.49 kg per pack, aiding predictable shipping and handling planning.
Best suited for 400 mm wide VX and AX enclosures where reliable strain relief and versatile mounting are required, including base or horizontal mounting in both VX and AX configurations.
