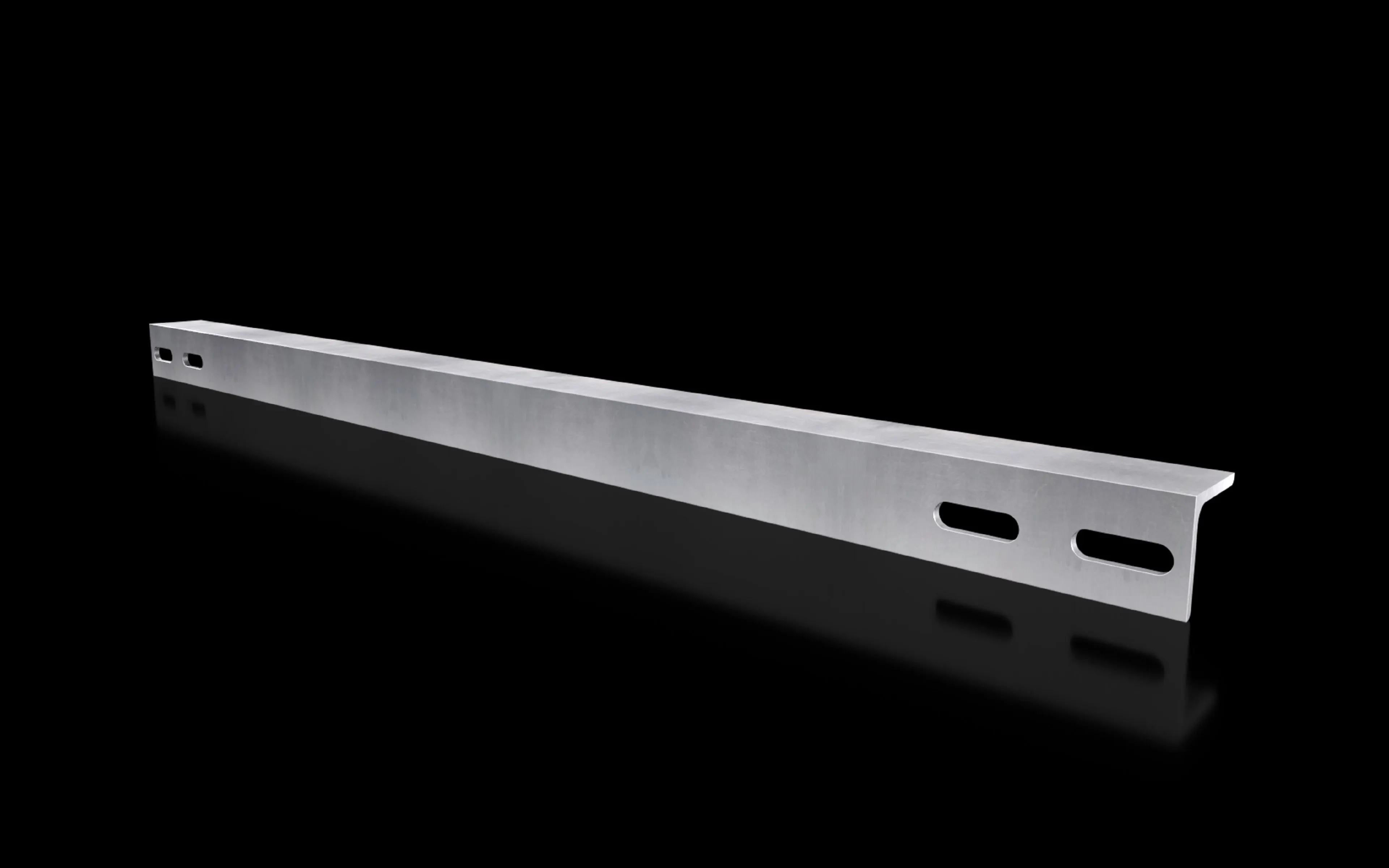

Rittal 8619.420 Cable Clamp Rail - 25 mm Pitch
Part Number: 8619420
Manufacturer
Rittal
Part number
8619420
Alt Part Number
VX 8619.420
Quick Summary
Rittal VX 8619.420 cable clamp rail is a depth-variable mounting accessory that enables precise strain relief in 800 mm wide enclosures. By allowing depth adjustment on a standard 25 mm pitch, it reduces installation time and minimizes rework in tight cabinets. While specific certifications aren’t listed here, Rittal accessories are commonly deployed in CE-compliant, IP-rated systems and are designed to tolerate demanding industrial environments. This solution complements enclosure systems with VX, VX SE, and AX families, delivering reliable cable management and a scalable mounting option that keeps wiring neat and accessible for service. Using it yields better cable entry alignment, reduces risk of cable damage, and supports efficient maintenance planning. In practice, specifiers value base compatibility and the two-pack packaging for stocking and procurement.
Product Information
Extended Description
8619420 Rittal: VX Cable clamp rail, mounting angle, for W: 800 mm
Article number
VX 8619.420
Product description
For strain relief with cable entry. Depth-variable mounting on a 25 mm pitch pattern on the horizontal enclosure section or in the base/plinth.
Material
Steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
VX installation options
In enclosure width 800 mm, in the base
VX SE installation options
In enclosure width 800 mm, in the base
AX installation options
In enclosure width 800 mm, in conjunction with rail for interior installation AX and base configuration rail for AX
To fit
Base/plinth system AX
Dimensions
Length: 754 mm
To fit
Enclosure type: VX | VX SE | AX | CX pedestal | CX one-piece console | Width: = 800 mm
Packs of
2 pc(s).
Weight/pack
4.36 kg
Customs tariff number
73269098
EAN
4028177921948
ETIM 9
EC000322
ECLASS 8.0
27400604
Product description
VX Cable clamp rail, mounting angle, for W: 800 mm
Feature: Depth-variable mounting on a 25 mm pitch pattern. Business Impact: Enables precise strain relief while reducing installation time and rework. Application: Ideal for W: 800 mm VX VX SE AX enclosures where cable entry alignment is critical. Feature: Steel construction with zinc-plated surface. Business Impact: Delivers durable, corrosion-resistant performance in harsh environments, lowering replacement and maintenance costs. Application: Suitable for long-life industrial installations across cabinet bases and horizontal sections. Feature: Packs of two with assembly parts included. Business Impact: Improves inventory efficiency and project planning, reducing downtime during assembly. Application: Fits procurement workflows for high-volume cabinet deployments. Feature: Length 754 mm and weight 4.36 kg per pack. Business Impact: Easy handling and stable mounting, minimizing installation fatigue and misalignment. Application: Supports consistent cable routing in 800 mm-wide enclosures. Feature: Broad compatibility across VX, VX SE, and AX families; base and enclosure mounting. Business Impact: Simplifies part selection, lowers part variety, and accelerates project timelines. Application: Useful for multi-configuration rollouts and upgrades. Feature: Clear manufacturing and part details (assembly parts included, 2-pack). Business Impact: Streamlines sourcing and reduces installation errors, boosting on-site productivity. Application: Ideal for service teams seeking reliable, repeatable mounting solutions.
Get a Quick Quote for a Rittal 8619420
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8619420?
Enquire Now
FAQs
The VX 8619.420 cable clamp rail is designed for use with VX, VX SE, and AX enclosure families, supporting installation in the base or on the horizontal section of 800 mm-wide cabinets. The product ships as a 2-pack with assembly parts, enabling rapid scaling across multiple enclosures. For complex installations, confirm exact mounting positions with the enclosure drawings, but the rail’s 25 mm pitch and depth-variable capability simplify alignment across configurations.
Key dimensions include a length of 754 mm. Each pack weighs 4.36 kg, and packs are supplied as 2-piece sets. These specifications help you plan cable entry clearances, support rail mounting within the enclosure footprint, and balance weight distribution for stable installation. The zinc-plated steel construction ensures durability while keeping the setup manageable during service and rework cycles.
VX 8619.420 supports VX installation options in enclosure width 800 mm, both in the base and on the internal region of the enclosure. VX SE offers similar base mounting, while AX installations can be used in conjunction with rails for interior installation and base configuration rail for AX. This range provides flexible cable routing across multiple enclosure architectures without needing additional adapters.
The data does not list explicit CE, IP, or SIL certifications for VX 8619.420. In practice, verify the specific regulatory coverage with your distributor or supplier for your region and application. For many industrial cabinet accessories, CE compliance and conformity with enclosure standards are expected, but always confirm the exact scope and certification status on your project documents.
Using the VX 8619.420 cable clamp rail reduces installation time through depth-variable mounting and standardized 25 mm pitch, minimizing rework and wiring misalignment. The 2-pack packaging lowers procurement and stocking costs, while zinc-plated steel provides long-term durability. Overall, you gain faster commissioning, fewer service interventions due to cable damage, and improved reliability for compliant, scalable cable management across 800 mm-wide enclosures.
