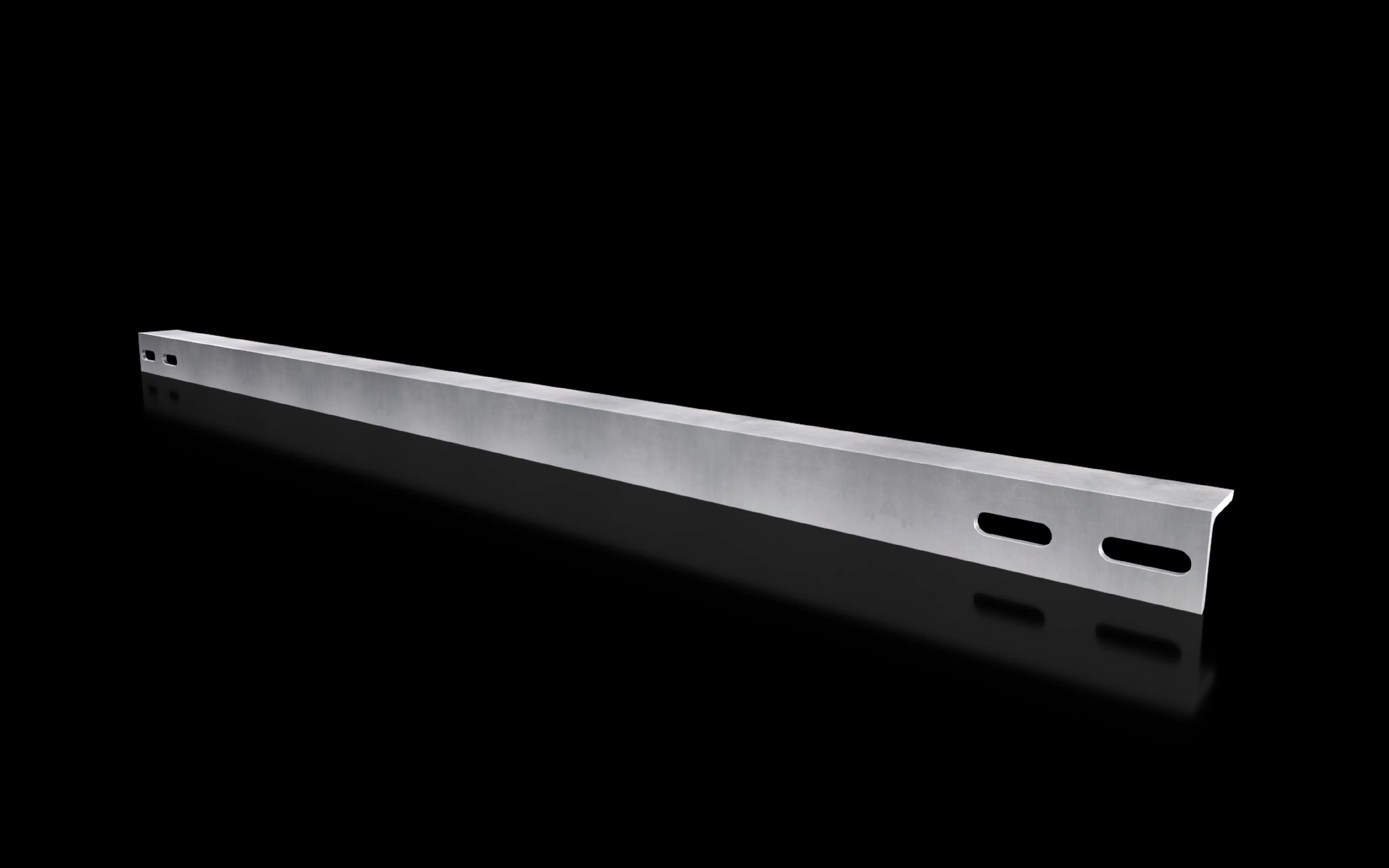

Rittal VX 8619.430 Cable Clamp Rail - 25 mm Pitch
Part Number: 8619430
Manufacturer
Rittal
Part number
8619430
Alt Part Number
VX 8619.430
Quick Summary
The Rittal VX 8619.430 cable clamp rail is designed to provide strain relief with cable entry for 1000 mm wide enclosures. It addresses the common challenge of maintaining neat, compliant cable routing when depth varies across horizontal sections or the base rails. This component aligns with ETIM EC000322 and ECLASS 27400604 classifications, supporting reliable procurement and interoperability, while its zinc-plated steel construction ensures durable service in demanding environments. For integrators, it reduces installation time and improves mounting reliability, while maintaining compatibility across VX, VX SE, and AX configurations to support diverse project needs.
Product Information
Extended Description
8619430 Rittal: VX Cable clamp rail, mounting angle, for W: 1000 mm
Article number
VX 8619.430
Product description
For strain relief with cable entry. Depth-variable mounting on a 25 mm pitch pattern on the horizontal enclosure section or in the base/plinth.
Material
Steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
VX installation options
In enclosure width 1000 mm, in the base
VX SE installation options
In enclosure width 1000 mm, in the base
AX installation options
In enclosure width 1000 mm, in conjunction with rail for interior installation AX and base configuration rail for AX
To fit
Base/plinth system AX
Dimensions
Length: 954 mm
To fit
Enclosure type: VX | VX SE | AX | CX one-piece console | Width: = 1,000 mm
Packs of
2 pc(s).
Weight/pack
5.25 kg
Customs tariff number
73269098
EAN
4028177921955
ETIM 9
EC000322
ECLASS 8.0
27400604
Product description
VX Cable clamp rail, mounting angle, for W: 1000 mm
Feature: Depth-variable mounting on a 25 mm pitch pattern. Benefit: Enables flexible, scalable cable management across enclosure sections, reducing misalignment and allowing precise strain-relief positioning. Application: Ideal for VX VX SE enclosures where depth varies along the horizontal run or base. The deployment improves installation efficiency and minimizes rework in tight panel spaces. Feature: Steel construction with zinc-plated finish. Benefit: Delivers rugged durability and corrosion resistance in industrial environments, extending service life and lowering maintenance costs. Application: Suitable for factory floors, climate-controlled cabinets, and outdoor-rated indoor installations. Feature: Includes assembly parts and straightforward installation options. Benefit: Speeds up on-site assembly, lowers labor hours, and minimizes downtime. Application: Quick retrofits or new builds with AX base rails and compatible enclosure systems. Feature: Compatibility with VX, VX SE, and AX base configurations. Benefit: Provides flexible integration across product families, simplifying part assortments and stock planning. Application: Multi-model deployments across large facilities. Feature: Pack size and weight per pack. Benefit: Predictable logistics and inventory control with two-pack units weighing 5.25 kg each. Application: Efficient warehouse handling and reduced shipment fragmentation.
Get a Quick Quote for a Rittal 8619430
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8619430?
Enquire Now
FAQs
Installation starts by positioning the rail on the horizontal enclosure section or base/plinth, using the 25 mm pitch for depth-variable mounting. The package includes assembly parts, and the rail is designed to fit VX, VX SE, and AX configurations, enabling quick alignment and secure strain relief for cables entering the enclosure.
Yes. The VX 8619.430 is designed to fit base/plinth systems for AX and supports VX and VX SE enclosures with base mounting. This compatibility simplifies design integration across multiple enclosure families and streamlines procurement for mixed-site installations.
The rail is constructed from steel and finished with a zinc-plated coating for corrosion resistance. This combination provides durability in challenging industrial environments while maintaining a slim profile suitable for cable management and strain relief components.
Each pack contains two units, with a weight of 5.25 kg per pack. This packaging supports convenient handling and stocking for large projects, while keeping components readily available for quick installations.
The primary function is to provide robust strain relief with cable entry, enabling depth-variable mounting on a 25 mm pitch pattern. This ensures reliable cable routing, reduces cable strain risk, and supports clean, maintainable installations across VX, VX SE, and AX enclosure families.
