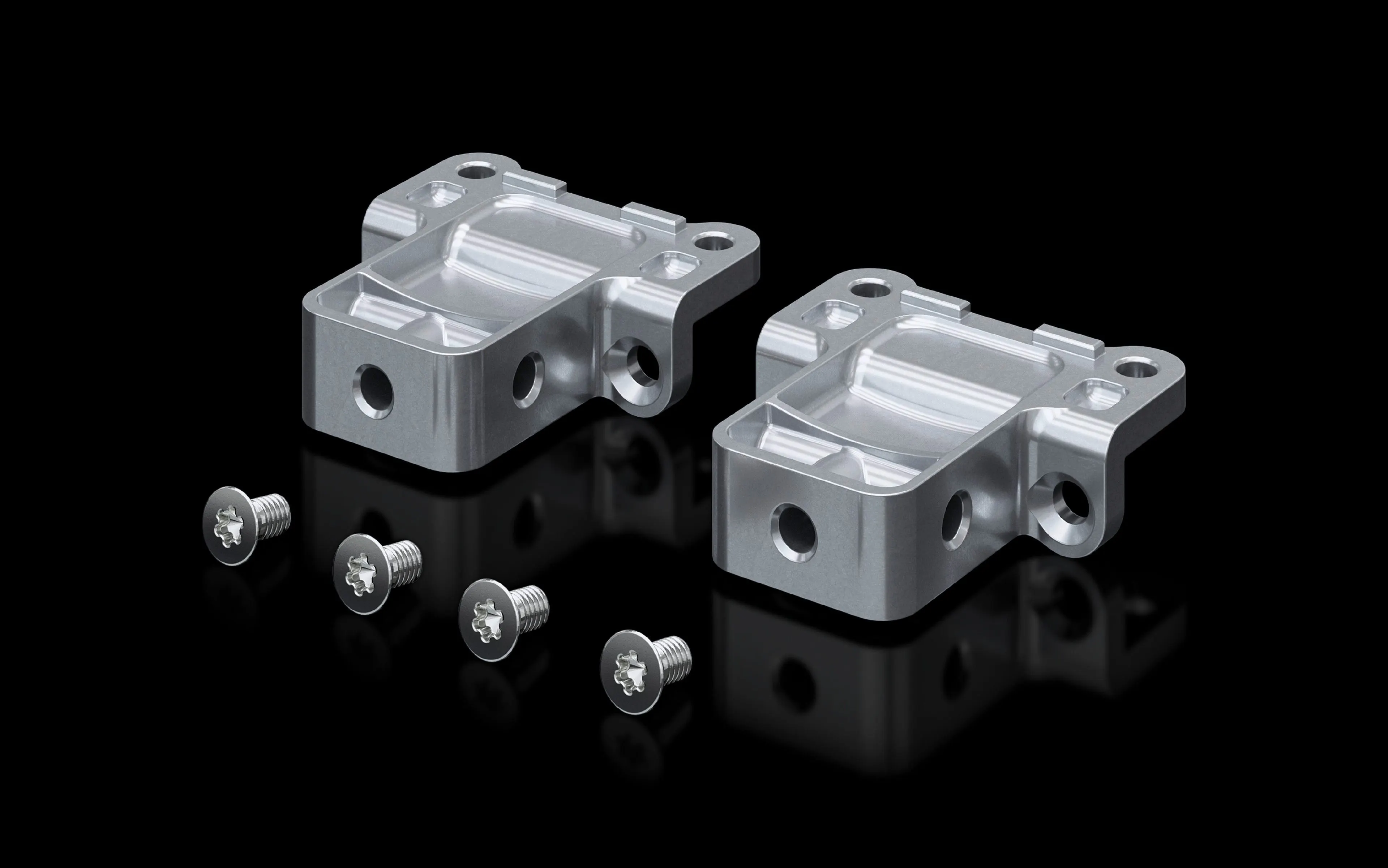

Rittal VX 8619.470 VX Support Bracket - Die-cast Zinc
Part Number: 8619470
Quick Summary
Rittal VX 8619.470 VX support bracket is a die-cast zinc accessory that attaches C rails to VX enclosures for flexible rail mounting. It resolves rail misalignment and streamlines installations across VX base/plinth systems and enclosure frames. Certification details such as CE or IP ratings are not listed in the provided data; verify CE and IP ratings on the official datasheet as applicable for your region. The product aligns with industry standards such as ETIM and ECLASS classifications for compatibility, ensuring predictable sourcing and replacement parts. This accessory adds value by reducing retrofit time and improving mounting reliability, while supporting multiple rail types and integration with VX adaptor rails, enhancing overall enclosure infrastructure efficiency.
Product Information
Extended Description
8619470 Rittal: VX support bracket / spacer
Article number
VX 8619.470
Material
Die-cast zinc
Supply includes
2 support / spacer brackets | Assembly parts
To fit
Enclosure type: VX | TS | VX SE
Weight/pack
0.298 kg
Packs of
2 pc(s).
Installation options
On the horizontal and vertical VX enclosure section
For threads
M8
To fit
for base/plinth system VX, sheet steel
Assembly instruction
In VX SE, on the enclosure section in conjunction with VX adaptor rail
Customs tariff number
73269098
EAN
4028177984820
ETIM 9
EC002620
ETIM 8
EC000721
ECLASS 8.0
27182003
Product description
VX support bracket / spacer
Feature: Die-cast zinc construction provides robust durability and corrosion resistance in harsh industrial environments. Business Impact: Extends service life and reduces maintenance cadence, lowering lifecycle costs. Application: Ideal for long-term rail mounting on VX enclosures; supports C rails and cable clamps with stable, vibration-resistant mounting. Feature: Broad compatibility with VX, TS, and VX SE enclosure types. Business Impact: minimizes part inventories and simplifies sourcing across multiple line configurations. Application: Great for mixed-panel configurations and retrofit projects in manufacturing and process facilities. Feature: Installation options on both horizontal and vertical VX enclosure sections. Business Impact: speeds up vertical/horizontal mounting workflows, reducing install time by eliminating bespoke adapters. Application: Useful in control panel builds and cabinet assemblies requiring flexible rail placement. Feature: Supplied as a two-bracket pack with M8 threads and 0.298 kg per pack. Business Impact: Improves logistics planning and reduces packaging waste while ensuring secure fastenings. Application: Compatible with base/plinth systems VX and sheet steel bases. Feature: Assembly instruction support in VX SE with VX adaptor rail. Business Impact: De-risks installation errors and ensures correct alignment. Application: Streamlines integration in VX SE projects and upgrade cycles.
Get a Quick Quote for a Rittal 8619470
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8619470?
Enquire Now
FAQs
The VX 8619.470 is a VX support bracket that serves as a spacer for attaching C rails or cable clamps to VX family enclosures. It enables flexible rail mounting across VX, TS, and VX SE frames and supports base/plinth installations, simplifying retrofit or new builds while maintaining alignment and stability.
Yes. VX 8619.470 is designed to fit VX, TS, and VX SE enclosure types and can be installed on both horizontal and vertical sections. It is suitable for base/plinth systems and sheet-steel bases, providing a versatile solution for multi-frame configurations.
Install the brackets by aligning the M8 holes on the enclosure or base section, then secure with appropriate fasteners through the M8 threads. Use the two brackets per pack and follow the VX SE instruction guidance for any adapter rail integration to ensure correct vertical and horizontal alignment.
VX 8619.470 is made from die-cast zinc, providing rigidity and corrosion resistance. Each pack includes two brackets with M8 threads and a total weight of approximately 0.298 kg. The design supports attachment of C rails or cable clamps to VX, TS, and VX SE enclosures, with compatibility to base/plinth systems.
Using VX 8619.470 reduces setup complexity by enabling quick, repeatable rail mounting on multiple VX frame types. The two-bracket pack minimizes procurement fragmentation, lowers retrofit time, improves alignment reliability, and contributes to lower maintenance costs over the enclosure’s lifecycle through durable, corrosion-resistant construction.
