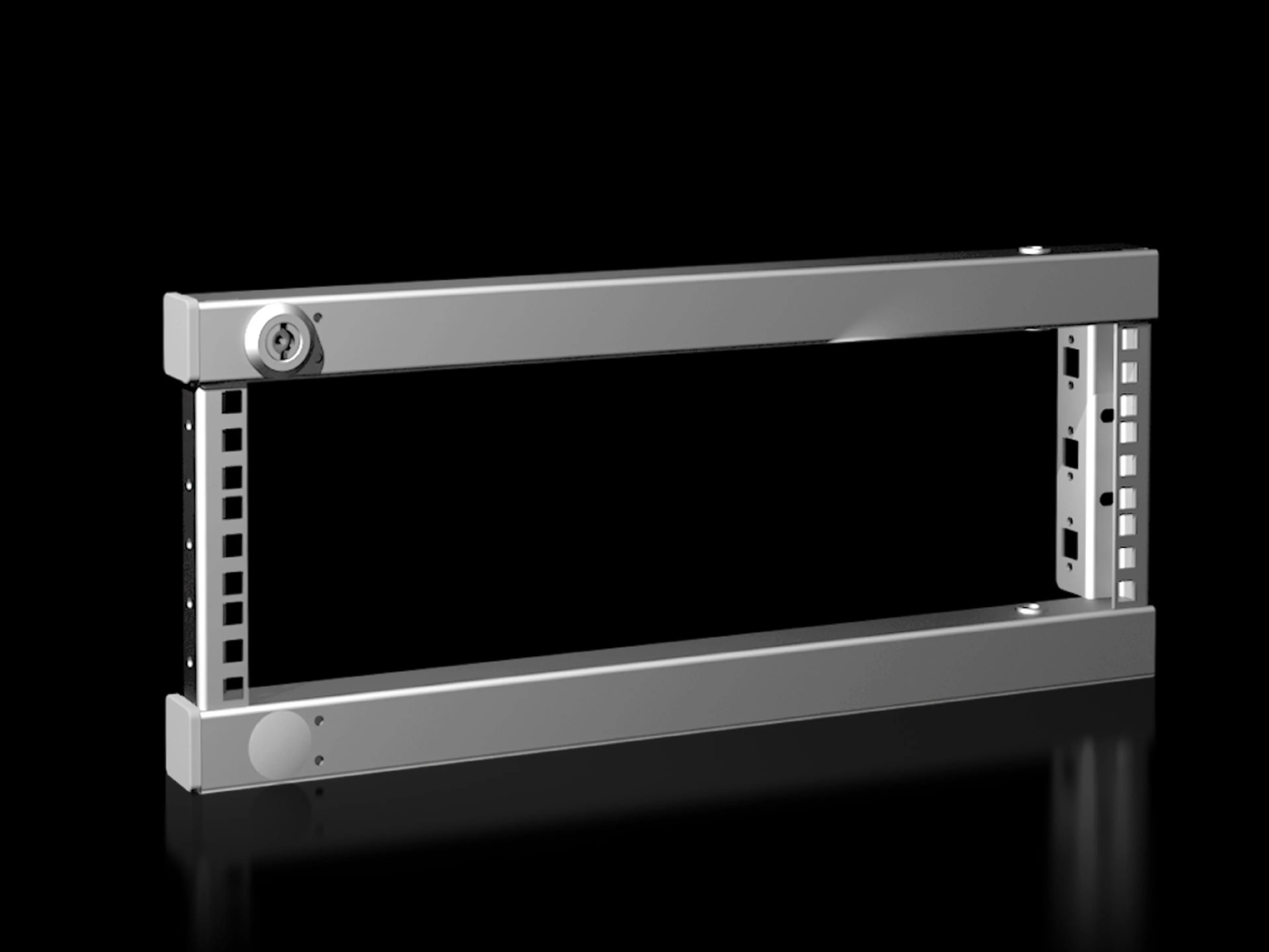

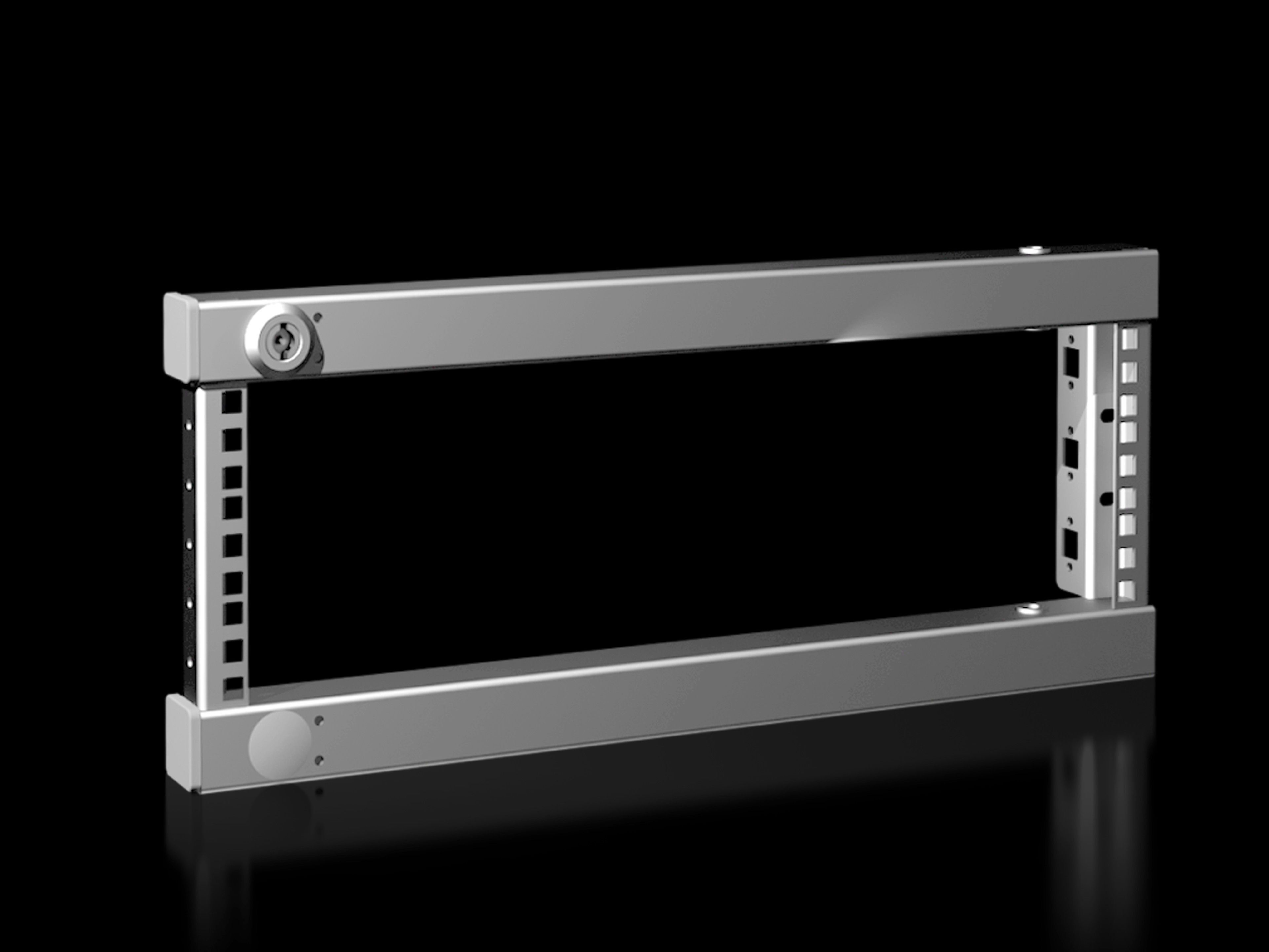

Rittal VX 8619.500 Swing Frame - 3U, 19-inch
Part Number: 8619500
Manufacturer
Rittal
Part number
8619500
Alt Part Number
VX 8619.500
Quick Summary
The Rittal VX 8619.500 Swing Frame is a compact mounting solution for 19-inch equipment in control cabinets. It enables easy front-access mounting of 3U, 482.6 mm (19") hardware while preserving cabinet integrity. In industrial environments, meeting reliability and safety expectations is critical, and standards such as CE marking and IP protection guide enclosure design decisions. This frame uses sheet steel with a zinc-plated finish and includes two 130° hinges plus a cam lock, delivering robust operation in busy installations. Compatible with VX, VX SE, and AX enclosures, it supports efficient internal mounting when paired with the AX installation kit, reducing install time and total cost of ownership.
Product Information
Extended Description
8619500 Rittal: VX Swing frame, small, for W: 600/800 mm, 3 U
Article number
VX 8619.500
Product description
For mounting 482.6 mm (19") equipment.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
2 x 130° hinges | Cam with double-bit lock insert | Parts for attaching to the installation kit
Note
The swing frame stay is required to lock the open swing frame
Note on Model No.
The installation kit AX is additionally required for internal mounting in AX
To fit
Enclosure type: VX | VX SE | AX | Width: = 600 mm | = 800 mm | Height: ≥ 380 mm
To fit enclosure type
VX
Units
3 U
To fit enclosure type
VX
Packs of
1 pc(s).
Weight/pack
4.6 kg
Customs tariff number
94039910
EAN
4028177919563
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
VX Swing frame, small, for W: 600/800 mm, 3 U
Feature: Compact swing frame designed for W: 600/800 mm and 3 U height. Business impact: Enables efficient use of limited cabinet space while maintaining easy access for service and maintenance. Application: Ideal for front-loading 482.6 mm (19") equipment in standard VX systems. Long-tail keywords integrated: 19-inch mounting frame, VX swing frame, 3U enclosure accessory. Feature: Sheet steel construction with zinc-plated surface. Business impact: Enhances corrosion resistance and longevity in harsh industrial environments, lowering replacement frequency. Application: Suitable for factory floors and outdoor-adjacent installations; supports long service life with minimal maintenance. Long-tail keywords integrated: zinc-plated enclosure hardware, corrosion-resistant frame, industrial enclosure accessories. Feature: Supplied with 2 x 130° hinges and a cam with double-bit lock insert. Business impact: Reduces procurement steps and speeds up on-site assembly, improving project timelines. Application: Quick-release access for servicing and safe locking in open or closed positions; compatible with standard installation kits. Long-tail keywords integrated: installation-ready hinges, cam lock insert, quick-install access. Feature: Documentation and compatibility notes: fits VX, VX SE, AX; width options 600/800 mm; 3 U; weight per pack 4.6 kg; packs of 1. Business impact: Simplifies design planning and logistics, enabling accurate bill-of-materials and cost forecasting. Application: Deployable across multiple enclosure families with AX for internal mounting; supports streamlined procurement and fast commissioning. Long-tail keywords integrated: VX compatibility, AX installation kit, 3U frame, lightweight enclosure accessory. Feature: Practical usage guidance and caveats. Business impact: Clear notes prevent mis-installation (swing frame stay required to lock the open swing frame; AX installation kit required for internal mounting in AX). Application: Reduces field errors and warranty concerns by ensuring correct mounting sequence. Long-tail keywords integrated: swing frame stay, internal mounting AX, enclosure mounting notes.
