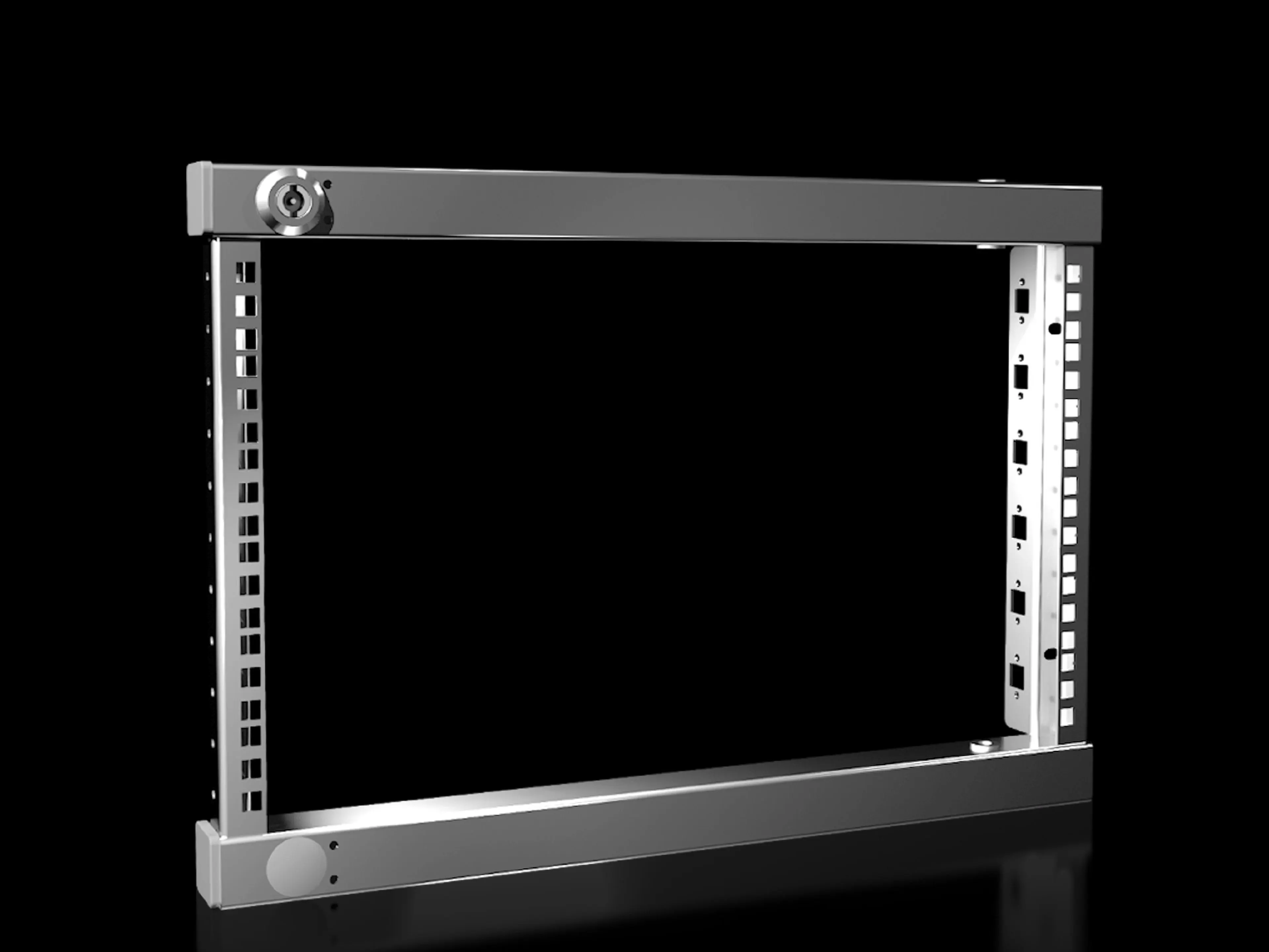

Rittal VX 8619.510 Swing Frame - 6U, Zinc-plated
Part Number: 8619510
Manufacturer
Rittal
Part number
8619510
Alt Part Number
VX 8619.510
Quick Summary
Rittal VX 8619.510 Swing Frame is a compact mounting accessory that secures 19-inch equipment in VX enclosures. It provides a stable platform for 482.6 mm (19") hardware while keeping service access straightforward. The swing frame helps installers manage cable routing and front-assembly access without sacrificing enclosure integrity. This component addresses the common challenge of keeping 19" gear aligned and safely locked during maintenance, with two 130-degree hinges and a cam with a double-bit lock insert for reliable closure. CE-compliant by design for EU environments, and built from zinc-plated sheet steel for corrosion resistance. For integrators, the VX frame integrates seamlessly with VX, VX SE, and AX series installations, supporting 600 or 800 mm widths and 6U height. It reduces downtime and simplifies procurement and assembly.
Product Information
Extended Description
8619510 Rittal: VX Swing frame, small, for W: 600/800 mm, 6 U
Article number
VX 8619.510
Product description
For mounting 482.6 mm (19") equipment.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
2 x 130° hinges | Cam with double-bit lock insert | Parts for attaching to the installation kit
Note
The swing frame stay is required to lock the open swing frame
Note on Model No.
The installation kit AX is additionally required for internal mounting in AX
To fit
Enclosure type: VX | VX SE | AX | Width: = 600 mm | = 800 mm | Height: ≥ 600 mm
To fit enclosure type
VX
Units
6 U
To fit enclosure type
VX
Packs of
1 pc(s).
Weight/pack
3.06 kg
Customs tariff number
94039910
EAN
4028177919570
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
VX Swing frame, small, for W: 600/800 mm, 6 U
Material and finish: The swing frame is manufactured from sheet steel and zinc-plated to resist corrosion, extending enclosure life in harsh industrial environments. Business impact: Lower maintenance costs and longer service intervals, improving total cost of ownership. Application: Ideal for 19" equipment in VX enclosures, ensuring durable mounting across facilities.Compatibility and sizing: Designed for VX, VX SE, and AX enclosures with widths of 600 or 800 mm and a height of 6U. Business impact: Standardized fit across multiple cabinet families reduces SKU complexity and speeds up project scoping. Application: Suitable for common 482.6 mm (19") rack deployments in control rooms and machine rooms.Hardware and security: Includes 2 x 130° hinges and a cam with double-bit lock insert; comes with parts to attach to the installation kit. Swing frame stay is required to lock the open swing frame. Business impact: Improves safety during maintenance and prevents accidental frame movement. Application: Fits internal mounting in AX when used with installation kit AX.Packaging and weight: Packs contain 1 unit per pack with a weight of 3.06 kg. Business impact: Simple logistics and predictable shipping costs; easy staging on site. Application: Streamlines procurement for batch cabinet projects.Installation and installation-kit compatibility: The kit AX is additionally required for internal mounting in AX. Business impact: Reduces rework and speeds up commissioning by providing a proven mounting pathway. Application: Compatible across VX, VX SE, and AX families for mix-and-match deployment.
