Rittal VX 8619.540 Swing Frame - Zinc-plated Enclosure
Part Number: 8619540
Manufacturer
Rittal
Part number
8619540
Alt Part Number
VX 8619.540
Quick Summary
Rittal VX 8619.540 Swing Frame is designed to mount 482.6 mm (19”) equipment in VX enclosures. In space-constrained panels, installers struggle to combine easy access, secure locking, and reliable alignment. It aligns with ETIM 9 EC002620 and ECLASS 8.0 27189261 standards to ensure interoperability and procurement consistency. This 15U, sheet-steel frame with zinc plating delivers durable performance while simplifying installation and maintenance in factory automation and control cabinet environments.
Product Information
Extended Description

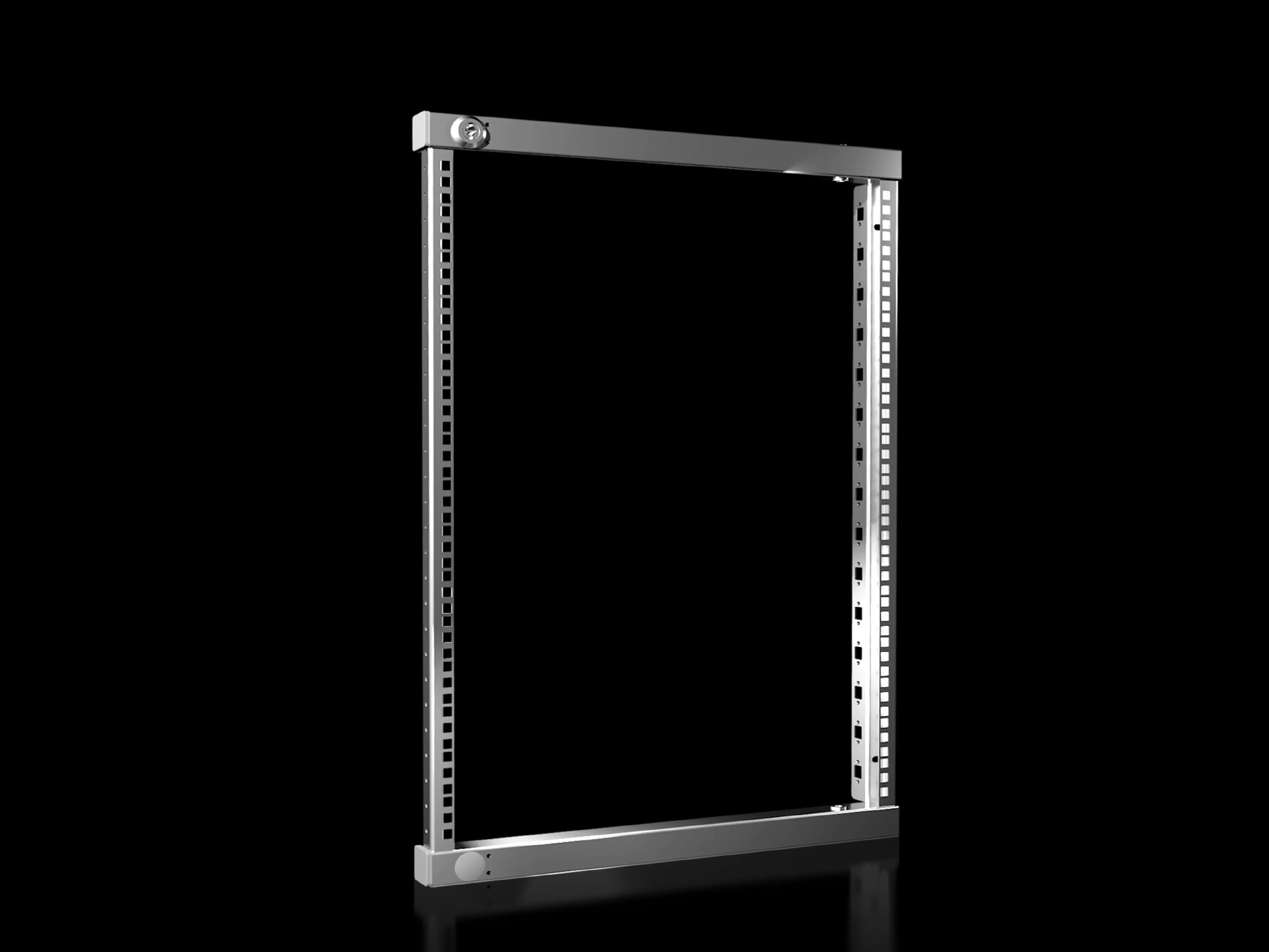

8619540 Rittal: VX Swing frame, small, for W: 600/800 mm, 15 U
Article number
VX 8619.540
Product description
For mounting 482.6 mm (19") equipment.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
2 x 130° hinges | Cam with double-bit lock insert | Parts for attaching to the installation kit
Note
The swing frame stay is required to lock the open swing frame
To fit
Enclosure type: VX | VX SE | Width: = 600 mm | = 800 mm
To fit enclosure type
VX
Units
15 U
To fit enclosure type
VX
Packs of
1 pc(s).
Weight/pack
4.14 kg
Customs tariff number
94039910
EAN
4028177919600
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
VX Swing frame, small, for W: 600/800 mm, 15 U
The swing frame uses sheet steel with a zinc-plated surface, delivering corrosion resistance and long service life in demanding environments. This reduces maintenance costs and downtime for fleets of control cabinets and industrial enclosures. It is designed to fit VX enclosure types with a width of 600 mm or 800 mm and supports 482.6 mm (19”) equipment in a compact 15 U configuration, enabling scalable installations for machine builders and system integrators. Supplied with 2 x 130° hinges, cam with double-bit lock insert, and installation kit parts, it streamlines on-site assembly and minimizes field sourcing of components. A dedicated swing frame stay is required to lock the open swing frame, ensuring safe access during maintenance and configuration changes. Packaged as a single 1 pc unit with a weight of 4.14 kg, the VX 8619.540 is straightforward to handle and ship, improving logistics and installation planning. The VX swing frame remains compatible with VX and VX SE enclosure families, enhancing overall system interoperability and reducing integration risks in mixed-brand automation projects.
