Rittal VX 8619.610 Installation Kit - 1,500 N
Part Number: 8619610
Manufacturer
Rittal
Part number
8619610
Alt Part Number
VX 8619.610
Quick Summary
The Rittal VX 8619.610 Installation Kit enables swing-frame mounting for AX, VX, and SE enclosures. In tight control-panel spaces, precise alignment and fast, tool-friendly installation are critical to project timelines. Certification details such as CE or IP ratings are not listed in this data; please consult the official datasheet to confirm applicable standards. This installation kit is designed for direct mounting on the enclosure section in the foremost position and works in harmony with the AX range when used with the appropriate mounting kit. By standardizing fit and finish, it helps reduce field rework, improves rigidity, and supports scalable, cost-efficient enclosure configurations for growing automation architectures.
Product Information
Extended Description

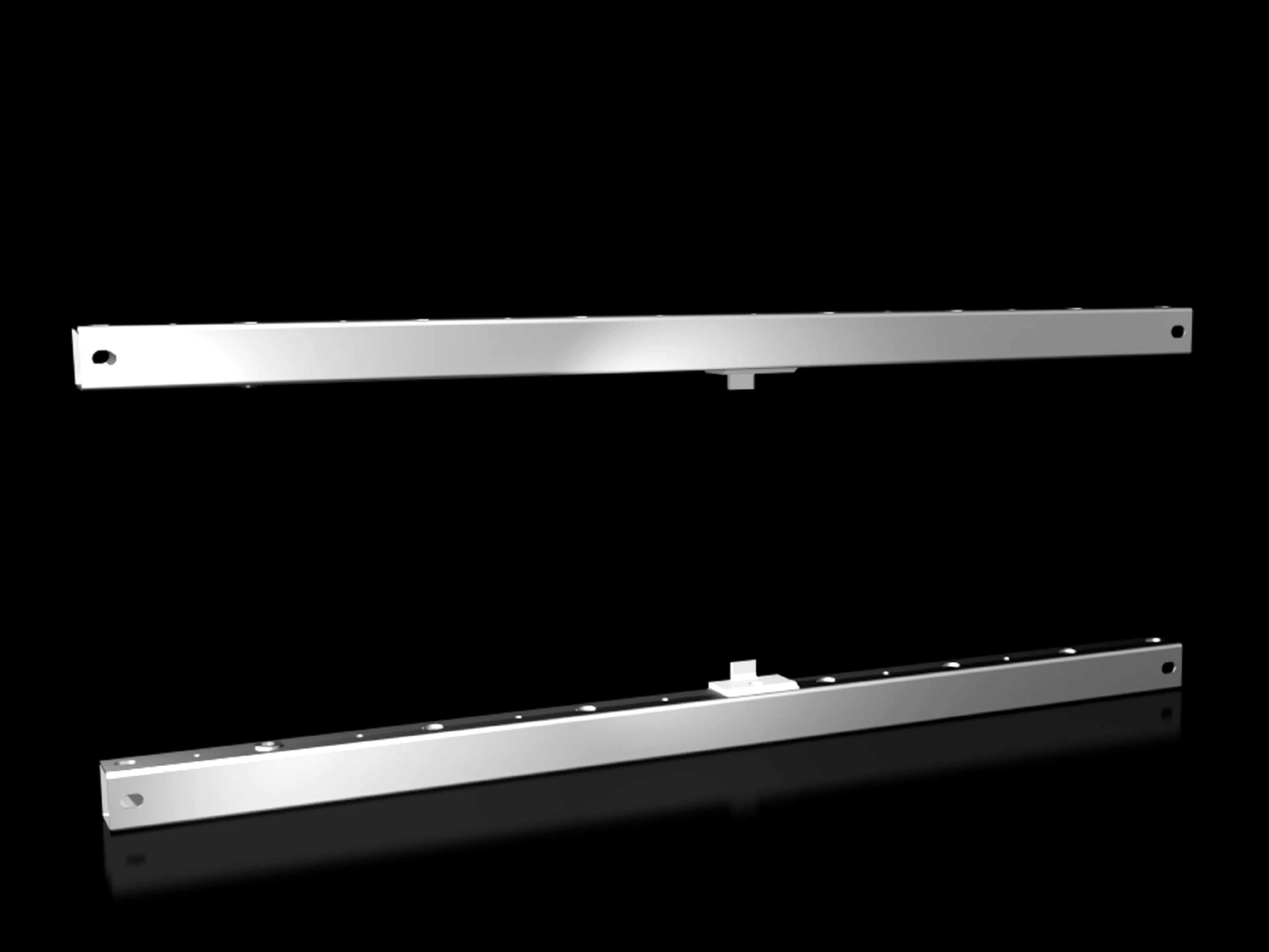

8619610 Rittal: VX Installation kit, for swing frame, small, for W: 800 mm
Article number
VX 8619.610
Product description
For mounting the small swing frame in AX, VX, SE or a partial mounting plate (in conjunction with a hinge for partial mounting plates).
Applications
For VX: Directly onto the enclosure section in the foremost position
Material
Sheet steel
Surface finish
Nickel-plated
Supply includes
Assembly parts
Installation options
Directly on the enclosure section in the foremost position
Note
For installation in AX sheet steel, only in conjunction with mounting kit AX
Load capacity (static)
1,500 N
To fit
Width: = 800 mm
Packs of
1 pc(s).
Weight/pack
3.3 kg
Customs tariff number
73269098
EAN
4028177919631
ETIM 9
EC002620
ECLASS 8.0
27189234
Product description
VX Installation kit, for swing frame, small, for W: 800 mm
Direct mounting on the enclosure section in the foremost position is a core feature, delivering precise alignment with minimal adjustment. The business impact is faster install times and lower risk of misfit components, translating to reduced field labor costs on project sites. This approach is particularly beneficial for VX swing frames, allowing immediate, reliable operation and maintaining panel integrity during door operation and vibration. The material choice—sheet steel with a nickel-plated finish—provides corrosion resistance and structural rigidity, extending service life in demanding environments and ensuring consistent performance across installations. With a static load capacity of 1,500 N, the kit supports typical swing-frame loads without overstress, reducing the need for alternative support hardware and enabling compliant, durable mounting. Compatibility and installation advantages include a compact 800 mm footprint, inclusion of assembly parts, and a pack of a single unit, simplifying logistics and on-site handling. These characteristics translate into faster commissioning, reduced snag items, and a smoother upgrade path for AX and VX enclosure families. In practice, the VX 8619.610 aligns with standard enclosure processes, minimizes field customization, and supports scalable configurations for evolving industrial automation needs.
Get a Quick Quote for a Rittal 8619610
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8619610?
Enquire Now
FAQs
The VX 8619.610 is designed for swing-frame mounting on AX, VX, and SE enclosures, with direct installation onto the foremost enclosure section. It targets a width of 800 mm and includes assembly parts to streamline the mounting process. In AX sheet-steel installations, it should be used in conjunction with mounting kit AX to ensure proper alignment and mechanical integrity.
The installation kit provides a static load capacity of 1,500 N, suitable for typical swing-frame applications in compact enclosures. It is manufactured from sheet steel and finished with nickel plating, offering robust mechanical strength and corrosion resistance for longer service life in industrial environments.
Industries with compact enclosure layouts, frequent panel access, or modular automation architectures benefit from the VX 8619.610. It supports quick, reliable swing-frame mounting for VX, AX, and SE enclosures, enabling rapid commissioning in data centers, process automation, and factory automation environments where space is at a premium and uptime is critical.
The provided data does not specify CE, IP, or other regulatory certifications for VX 8619.610. For confirmation on certifications and conformance to regional standards, refer to the official datasheets or contact Rittal technical support before deployment in regulated environments.
By enabling direct mounting on the enclosure’s foremost section and including assembly parts, the kit reduces alignment errors and on-site handling time. The 800 mm width and 1,500 N capacity cover common swing-frame requirements, decreasing the need for additional hardware. Packaged as a single-unit solution (1 piece per pack) with nickel-plated steel construction, it supports repeatable installations, lower field labor, and faster project completion—contributing to a lower total cost of ownership over the enclosure lifecycle.
