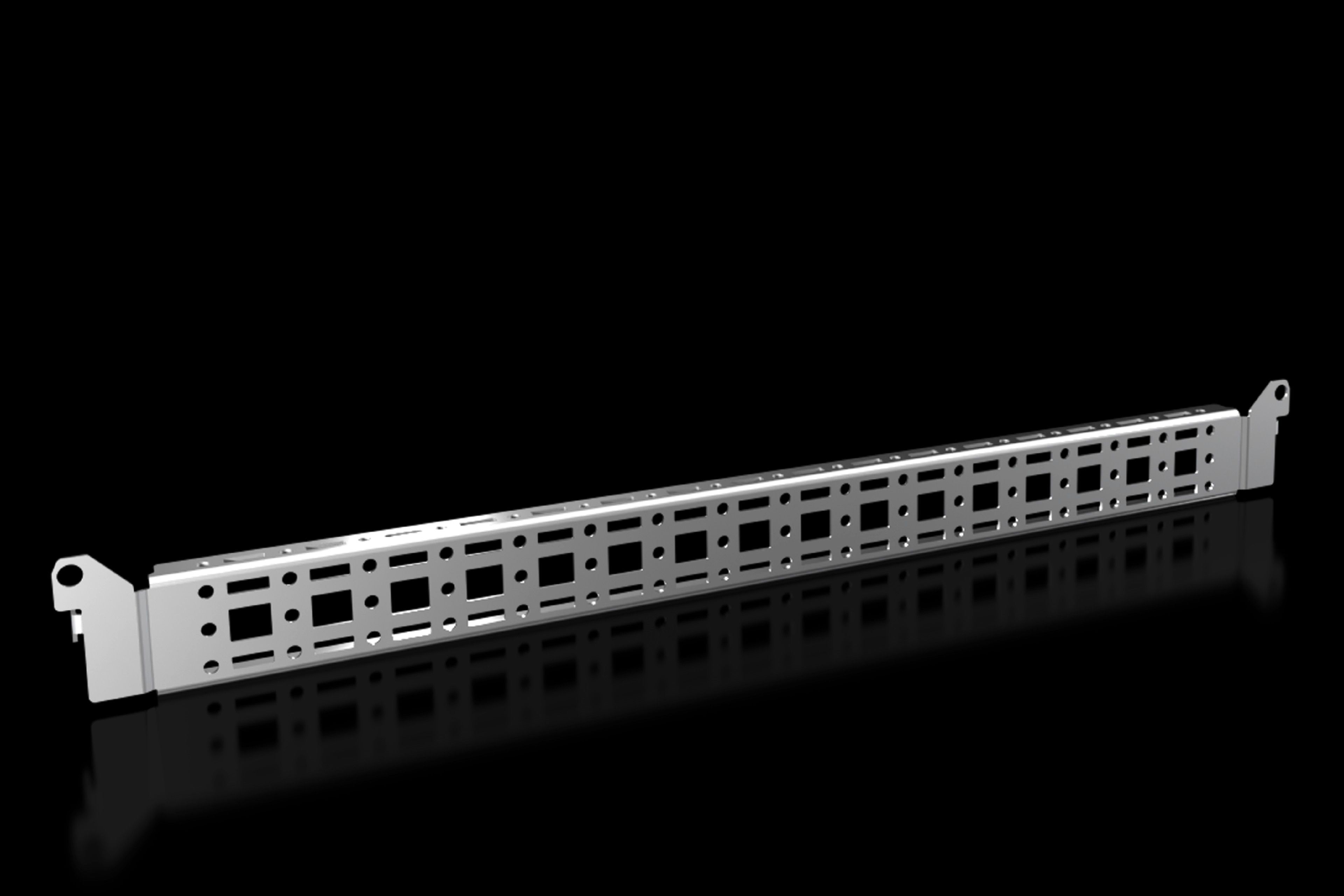

Rittal VX 8619.720 Punched Section - Zinc-plated
Part Number: 8619720
Manufacturer
Rittal
Part number
8619720
Alt Part Number
VX 8619.720
Quick Summary
Rittal VX 8619.720 Punched Section is a mounting accessory that secures cable ducts and door-mounted equipment in enclosures. Integrators often face misaligned fixing points and insufficient space when retrofitting 600 mm door enclosures, which can lead to rework and delays. Note that the data lists sheet steel with zinc‑plating and mounting flange, but certification details must be verified (CE, IP, SIL) with your supplier. For procurement and installation, this part improves cable management and offers flexibility for VX/VX SE and AX configurations. With a 4‑pack option and compatible installation options, it scales from small projects to larger deployments while maintaining reliability.
Product Information
Extended Description
8619720 Rittal: VX Punched section, with mounting flange 14 x 39 mm, for door width: 600 mm
Article number
VX 8619.720
Product description
For attaching cable ducts, cable conduit holders, equipment installed on the door, etc.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Distance between fixing points
475 mm
To fit door width
600 mm
VX installation options
In door width 600 mm
VX SE installation options
In door width 600 mm
AX installation options
In enclosure width 500 mm and in enclosure height 600 mm, in conjunction with rail for interior installation AX
Installation options, AX plastic
In door width 600 mm
Installation options for 3-part AX
In the enclosure depth 673 mm or in the width of the wall section
PC installation options
In door width 600 mm
CX installation options
In door width 600 mm
Assembly instruction
For installation in AX sheet steel, only in conjunction with rail for interior installation AX
Note
For installing your own components on the punched section with mounting flange, metal screws or self-tapping M5 screws are required
To fit
Enclosure type:Â VX | VX SE | PC | AX | AX wall-mounted enclosure, 3-part | CX one-piece console | CX pedestal | Suitable for width or height or depth:Â 600 mm
Packs of
4 pc(s).
Weight/pack
1.16 kg
Customs tariff number
73269098
EAN
4028177924697
ETIM 9
EC002620
ECLASS 8.0
27189234
Product description
VX Punched section, with mounting flange 14 x 39 mm, for door width: 600 mm
Feature → Business Impact → Application: VX 8619.720’s punched section and mounting flange (14 x 39 mm) provide a robust anchor for attaching cable ducts and door-mounted equipment, reducing installation time and error rates during enclosure outfitting in 600 mm door systems. This translates to faster project completion and improved first‑time fix rates in panel builds and data centers. Application: Ideal for attach points near enclosures’ doors to streamline cable routing and on‑door accessories while keeping interior space orderly and accessible. Feature → Business Impact → Application: Sheet steel with zinc-plated finish delivers corrosion resistance in typical industrial environments, extending service life and lowering maintenance costs across plant floors and outdoor installations. Application: Suitable for both indoor and sheltered outdoor environments where exposure is moderate and reliability is critical. Feature → Business Impact → Application: Broad VX family compatibility (VX, VX SE, PC, AX, CX variants) plus explicit installation options (in door width 600 mm; AX interior rails) enables one‑stop sourcing without redesigning mounting schemes. Application: Simplifies procurement and accelerates skids and retrofits, especially when upgrading legacy enclosures. Feature → Business Impact → Application: Supplied parts and documented installation notes reduce BOM fragmentation and support calls; users can plan the wiring and mounting sequence with confidence. Application: Useful for upgrade projects and new builds, ensuring consistent results across multiple enclosures. Feature → Business Impact → Application: Packing configuration (4 pc/s) and weight (1.16 kg per pack) supports scalable installation and straightforward logistics. Application: Facilitates project planning, warehousing, and ship‑to‑site workflows. Note: For installing your own components on the punched section, metal screws or self‑tapping M5 screws are required, aligning with common fastener practices in industrial OEMs.
Get a Quick Quote for a Rittal 8619720
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8619720?
Enquire Now
FAQs
Begin by aligning the 475 mm fixing-point spacing with the enclosure frame and door. Attach the punched section using mounting points and 14 x 39 mm flange features, ensuring the door width is 600 mm as specified. Use the included assembly parts and, if needed, M5 screws for your own components per the note. This approach minimizes misalignment and speeds up installation across VX and VX SE families.
The component is made from sheet steel with a zinc-plated surface finish, delivering corrosion resistance suitable for typical industrial environments. The zinc plating extends component life in humid or mildly corrosive conditions, while the sheet steel provides structural rigidity for cable-duct mounting and door-mounted accessories.
Yes, installation options include AX in enclosure width 500 mm and height 600 mm in conjunction with the AX rail for interior installation, plus the AX plastic option in door width 600 mm. This compatibility supports integrated mounting strategies across multiple enclosure families, reducing the need for adapters and simplifying project planning.
The provided data does not list specific certifications such as CE, IP, or SIL. When sourcing, verify regional compliance requirements with your supplier or system integrator to ensure suitability for your application and operating environment. Cross-check with standards your organization mandates for enclosure components and door-mounted accessories.
Using the VX 8619.720 reduces installation time by providing a ready-to-fit mounting section with standardized fixing points and included assembly parts. The 4‑pack configuration supports scalable deployment, while compatibility with VX, VX SE, PC, AX, and CX families minimizes part scarcity and logistics complexity, delivering lower lifecycle costs and more predictable project timelines.
