Rittal VX 8619.760 Punched Section - AX Compatibility
Part Number: 8619760
Manufacturer
Rittal
Part number
8619760
Alt Part Number
VX 8619.760
Quick Summary
The VX 8619.760 punched section from Rittal provides mounting flange support for AX enclosure interiors. Engineers rely on secure, tidy attachment points to route cables and mount door-mounted accessories without compromising enclosure integrity. A common challenge is achieving consistent spacing and safe fastening when upgrading or resizing layouts mid-project, especially in compact panels. This accessory helps standardize installation with a fixed 575 mm distance between fixing points, and a 14 x 39 mm punched profile that aligns with AX rails. It is made from sheet steel and zinc-plated for durability in harsh environments. For cost-effective upgrades, 4-piece packs and compatible mounting hardware streamline procurement and minimize downtime, while maintaining compliance and performance. CE conformity and IP-rated protection expectations are often considered in AX installations, with SIL-ready options in broader configurations.
Product Information
Extended Description

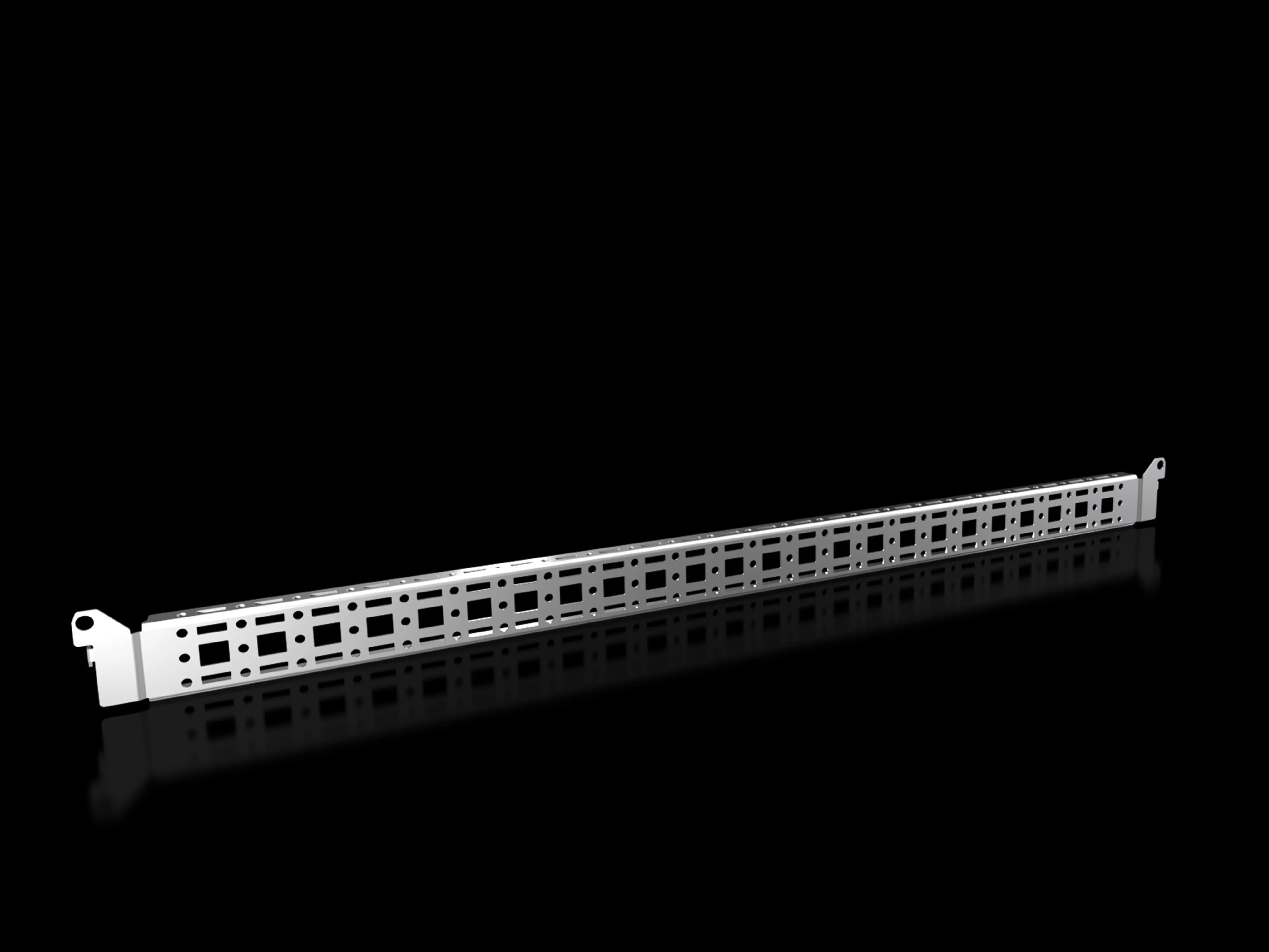

8619760 Rittal: VX Punched section with mounting flange, 14 x 39 mm , for H: 700 mm
Article number
VX 8619.760
Product description
For attaching cable ducts, cable conduit holders, equipment installed on the door, etc.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Distance between fixing points
575 mm
AX installation options
In enclosure width 600 mm and in enclosure height 700 mm, in conjunction with rail for interior installation AX
Assembly instruction
For installation in AX sheet steel, only in conjunction with rail for interior installation AX
Note
For installing your own components on the punched section with mounting flange, metal screws or self-tapping M5 screws are required
To fit
Enclosure type: AX | Suitable for width or height or depth: 700 mm
Packs of
4 pc(s).
Weight/pack
1.2 kg
Customs tariff number
73269098
EAN
4028177926851
ETIM 9
EC002620
ECLASS 8.0
27189234
Product description
VX Punched section with mounting flange, 14 x 39 mm , for H: 700 mm
Feature this punched section brings is a mounting flange that accepts cable ducts, conduit holders, and door-mounted equipment; the business impact is improved reliability and faster install times, reducing field labor costs. Application insight shows the 14 x 39 mm punching pattern and 575 mm spacing enable repeatable, standards-compliant layouts in AX enclosures, supporting cleaner cable management and safer component mounting. Feature the sheet steel construction with zinc-plated surface for corrosion resistance; the business impact is extended service life in harsh environments and reduced maintenance costs. Feature 4-piece packs at 1.2 kg per pack streamline procurement and inventory control; the business impact is predictable scheduling and lower logistical overhead. Feature AX compatibility is reinforced by explicit installation notes and a 700 mm height fit, ensuring straightforward integration in width 600 mm and height 700 mm AX configurations. Application relevance includes cable ducting, conduit holders, and accessories mounted on doors, with metal screws or self-tapping M5 screws required for secure installation. These considerations address common objections about compatibility and installation complexity by offering a ready-to-use, standards-aligned accessory that accelerates project timelines while preserving enclosure integrity and protection.
Get a Quick Quote for a Rittal 8619760
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8619760?
Enquire Now
FAQs
The VX 8619.760 is designed for AX enclosures with 600 mm width and 700 mm height, using a 575 mm distance between fixing points. It includes assembly parts and is compatible with interior AX rails for straightforward integration.
The 14x39 mm punched profile provides predictable mounting locations to attach cable ducts, conduit holders, and door-mounted accessories, enabling tidy cable routing and secure enclosure access while preserving panel integrity.
Yes. The accessory is specified for AX installations with width 600 mm and height 700 mm, and it aligns with the AX interior rail system to ensure proper fit and mounting reliability.
To install your own components on the punched section with mounting flange, metal screws or self-tapping M5 screws are required, as noted in the installation guidance.
VX 8619.760 ships in packs of four, with a weight of 1.2 kg per pack, streamlining stock management and enabling predictable project planning on larger AX deployment projects.
