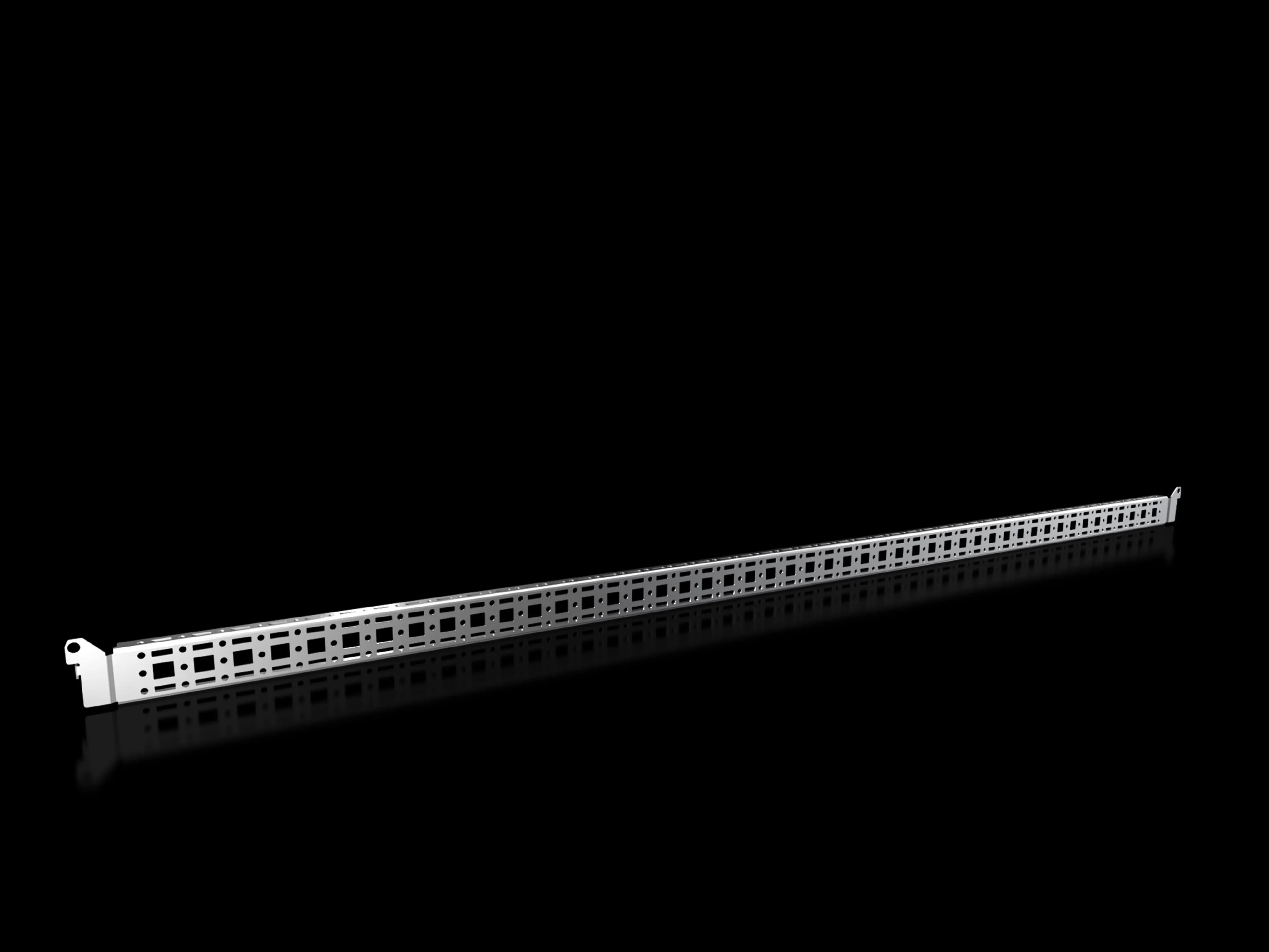

Rittal VX 8619.780 Punched Section - Zinc-Plated
Part Number: 8619780
Manufacturer
Rittal
Part number
8619780
Alt Part Number
VX 8619.780
Quick Summary
The Rittal VX 8619.780 Punched Section is used to secure cable ducts, conduit holders, and equipment onto the door within AX enclosure systems. This addresses the common challenge of achieving reliable, neatly organized interior mounting without costly add-ons or custom fabrication. It aligns with ETIM EC002620 and ECLASS 27189234 specifications, and uses zinc-plated sheet steel for durable, corrosion-resistant performance in harsh environments. For value-focused buyers, the solution integrates smoothly with AX installation workflows while supporting scalable, repeatable ducting layouts and standard hardware compatibility to reduce lead times and procurement complexity.
Product Information
Extended Description
8619780 Rittal: VX Punched section with mounting flange, 14 x 39 mm , for H: 1400 mm
Article number
VX 8619.780
Product description
For attaching cable ducts, cable conduit holders, equipment installed on the door, etc.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Distance between fixing points
1,275 mm
AX installation options
In enclosure height 1400 mm, in conjunction with rail for interior installation AX
Assembly instruction
For installation in AX sheet steel, only in conjunction with rail for interior installation AX
Note
For installing your own components on the punched section with mounting flange, metal screws or self-tapping M5 screws are required
To fit
Enclosure type: AX | Suitable for width or height or depth: 1,400 mm
Packs of
4 pc(s).
Weight/pack
2.7 kg
Customs tariff number
73269098
EAN
4028177926844
ETIM 9
EC002620
ECLASS 8.0
27189234
Product description
VX Punched section with mounting flange, 14 x 39 mm , for H: 1400 mm
Feature: Punched section with mounting flange, 14 x 39 mm, designed for H: 1400 mm. Business Impact: Enables secure mounting of cable ducts, conduit holders, and door-mounted equipment, reducing risk of movement and vibration in demanding industrial spaces. Application: Ideal for AX enclosure integrations where cable management and door-mounted components must stay aligned across the panel height. Long-tail keywords: AX enclosure accessory, cable duct mounting, enclosure mounting flange. Feature: Zinc-plated sheet steel with assembly parts included. Business Impact: Improves corrosion resistance and accelerates installation by delivering ready-to-use parts, cutting installation time and labor costs. Application: Suitable for general-purpose industrial environments requiring durable hardware and straightforward sourcing. Long-tail keywords: zinc-plated hardware, assembly parts included, durable enclosure hardware. Feature: Fixed point spacing 1,275 mm. Business Impact: Ensures consistent alignment with existing rails and mounting patterns, reducing misfit and rework. Application: Especially beneficial for large AX assemblies with multiple sections or modules. Long-tail keywords: fixing point spacing, assembly alignment, standard mounting grid. Feature: AX-specific installation notes and fitment guidance. Business Impact: Minimizes guesswork by providing clear compatibility with AX interior rails and 1400 mm height enclosures, improving first-time fitment. Application: Supports streamlined procurement for standard AX configurations. Long-tail keywords: AX installation options, interior rail compatibility, standard AX height. Feature: Supplied as packs of four with weight per pack 2.7 kg. Business Impact: Optimizes stocking and logistics for batch purchases, enabling predictable warehousing and cost planning. Application: Commonly ordered as a set for mid to large installations. Long-tail keywords: packs of 4, weight per pack, bulk enclosures. Note: Installation requires metal screws or self-tapping M5 screws when mounting your own components on the punched section. Business Impact: Reduces additional hardware searches and ensures secure attachment of customized equipment. Application: Critical for users integrating bespoke components on the punched area.
Get a Quick Quote for a Rittal 8619780
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8619780?
Enquire Now
FAQs
The VX 8619.780 is a punched section with mounting flange designed for AX enclosures, intended to secure cable ducts, conduit holders, and equipment onto the door. Its 14 x 39 mm punch pattern and 1,275 mm fix-point spacing support clean, repeatable mounting across H 1400 mm systems, reducing time spent on door-side installations.
Installation requires using it with AX rail-based interior installation and a compatible sheet steel, zinc-plated finish. The product ships with assembly parts and has a fixed-point spacing of 1,275 mm. For mounting components onto the punched section, metal screws or self-tapping M5 screws are recommended to ensure secure attachment.
Yes. The punched section is specified for AX enclosure systems and is designed to work in conjunction with the AX interior rail for H 1400 mm. This compatibility simplifies integration, helps maintain alignment across multiple sections, and supports standard installation practices across AX configurations.
The part is made from sheet steel with zinc-plated surface finish, delivering corrosion resistance suitable for industrial environments. Each pack contains four pieces, with a total weight per pack of 2.7 kg, enabling predictable stocking and shipping logistics for mid-size projects.
Using the VX 8619.780 standardizes cable management on AX enclosures, reducing installation time and rework. The zinc-plated finish enhances durability against corrosion, lowering maintenance costs over the system’s life. Its compatibility with AX rails and 1,275 mm spacing supports scalable installations with predictable procurement and lifecycle performance.
