Rittal VX 8619.802 Cable Entry Plate - IP55, VX 1000 mm
Part Number: 8619802
Manufacturer
Rittal
Part number
8619802
Alt Part Number
VX 8619.802
Quick Summary
The VX 8619.802 Cable Entry Plate from Rittal enables gland plate integration for VX enclosures up to 1,000 mm. It helps engineers overcome sealing and alignment challenges when introducing cable entry grommets in dense electrical panels. This solution is CE certified and provides IP55 protection when used with approved grommets, with ETIM 9 EC002620 data to simplify cataloging. By standardising gland-plate interfaces, it reduces commissioning time, minimizes field-modifications, and supports scalable enclosure configurations across projects. This combination translates into lower total cost of ownership and predictable performance in harsh industrial environments.
Product Information
Extended Description

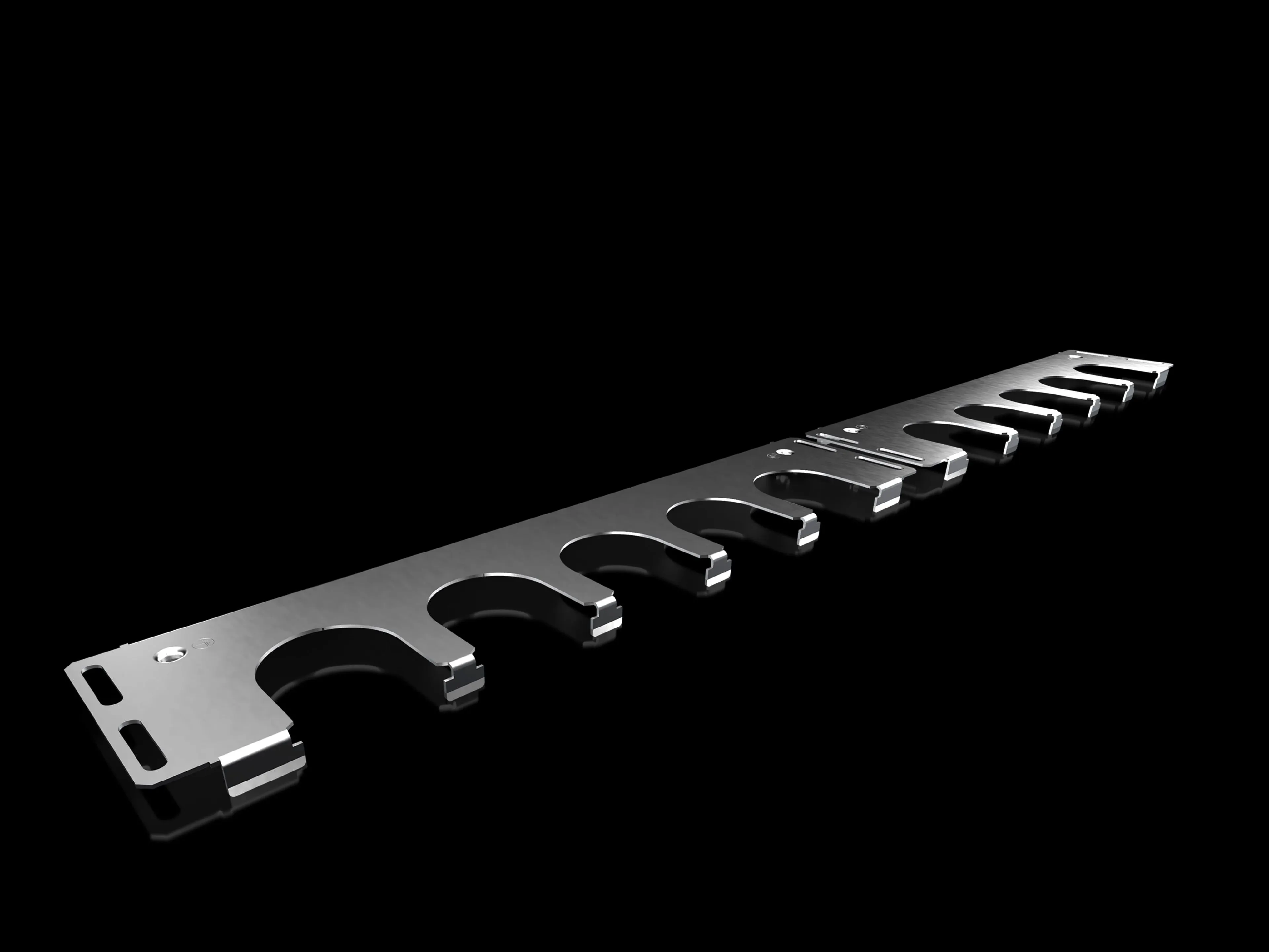

8619802 Rittal: VX Cable entry plate, for W: 1000 mm
Article number
VX 8619.802
Product description
For cable entry grommets and connector grommets, may be exchanged for segments of the divided gland plates supplied as standard.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Number of cut-outs
5
To fit
Enclosure type: VX: = 1,000 mm | Enclosure type: VX SE
IP protection category to IEC 60 529
IP 55 in conjunction with cable entry grommets or connector grommets
Packs of
4 pc(s).
Weight/pack
1.91 kg
Customs tariff number
73269098
EAN
4028177921030
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
VX Cable entry plate, for W: 1000 mm
Feature: Durable construction using sheet steel with a zinc-plated surface finish. Business Impact: Provides corrosion resistance and long service life, reducing replacement costs in harsh environments. Application: Suitable for industrial enclosures in manufacturing, process plants, and automotive facilities. Feature: IP55 protection achieved in conjunction with properly fitted cable or connector grommets. Business Impact: Maintains enclosure integrity against dust and moisture ingress, improving reliability and uptime. Application: Ideal for dusty or damp production lines and outdoor installations. Feature: Five cut-outs for flexible cable routing. Business Impact: Enables tailored wiring layouts and faster wiring schemes, cutting commissioning time. Application: Works with W: 1000 mm VX enclosures and VX SE variants. Feature: Pack of four plates at 1.91 kg per pack. Business Impact: Streamlines logistics and reduces on-site handling risk, supporting cost-efficient project execution. Application: Convenient for multi-panel builds and OEM assemblies. Feature: Assembly parts included; to fit VX 1,000 mm and VX SE. Business Impact: Simplifies installation and minimizes field adaptation errors, delivering predictable install times. Application: Quick retrofit in existing cabinets and new builds. Feature: Compliance and classification data (ETIM EC002620, ECLASS 27189261). Business Impact: Improves data accuracy for procurement and ERP systems, reducing order errors. Application: Enables standardized product data across sourcing platforms.
Get a Quick Quote for a Rittal 8619802
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8619802?
Enquire Now
FAQs
Begin by confirming the enclosure model is VX 1,000 mm or VX SE. Align the plate with the gland-plate interface, insert the assembly parts included in the pack, and tighten the fixings to achieve a stable mount. Ensure grommets or connectors are correctly seated to achieve IP55 sealing. The process is designed to minimize field modifications and reduce commissioning time.
Key specs include material: sheet steel, surface finish: zinc-plated, IP55 when used with cable entry grommets, 5 cut-outs, packs of 4, weight per pack: 1.91 kg, and compatibility with VX 1,000 mm and VX SE enclosures. These details support robust protection, flexible cable management, and predictable lead times for procurement and installation.
Yes, VX 8619.802 is designed to fit VX enclosures up to 1,000 mm and VX SE variants. Expect straightforward installation using the included assembly parts, with five pre-defined cut-outs to route cables efficiently. The IP55 rating applies when the correct grommets are used, helping maintain enclosure integrity in challenging environments.
The plate, when used with approved cable entry grommets, delivers IP55 protection, reducing dust and moisture ingress. This enhances long-term reliability of electrical terminations and wiring inside enclosures, which is critical for uptime in manufacturing lines and process environments. Installation parts included simplify achieving a consistent seal.
The product aligns with ETIM 9 EC002620 and ECLASS 8.0 27189261 standards, with a GTIN of 4028177921030. These data points support accurate cataloging, ERP integration, and supplier qualification. For sourcing, you can rely on consistent part numbers, packaging (4 pieces per pack), and spec alignment with VX enclosure families.
