Rittal VX 8620.050 Base/plinth corner piece - Type 1 UL
Part Number: 8620050
Quick Summary
VX Base/plinth corner piece from Rittal stabilises bayed enclosures for modular control cabinets. Its moulded self-positioning design speeds alignment, reduces on-site adjustments, and simplifies cable routing during installation. UL 50E Type 1 ratings, ETIM EC000721, and ECLASS 27182003 classifications help ensure compliance and procurement consistency. The stainless steel construction using 1.4301 material delivers long-term durability, while the front and rear trim panels provide a clean, finished appearance. By combining robust hardware with straightforward assembly, engineers can cut installation time and minimize rework. The kit also supports scalable configurations across multiple bays, improving serviceability and total cost of ownership. This makes it a reliable, future-proof solution for panel builders and OEMs.
Product Information
Extended Description

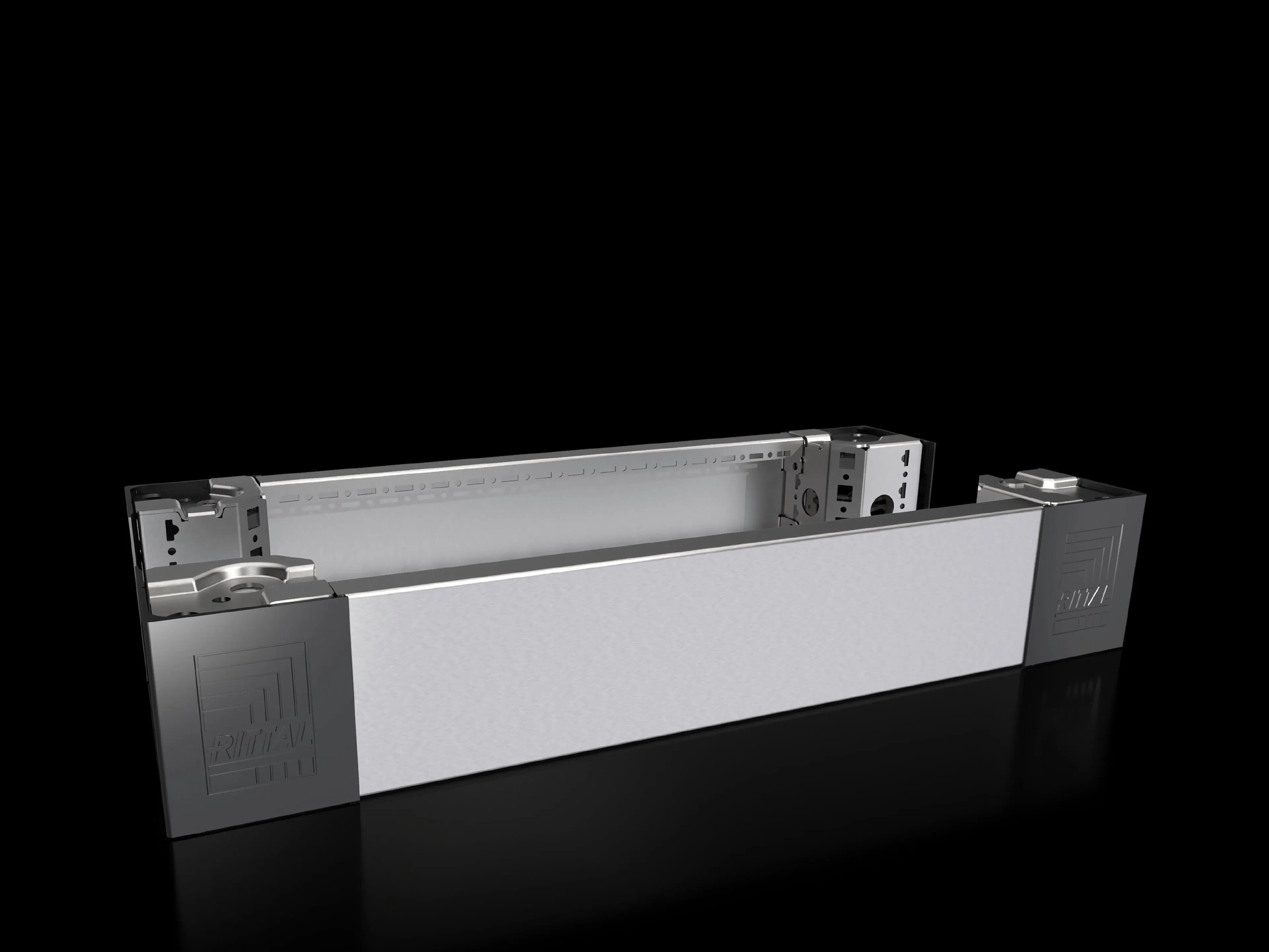

8620050 Rittal: VX Base/plinth corner piece, with base/plinth trim panel, front and rear, H: 100 mm, for W: 600 mm, stainless steel, 1.4301
Article number
VX 8620.050
Product description
Base/plinth corner pieces with moulded self-positioning to the bayed enclosure system, for use with or without trim panels depending on the application. Large openings in the base/plinth corner piece for optimum access to the screw-fastening point may be concealed with a corner and baying cover.
Material
Base/plinth corner piece: Stainless steel 1.4301 (AISI 304) | Base/plinth trim panel front/rear: Stainless steel 1.4301 (AISI 304) | Corner and baying cover: Plastic
Surface finish
Trim panel: Brushed, grain size 400
Supply includes
4 base/plinth corner pieces | 4 corner covers | 1 baying cover | 2 base/plinth trim panels, front/rear, 100 mm high | Assembly parts
Note
Side base/plinth trim panels finish off a base/plinth unit or provide additional stabilisation between base/plinths or enable interior configuration of the base/plinth
Dimensions
Height: 100 mm
To fit
Width: = 600 mm
Type rating to UL 50E
Type 1
Weight/pack
5.08 kg
Packs of
2 pc(s).
Customs tariff number
94039910
EAN
4028177922297
ETIM 9
EC000721
ECLASS 8.0
27182003
Product description
VX Base/plinth corner piece, with base/plinth trim panel, front and rear, H: 100 mm, for W: 600 mm, stainless steel, 1.4301
Feature: Moulded self-positioning corners facilitate fast alignment and reduce field adjustments, which translates to shorter installation windows and fewer errors in bayed enclosure assemblies. Business impact: increased on-site productivity and lower labor costs during commissioning. Application: ideal for W 600 mm bayed enclosure systems in industrial control cabinets. Feature: Stainless steel 1.4301 base/plinth corners and trim panels offer corrosion resistance and a durable, easy-to-clean finish. Business impact: lower maintenance costs and extended service life in harsh environments. Application: factory floors, damp environments, and outdoor installations where enclosure basing is exposed to humidity. Feature: Included components—four base/plinth corner pieces, four corner covers, one baying cover, two front/rear trim panels at 100 mm high, plus assembly parts—provide a complete, install-ready kit. Business impact: reduces procurement steps and ensures compatible, ready-to-use hardware for multi-bay configurations. Application: streamlines project timelines for panel builders and system integrators. Feature: UL Type 1 rating and standard classifications (ETIM EC000721, ECLASS 27182003) support compliance and straightforward vendor qualification. Business impact: simplifies safety certification and supplier auditing. Application: use in UL-listed electrical installations with bayed enclosures. Feature: Brushed surface finish on trim panels (grain size 400) maintains aesthetics and minimizes wear visibility. Business impact: professional appearance and easier maintenance. Application: visible enclosure bases in commercial and industrial environments. Note: Side base/plinth trim panels finish off a base/plinth unit or enable interior configuration of the base/plinth to suit space optimization and modular expansion.
Get a Quick Quote for a Rittal 8620050
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8620050?
Enquire Now
FAQs
Install four base/plinth corners to align with a 600 mm width, then attach the four corner covers and one baying cover. Fit the two front/rear 100 mm high trim panels and secure with the included assembly parts. The moulded self-positioning design speeds alignment and reduces field adjustments, cutting commissioning time.
The corners and trim panels are stainless steel 1.4301 (AISI 304), and the corner/baying covers are plastic. This combination delivers excellent corrosion resistance, low maintenance, and durability in industrial environments, while the brushed trim finish helps conceal wear over time.
Yes. The product carries UL 50E Type 1 ratings, and is defined within ETIM EC000721 and ECLASS 27182003 classifications, aligning with common safety and procurement standards for enclosed electrical assemblies.
The kit is designed for a 600 mm wide enclosure with a base/plinth height of 100 mm. Each pack weighs 5.08 kg, and the supply includes 4 corner pieces, 4 corner covers, 1 baying cover, 2 base/plinth trim panels, front and rear, plus assembly parts, in packs of 2.
The baying cover, together with the moulded self-positioning corners, delivers a clean, finished look while enabling quick access to screw-fastening points. This improves stability between base/plinth units, supports interior configuration, and reduces rework during multi-bay installations.
