Rittal VX 8620.051 Base/plinth corner piece - UL 50E
Part Number: 8620051
Quick Summary
Rittal VX 8620.051 Base/plinth corner piece provides robust corner support for bayed enclosure systems. Installation challenges such as base misalignment and limited access to screw-fastening points are common in modular cabinets, causing delays and rework. Key standards supported include UL 50E Type 1 compliance for enclosure safety, stainless steel 1.4301 durability, and clear ETIM/ECLASS mappings to simplify procurement. Designed for 800 mm wide cabinets, the kit enables stable base trim panels, precise alignment, and scalable baying to support growing automation workloads while maintaining easy access for maintenance and future reconfiguration.
Product Information
Extended Description

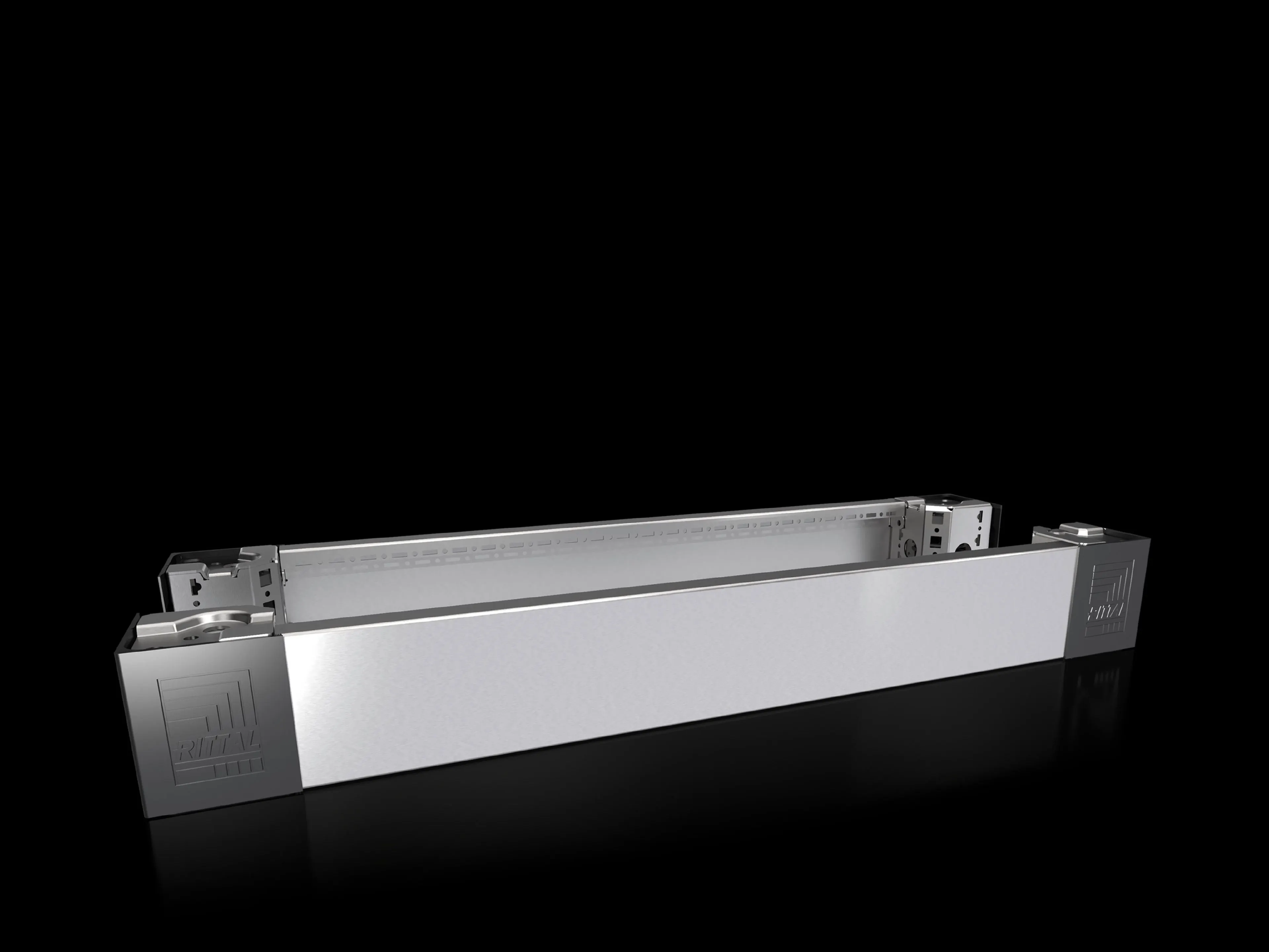

8620051 Rittal: VX Base/plinth corner piece, with base/plinth trim panel, front and rear, H: 100 mm, for W: 800 mm, stainless steel, 1.4301
Article number
VX 8620.051
Product description
Base/plinth corner pieces with moulded self-positioning to the bayed enclosure system, for use with or without trim panels depending on the application. Large openings in the base/plinth corner piece for optimum access to the screw-fastening point may be concealed with a corner and baying cover.
Material
Base/plinth corner piece: Stainless steel 1.4301 (AISI 304) | Base/plinth trim panel front/rear: Stainless steel 1.4301 (AISI 304) | Corner and baying cover: Plastic
Surface finish
Trim panel: Brushed, grain size 400
Supply includes
4 base/plinth corner pieces | 4 corner covers | 1 baying cover | 2 base/plinth trim panels, front/rear, 100 mm high | Assembly parts
Note
Side base/plinth trim panels finish off a base/plinth unit or provide additional stabilisation between base/plinths or enable interior configuration of the base/plinth
Dimensions
Height: 100 mm
To fit
Width: = 800 mm
Type rating to UL 50E
Type 1
Weight/pack
6.5 kg
Packs of
2 pc(s).
Customs tariff number
94039910
EAN
4028177922303
ETIM 9
EC000721
ECLASS 8.0
27182003
Product description
VX Base/plinth corner piece, with base/plinth trim panel, front and rear, H: 100 mm, for W: 800 mm, stainless steel, 1.4301
Feature: Moulded self-positioning base/plinth corner pieces with integrated alignment. Benefit: Reduces installation time and misalignment risk, delivering a faster, error-free setup for bayed enclosure systems. Application: Ideal for high-mix manufacturing lines where rapid cabinet deployment is required. Feature: Front and rear base/plinth trim panels (100 mm high) included. Benefit: Improves side stability, simplifies interior configuration, and enhances service access for wiring and fasteners. Application: Supports clean, modular layouts in control rooms and switchgear areas. Feature: Material composition stainless steel 1.4301 (AISI 304) for base/plinths and trim panels. Benefit: Delivers corrosion resistance and long-term durability in harsh industrial environments, reducing maintenance frequency. Application: Suitable for humid or dusty plant floors and sugar/food-grade environments when applicable. Feature: Comprehensive supply includes 4 base/plinth corner pieces, 4 corner covers, 1 baying cover, 2 trim panels front/rear, and assembly parts. Benefit: Streamlines procurement and reduces on-site parts handling, lowering total installation cost. Application: Suitable for multi-cabinet bays and upgrade projects. Feature: UL 50E Type 1 rating noted in specifications. Benefit: Supports compliance with enclosure safety standards, aiding risk management and regulatory readiness. Application: Essential for electrical rooms and automation panels in critical facilities. Feature: Pack configuration and weight—Packs of 2, weight 6.5 kg per pack. Benefit: Easy handling, reduced forklift risk, and predictable logistics for installation teams. Application: Ideal for large-scale data centers or vehicle-assembly lines where multiple bays are deployed.
Get a Quick Quote for a Rittal 8620051
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8620051?
Enquire Now
FAQs
Yes. The VX 8620.051 Base/plinth corner piece is designed for 800 mm wide bays and includes front/rear trim panels and corner covers to ensure a secure, level base across the full width of the enclosure system.
The kit comprises 4 base/plinth corner pieces, 4 corner covers, 1 baying cover, 2 base/plinth trim panels (front and rear, 100 mm high), and assembly parts, enabling a complete base/baying solution for two enclosures or a single wide bay.
Begin by positioning the four corner pieces to align with the enclosure base. Attach corner covers and baying cover, then install the front/rear trim panels to complete the base, ensuring screws access points remain accessible. Final checks should verify alignment and levelness before wiring and securing interior components.
The set carries UL 50E Type 1 rating for enclosure safety and uses stainless steel 1.4301 (AISI 304) for durability. It also includes ETIM 9 EC000721 and ECLASS 8.0 27182003 classifications to support accurate procurement and data management.
The kit reduces installation time, improves base stability, and simplifies interior configuration, leading to lower labor costs, fewer rework incidents, and easier future bay expansions. The durable stainless steel construction minimizes maintenance across demanding production environments.
