Rittal VX 8620.053 Base/plinth Corner Piece - 1.4301
Part Number: 8620053
Quick Summary
Rittal VX 8620.053 Base/plinth Corner Piece provides corner support for bayed enclosure systems. Engineers often struggle with alignment and access to screw-fastening points during assembly. UL 50E Type 1 rating is specified for enclosure integrity, while ETIM EC000721 and ECLASS 27182003 classifications help procurement systems match parts correctly. The product combines stainless steel 1.4301 with front and rear trim panels, offering a robust, maintenance-friendly solution. This reduces site rework and supports scalable interior configurations, delivering faster builds and consistent enclosure quality for industrial controls and electrical cabinets.
Product Information
Extended Description

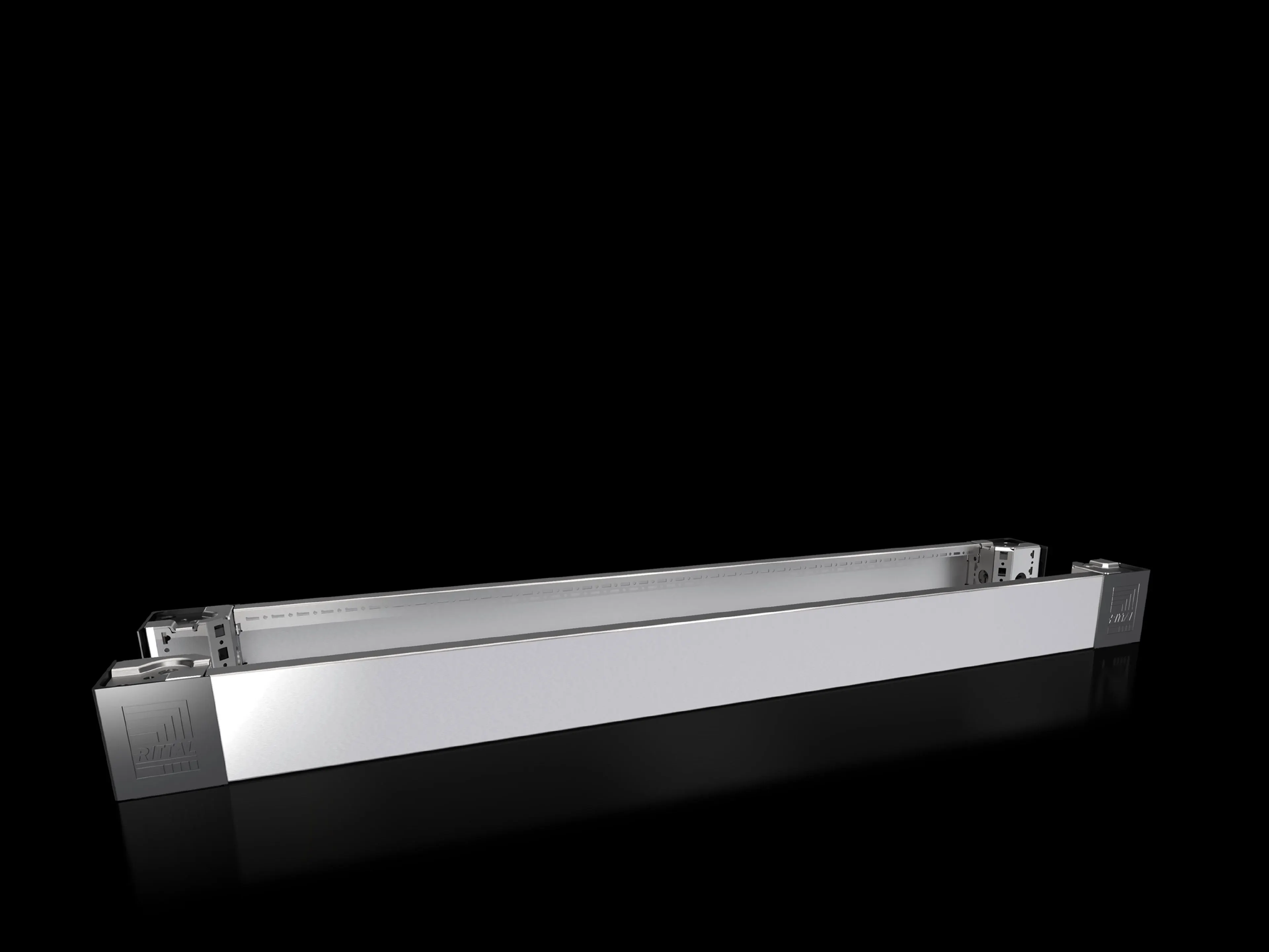

8620053 Rittal: VX Base/plinth corner piece, with base/plinth trim panel, front and rear, H: 100 mm, for W: 1200 mm, stainless steel, 1.4301
Article number
VX 8620.053
Product description
Base/plinth corner pieces with moulded self-positioning to the bayed enclosure system, for use with or without trim panels depending on the application. Large openings in the base/plinth corner piece for optimum access to the screw-fastening point may be concealed with a corner and baying cover.
Material
Base/plinth corner piece: Stainless steel 1.4301 (AISI 304) | Base/plinth trim panel front/rear: Stainless steel 1.4301 (AISI 304) | Corner and baying cover: Plastic
Surface finish
Trim panel: Brushed, grain size 400
Supply includes
4 base/plinth corner pieces | 4 corner covers | 1 baying cover | 2 base/plinth trim panels, front/rear, 100 mm high | Assembly parts
Note
Side base/plinth trim panels finish off a base/plinth unit or provide additional stabilisation between base/plinths or enable interior configuration of the base/plinth
Dimensions
Height: 100 mm
To fit
Width: = 1,200 mm
Type rating to UL 50E
Type 1
Weight/pack
9.46 kg
Packs of
2 pc(s).
Customs tariff number
94039910
EAN
4028177922327
ETIM 9
EC000721
ECLASS 8.0
27182003
Product description
VX Base/plinth corner piece, with base/plinth trim panel, front and rear, H: 100 mm, for W: 1200 mm, stainless steel, 1.4301
Feature: Corner pieces with moulded self-positioning for bayed enclosure systems. Business Impact: Accelerates alignment during assembly and reduces installation errors. Application: Ideal for 1200 mm wide enclosures in manufacturing control panels. Feature: Large openings in base/plinth corner piece enable optimum screw-fastening access. Business Impact: Speeds maintenance and reconfiguration by minimizing time spent on access points. Application: Useful in serviceable enclosures where frequent access is required. Feature: Material mix includes stainless steel 1.4301 (AISI 304) with plastic corner and baying cover. Business Impact: Enhances corrosion resistance and reduces wear in harsh environments while preserving cosmetic finish. Application: Industrial environments with demanding hygiene or moisture exposure. Feature: Supplied as a multi-piece kit with base/plinth trim panels front/rear, corner covers, and baying cover. Business Impact: Simplifies ordering, reduces onsite parts count, and improves installation predictability. Application: OEM assembly lines and refurbishments where consistent parts fitment is critical. Feature: Weight per pack 9.46 kg and packs of 2; compatibility with 100 mm high trim panels. Business Impact: Facilitates logistics planning and stable base support across multiple bays. Application: Large cabinet banks with modular basing. Feature: UL 50E Type 1 conformity and coded dimensions (Height 100 mm, Width 1,200 mm). Business Impact: Meets essential safety standards and ensures a reliable fit for standardized racks. Application: Commercial and industrial electrical installations requiring compliant enclosure foundations.
Get a Quick Quote for a Rittal 8620053
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8620053?
Enquire Now
FAQs
The VX 8620.053 kit is designed specifically for 1200 mm wide bayed enclosure systems, including four base/plinth corner pieces, four corner covers, and two front/rear trim panels. It provides self-positioning features for quick alignment, minimizing setup time and misalignment during assembly.
Base/plinth corner pieces use stainless steel 1.4301 (AISI 304) with plastic corner and baying covers; the trim panels are brushed with grain size 400. This combination delivers corrosion resistance, durability, and a premium aesthetic suitable for industrial environments.
Yes. The design includes front/rear trim panels and baying covers, enabling interior reconfiguration and stabilisation between adjacent units. This makes it ideal for modular control cabinets and changing layouts in evolving processes.
The assembly carries UL 50E Type 1 conformance, and the product is listed with ETIM 9 EC000721 and ECLASS 8.0 27182003 classifications to support data-driven procurement and cross-listing across systems.
The kit provides large access openings for screw-fastening points, reduces onsite handling complexity, and supports fast interior configuration with included base/plinth trim panels and corner covers. These features translate to reduced installation time, easier maintenance, and improved long-term enclosure rigidity.
