Rittal 8620061 Base/plinth Corner Pieces - UL 50E Type 1
Part Number: 8620061
Quick Summary
Rittal base/plinth corner pieces provide a robust, self-positioning solution for bayed enclosure systems used in control panels and industrial cabinets. This design addresses common installation challenges such as misalignment, limited access to fasteners, and unstable base surfaces that slow projects. The design leverages UL 50E Type 1 compatibility and aligns with ETIM 9 and ECLASS 8.0 classifications to simplify procurement and cross-system integration. For procurement teams and installers, the VX 8620.061 kit delivers a durable stainless steel base and trim panels with corrosion resistance, while offering flexible interior configuration. This combination reduces hand tools, speeds commissioning, and supports scalable cabinet layouts across factory floors.
Product Information
Extended Description

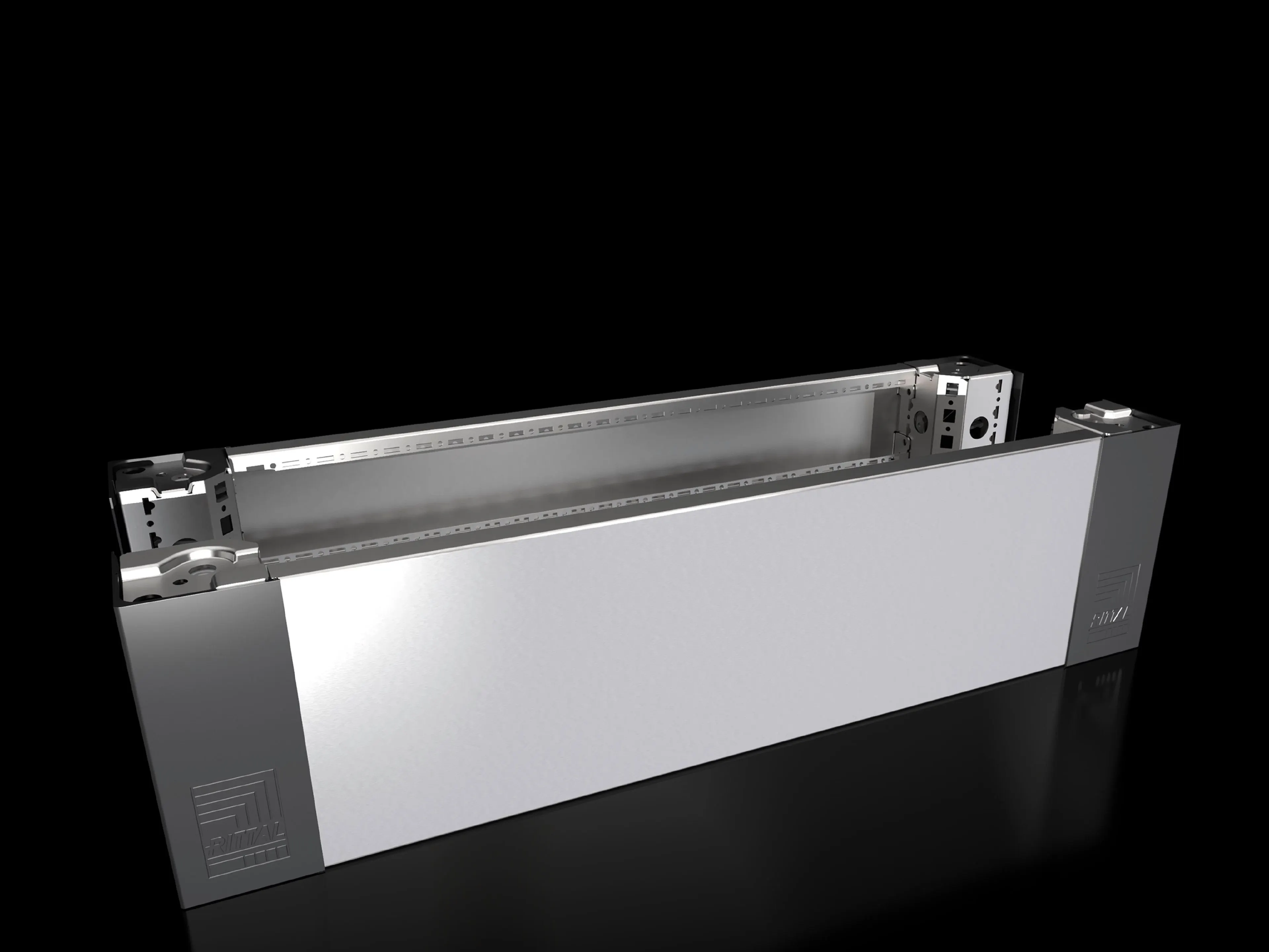

8620061 Rittal: VX Base/plinth corner piece, with base/plinth trim panel, front and rear, H: 200 mm, for W: 800 mm, stainless steel, 1.4301
Article number
VX 8620.061
Product description
Base/plinth corner pieces with moulded self-positioning to the bayed enclosure system, for use with or without trim panels depending on the application. Large openings in the base/plinth corner piece for optimum access to the screw-fastening point may be concealed with a corner and baying cover.
Material
Base/plinth corner piece: Stainless steel 1.4301 (AISI 304) | Base/plinth trim panel front/rear: Stainless steel 1.4301 (AISI 304) | Corner and baying cover: Plastic
Surface finish
Trim panel: Brushed, grain size 400
Supply includes
4 base/plinth corner pieces | 4 corner covers | 1 baying cover | 1 base/plinth trim panel, front/rear, 200 mm high | 2 base/plinth trim panels, front/rear, 100 mm high | Assembly parts
Note
Side base/plinth trim panels finish off a base/plinth unit or provide additional stabilisation between base/plinths or enable interior configuration of the base/plinth
Dimensions
Height: 200 mm
To fit
Width: = 800 mm
Type rating to UL 50E
Type 1
Weight/pack
10.6 kg
Packs of
2 pc(s).
Customs tariff number
94039910
EAN
4028177922341
ETIM 9
EC000721
ECLASS 8.0
27182003
Product description
VX Base/plinth corner piece, with base/plinth trim panel, front and rear, H: 200 mm, for W: 800 mm, stainless steel, 1.4301
Feature → Self-positioning moulding to bayed enclosures provides precise alignment, reducing setup time and rework. Business Impact → Faster, worry-free installations translate to lower labor costs and shorter project cycles. Application → Particularly beneficial in modular control cabinets where multiple bays must align consistently. Feature → Stainless steel 1.4301 base/plinth components deliver corrosion resistance and long-term durability. Business Impact → Extends service life in harsh environments and minimizes maintenance. Application → Suitable for factory floors, wash-down areas, and outdoor-rated enclosures. Feature → Included hardware and trim panels enable complete light-weight assembly with front/rear coverage. Business Impact → Reduces supplier coordination and on-site part hunting, accelerating commissioning. Application → Ideal for teams needing a ready-to-install solution in 800 mm bays. Feature → Brushed grain finish on trim panels combines aesthetics with cleanability. Business Impact → Improves cabinet appearance while simplifying routine cleaning. Application → Applies to visibility-critical enclosures and panel upgrades. Feature → Pack composition of 2 with 4 corner pieces, 4 corner covers, 1 baying cover, and trim panels. Business Impact → Streamlines stock management and reduces handling steps on site. Application → Supports scalable base/plinth configurations across multiple installations.
Get a Quick Quote for a Rittal 8620061
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8620061?
Enquire Now
FAQs
Start by aligning the four base/plinth corner pieces at the enclosure corners, then attach the corner covers and baying cover to secure the joints. Fit the front/rear trim panels to the 200 mm height and 800 mm width, ensuring the moulded self-positioning interfaces engage cleanly with adjacent modules. Use the included assembly parts to fasten through-access points for a stable, service-friendly base. The process minimizes misalignment and speeds commissioning.
VX 8620.061 comprises base/plinth corner pieces and trim components for W 800 mm enclosures, H 200 mm, made from stainless steel 1.4301 with plastic corner and baying covers. Each pack weighs approximately 10.6 kg and includes four base/plinth corner pieces, four corner covers, one baying cover, and two trim panels (front/rear) at 200 mm and 100 mm heights, plus assembly parts.
Yes. The kit is designed for bayed enclosure systems used in industrial control panels and cabinet housings. Its stainless steel base and trim panels provide durability and corrosion resistance, while the self-positioning feature accelerates installation and alignment—key for high-mix, high-variation manufacturing environments.
The VX 8620.061 base/plinth corner pieces are rated to UL 50E Type 1, offering a recognized enclosure integrity standard. The product data also aligns with ETIM 9 and ECLASS 8.0 classifications, aiding standardized procurement and cross-system compatibility within industrial automation environments.
The kit reduces installation time and minimizes rework due to misalignment, delivering faster commissioning and lower labor costs. The corrosion-resistant stainless steel components extend service life in demanding environments, reducing maintenance intervals and total cost of ownership for modular enclosure deployments.
