Rittal VX 8620.063 Base/plinth Corner Piece - UL 50E Type 1
Part Number: 8620063
Quick Summary
Rittal VX 8620.063 Base/plinth corner piece stabilizes bayed enclosures and enables clean, edge-to-edge base configurations for 1200 mm systems. Installation challenges such as base instability and limited screw access are addressed by large openings and self-positioning features that speed assembly. The solution complies with UL 50E Type 1, and aligns with ETIM EC000721 and ECLASS 27182003 standards to support regulatory compliance and supplier interoperability. With stainless steel 1.4301 components and included trim panels, it delivers durability, corrosion resistance, and a professional finish. This modular base kit reduces field fabrication time and simplifies interior configuration, delivering measurable savings in downtime and maintenance planning.
Product Information
Extended Description

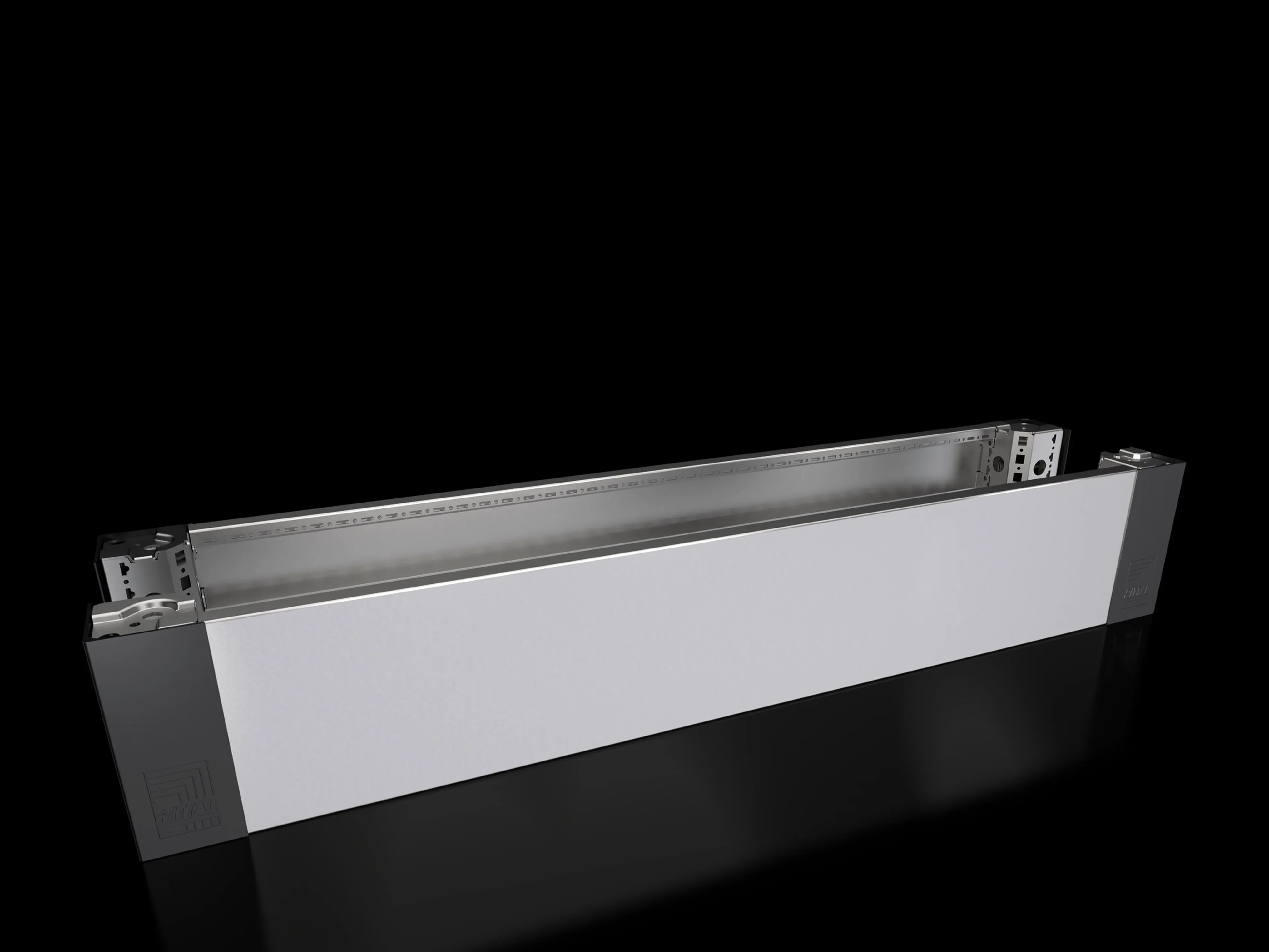

8620063 Rittal: VX Base/plinth corner piece, with base/plinth trim panel, front and rear, H: 200 mm, for W: 1200 mm, stainless steel, 1.4301
Article number
VX 8620.063
Product description
Base/plinth corner pieces with moulded self-positioning to the bayed enclosure system, for use with or without trim panels depending on the application. Large openings in the base/plinth corner piece for optimum access to the screw-fastening point may be concealed with a corner and baying cover.
Material
Base/plinth corner piece: Stainless steel 1.4301 (AISI 304) | Base/plinth trim panel front/rear: Stainless steel 1.4301 (AISI 304) | Corner and baying cover: Plastic
Surface finish
Trim panel: Brushed, grain size 400
Supply includes
4 base/plinth corner pieces | 4 corner covers | 1 baying cover | 1 base/plinth trim panel, front/rear, 200 mm high | 2 base/plinth trim panels, front/rear, 100 mm high | Assembly parts
Note
Side base/plinth trim panels finish off a base/plinth unit or provide additional stabilisation between base/plinths or enable interior configuration of the base/plinth
Dimensions
Height: 200 mm
To fit
Width: = 1,200 mm
Type rating to UL 50E
Type 1
Weight/pack
15.2 kg
Packs of
2 pc(s).
Customs tariff number
94039910
EAN
4028177922365
ETIM 9
EC000721
ECLASS 8.0
27182003
Product description
VX Base/plinth corner piece, with base/plinth trim panel, front and rear, H: 200 mm, for W: 1200 mm, stainless steel, 1.4301
Feature: Four base/plinth corner pieces, four corner covers, one baying cover and base/plinth trim panel front/rear provide complete edge-to-edge enclosure integration. Business Impact: Accelerates pre-assembly, reduces on-site trimming, and improves alignment accuracy. Application: Ideal for bayed enclosures up to 1,200 mm wide, such as control cabinets and data-center housings. Long-tail keywords: bayed enclosure system, 1200 mm wide, corner and baying cover. Feature: Front/rear trim panels plus 200 mm high base/plinth trim panel enable stable lateral support and interior configuration. Business Impact: Increases structural rigidity and allows modular interior layouts, cutting rework. Application: Suitable for industrial control panels in harsh environments. Feature: Material mix includes stainless steel 1.4301 for base/plinth corner pieces and trim panels, with plastic corner/baying covers. Business Impact: Delivers corrosion resistance and low maintenance. Application: Environments demanding long service life and easy cleaning. Feature: Weight per pack 15.2 kg and packs of 2 optimize shipping and handling. Business Impact: Improves logistics planning and reduces on-site lifting risk. Application: Useful for factory floor deployments with standard palletization. Feature: UL 50E Type 1 rating confirms compliance for listed electrical enclosures. Business Impact: Supports safety certification programs and reduces engineering validation time. Application: Required where code-compliant enclosures are mandated. Feature: Supplied with assembly parts for quick installation. Business Impact: Minimizes screw-fastening time and on-site errors. Application: Expedites commissioning in new builds and refurbishments.
Get a Quick Quote for a Rittal 8620063
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8620063?
Enquire Now
FAQs
Yes. VX 8620.063 is designed for 1,200 mm wide bayed enclosure systems and ships with all necessary components, including four base/plinth corner pieces, corner covers, a baying cover, and front/rear trim panels. The kit supports straightforward alignment and reduces field fabrication, ensuring a precise, stable base for quick commissioning.
The base/plinth corner pieces and trim panels use stainless steel 1.4301 (AISI 304), while corner and baying covers are plastic. This combination delivers excellent corrosion resistance, easy cleaning, and durable performance in typical industrial environments, extending service life and reducing maintenance cycles.
Yes. The kit carries a UL 50E Type 1 rating, and it aligns with ETIM 9 EC000721 and ECLASS 8.0 27182003 standards. This supports regulatory compliance, procurement consistency, and interoperability with other UL-listed components in bayed enclosure installations.
Applications include bayed control cabinets, industrial enclosures, and data-center housings where a stable base, modular interior configuration, and accessible screw-fastening points are critical. The 200 mm height and 1,200 mm width fit common enclosure footprints, while the included trim panels simplify interior layouts and improve aesthetics.
Each pack includes four base/plinth corner pieces, four corner covers, one baying cover, one base/plinth trim panel (front/rear, 200 mm high), two base/plinth trim panels (front/rear, 100 mm high), plus assembly parts. This complete kit reduces field labor, minimizes part mismatch, and shortens installation time, delivering faster project completion and a lower total cost of ownership.
