Rittal VX 8620.071 Base/plinth trim panel - Type 1
Part Number: 8620071
Quick Summary
Rittal VX 8620.071 base/plinth trim panel is used to finish base units in side areas and interior bays. That helps prevent dust ingress and edge damage that can undermine stability and aesthetics in busy enclosures. The part carries a UL 50E Type 1 rating and aligns with ETIM EC000721 and ECLASS 27182003, ensuring reliable interoperability. Engineered for stainless steel corrosion resistance and compatibility with 1st-generation base/plinth systems, it also supports installation efficiency and long-term cost savings for maintenance-intensive installations. This combination of robust construction and thoughtful design makes it a practical choice for industrial environments seeking durable edge finishing with predictable performance.
Product Information
Extended Description

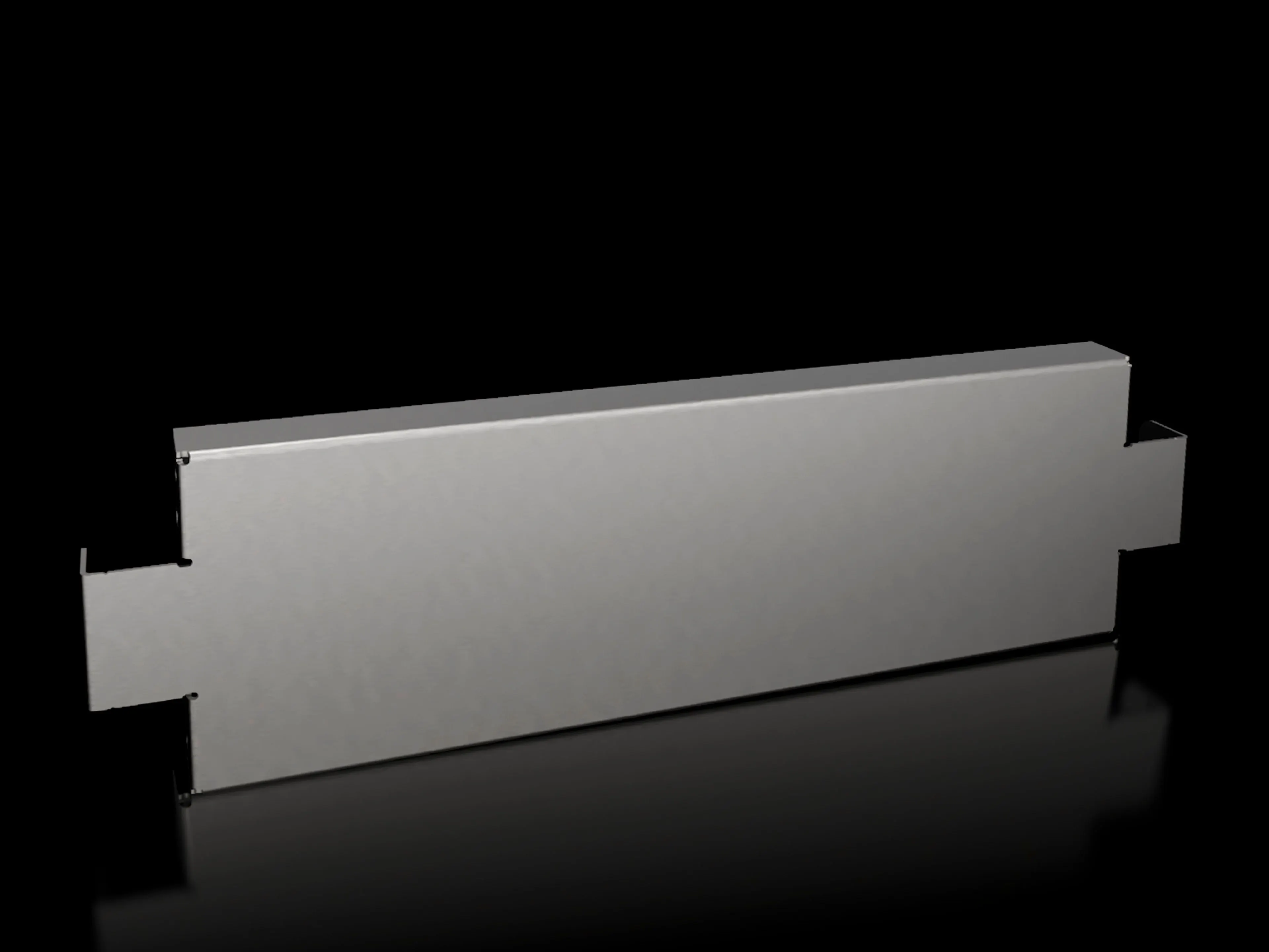

8620071 Rittal: VX Base/plinth trim panel, side, H: 100 mm, for D: 500 mm, stainless steel, 1.4301
Article number
VX 8620.071
Product description
To finish off a base/plinth unit at the sides and for additional stabilisation or for the interior configuration of bayed base/plinths. One 200 mm high or two 100 mm high trim panels may optionally be fitted on 200 mm high base/plinths.
Material
Stainless steel 1.4301 (AISI 304)
Surface finish
Brushed, grain 400
Supply includes
Assembly parts
Note
Components from the 1st generation base/plinth system cannot be combined with components from the 2nd generation base/plinth system
Dimensions
Height: 100 mm
To fit
Depth: = 500 mm
Type rating to UL 50E
Type 1
Weight/pack
2.2 kg
Packs of
2 pc(s).
Customs tariff number
94039910
EAN
4028177922389
ETIM 9
EC000721
ECLASS 8.0
27182003
Product description
VX Base/plinth trim panel, side, H: 100 mm, for D: 500 mm, stainless steel, 1.4301
Material and finish: The trim panel is manufactured from stainless steel 1.4301 (AISI 304) with a brushed grain 400 surface, delivering excellent corrosion resistance and an easy-to-clean surface. Business impact: Increased enclosure longevity and reduced maintenance costs due to superior surface properties. Application: Suitable for side and interior baying configurations on 500 mm depth base/plinths, providing a consistent, professional appearance in control cabinets and electrical enclosures. Dimensions and fit: Height 100 mm and designed to fit D 500 mm bases, with assembly parts included to streamline installation. Business impact: Faster on-site assembly and fewer missing components, reducing downtime during installation. Application: Ideal for projects requiring quick retrofits or modular expansions in bayed base/plinth systems. Certification and compliance: UL 50E Type 1 rating supports safe enclosure applications, and metadata includes ETIM 9 EC000721 and ECLASS 8.0 27182003 for predictable procurement and interoperability. Business impact: Simplified purchasing and qualified suppliers for compliance-driven projects. Application: Industrial environments where safety and standardization drive uptime. Compatibility and installation: Packs of 2 panels, weight 2.2 kg per pack, with assembly parts included for straightforward mounting. Business impact: Reduced logistics complexity and faster stock reconfiguration. Application: Works with 1st-generation base/plinth systems and bayed configurations, with clear limitations noted for cross-generation compatibility. Aesthetics and protection: Brushed stainless steel finish enhances appearance while protecting edges from damage and moisture ingress. Business impact: Improved enclosure aesthetics and longer-lasting enclosures in demanding environments. Application: Suitable for high-visibility switchgear areas or process environments where edge protection matters.
Get a Quick Quote for a Rittal 8620071
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8620071?
Enquire Now
FAQs
Yes. VX 8620.071 is designed for 1st-generation base/plinth systems and depth of 500 mm. It ships with assembly parts and is intended to fit alongside VX components that share the same generation, ensuring a reliable, straightforward retrofit or expansion path.
The panel is stainless steel 1.4301 (AISI 304) with a brushed grain 400 finish. This combination delivers corrosion resistance, ease of cleaning, and a professional appearance, which reduces maintenance frequency and enhances enclosure longevity in harsh environments.
VX 8620.071 carries a UL 50E Type 1 rating, confirming suitability for specified enclosure applications. It is also aligned with ETIM 9 EC000721 and ECLASS 8.0 27182003 for standardized procurement and interoperability.
With included assembly parts and a lightweight 2.2 kg per pack, installation is quick and requires minimal extra hardware. The durable stainless steel surface reduces cleaning frequency and wear, contributing to lower maintenance costs over the panel’s service life.
It delivers predictable edge protection and a consistent finish for bayed configurations, supporting uptime, aesthetics, and standardized procurement. The part also helps with scalable installations in growing or evolving automation projects.
