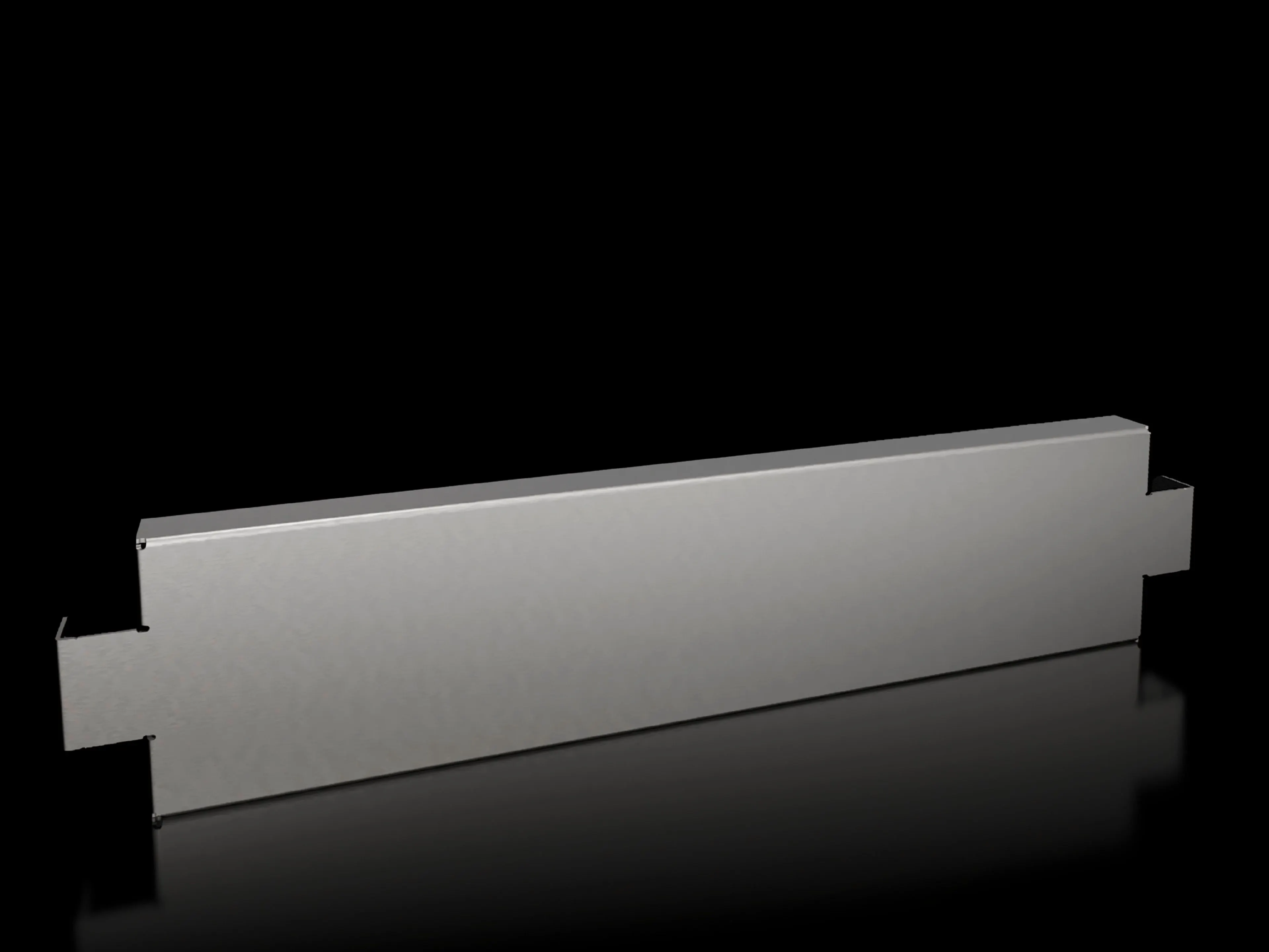

Rittal VX 8620.072 Base/Plinth Trim Panel - 1.4301
Part Number: 8620072
Quick Summary
Base/plinth trim panel from Rittal finishes base units in enclosures and bayed layouts, securing sides and interior walls. It helps eliminate exposed edges and wobble in crowded control rooms, addressing a common installation pain point. Key certifications include UL 50E Type 1, ETIM EC000721, and ECLASS 27182003, with stainless steel 1.4301 offering corrosion resistance. For procurement and installation teams, this trim panel provides predictable fit, corrosion resistance, and ease of integration with the 600 mm deep VX base/plinth system. The brushed finish supports long-term aesthetics while simplifying maintenance. In demanding environments such as data centers and manufacturing lines, consistent edge treatment reduces snag hazards and helps maintain compliance with internal standards.
Product Information
Extended Description
8620072 Rittal: VX Base/plinth trim panel, side, H: 100 mm, for D: 600 mm, stainless steel, 1.4301
Article number
VX 8620.072
Product description
To finish off a base/plinth unit at the sides and for additional stabilisation or for the interior configuration of bayed base/plinths. One 200 mm high or two 100 mm high trim panels may optionally be fitted on 200 mm high base/plinths.
Material
Stainless steel 1.4301 (AISI 304)
Surface finish
Brushed, grain 400
Supply includes
Assembly parts
Note
Components from the 1st generation base/plinth system cannot be combined with components from the 2nd generation base/plinth system
Dimensions
Height: 100 mm
To fit
Depth: = 600 mm
Type rating to UL 50E
Type 1
Weight/pack
2.8 kg
Packs of
2 pc(s).
Customs tariff number
94039910
EAN
4028177922396
ETIM 9
EC000721
ECLASS 8.0
27182003
Product description
VX Base/plinth trim panel, side, H: 100 mm, for D: 600 mm, stainless steel, 1.4301
Feature: Stainless steel construction using 1.4301 (AISI 304) delivers excellent corrosion resistance and durability in industrial environments. Business Impact: Reduces maintenance cycles and extends service life of base/plinth assemblies, lowering total cost of ownership. Application: Ideal for long-term reliability in enclosure bases and bayed configurations where edge protection matters. Feature: Height of 100 mm with a 600 mm depth fit. Business Impact: Ensures precise, repeatable installation across modular systems, enabling faster commissioning. Application: Fits 600 mm deep base/plinth footprints in Rittal stacks and cabinet lines. Feature: Supplied with assembly parts. Business Impact: Streamlines procurement and eliminates missing-part risk; accelerates on-site assembly. Application: Suitable for quick, clean installations in busy panels. Feature: Compatibility note for first-generation systems. Business Impact: Prevents incompatible assemblies, reducing design changes and rework. Application: Plan installations around the 1st gen base/plinth system only. Feature: UL 50E Type 1 rating. Business Impact: Supports compliance for enclosure protection and safe operation in control rooms and distributed plants. Application: Use where Type 1 protection is required; aligns with safety standards. Feature: Brushed grain 400 surface finish. Business Impact: Maintains aesthetics and resists wear in high-traffic environments. Application: Ideal for exposed enclosures where appearance and durability matter.
Get a Quick Quote for a Rittal 8620072
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8620072?
Enquire Now
FAQs
VX 8620.072 is designed for use with the first-generation base/plinth system and should not be mixed with components from the 2nd generation system. Plan your layout around 1st-gen parts to ensure proper fit, stability, and finish. The kit includes assembly parts to simplify on-site installation.
The panel is 100 mm high and fits 600 mm depth base/plinths. It is manufactured from stainless steel 1.4301 (AISI 304) with a brushed grain surface finish (grain 400). The weight per pack is 2.8 kg, with packs of 2 units included, supporting reliable, repeatable installations.
Yes. The VX 8620.072 is specified for bayed base/plinth installations, providing side finishing and interior stabilization. It is designed to integrate with bayed layouts while maintaining edge protection and alignment across adjacent units, helping achieve a clean, professional enclosure appearance.
The panel carries UL 50E Type 1 certification, indicating suitability for enclosure protection in industrial environments. It is classified under ETIM EC000721 and ECLASS 27182003 for standardised data exchange. This combination supports regulatory compliance, parts interoperability, and streamlined procurement across engineering teams.
By finishing base/plinth edges, the panel reduces edge damage and snag hazards, improves stability in bayed configurations, and shortens installation time due to included assembly parts. The 1.4301 stainless steel and brushed finish also lower long-term maintenance costs while maintaining appearance in harsh industrial environments.
