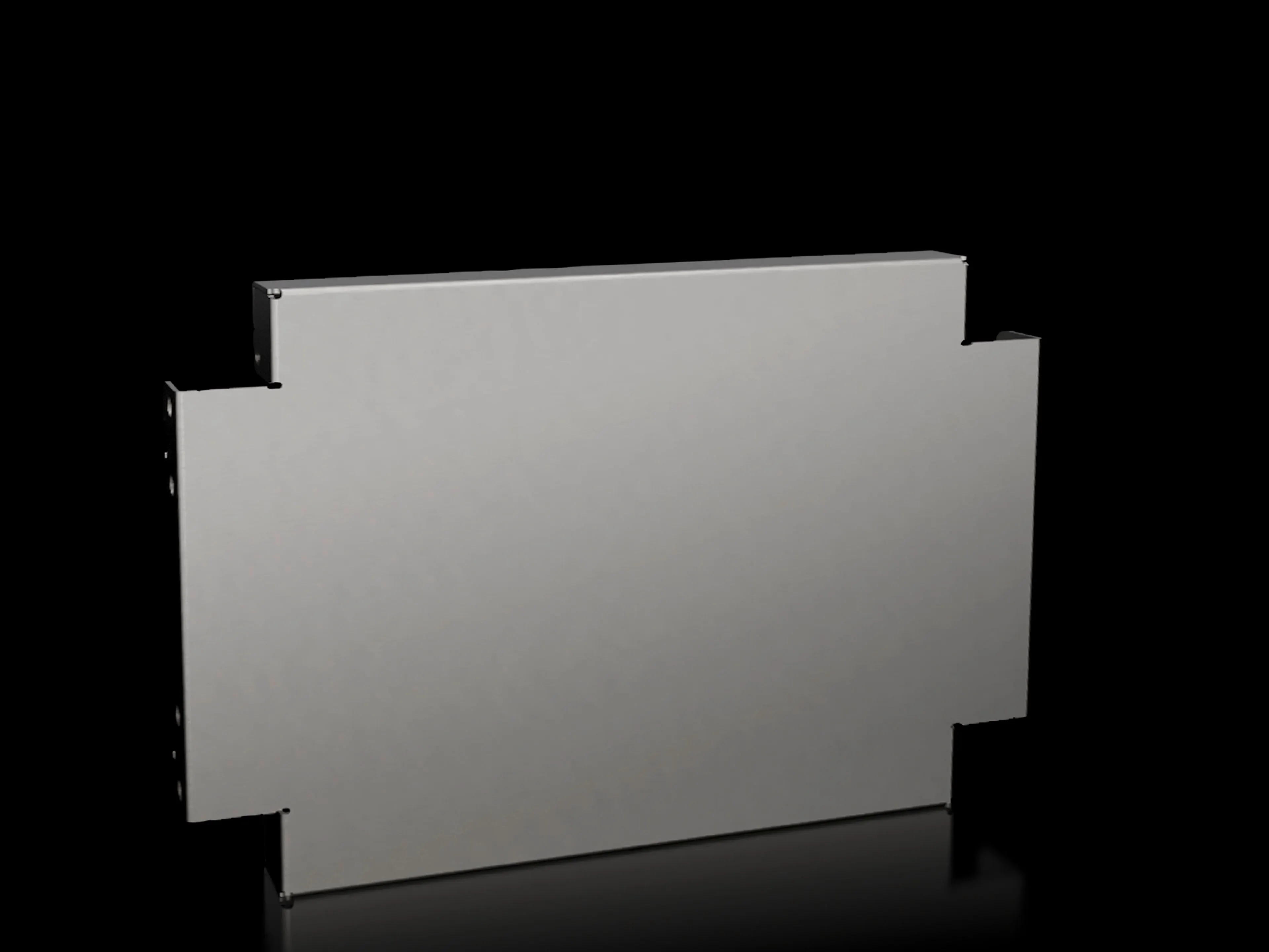

Rittal VX 8620.080 Base Trim Panel - UL 50E Type 1
Part Number: 8620080
Quick Summary
Rittal VX 8620.080 base trim panel finishes base units for 400 mm deep enclosures. By concealing side edges and stabilising bayed configurations, it reduces installation rework and field adjustments. The part carries UL 50E Type 1 rating and is manufactured from stainless steel 1.4301 (AISI 304) with a brushed grain finish, aligning with ETIM EC000721 and ECLASS 27182003 classifications. With two-pack packaging, assembly parts included, and compatibility notes that prevent mixing with generation-two components, it streamlines procurement and installation for panel builders and OEMs.
Product Information
Extended Description
8620080 Rittal: VX Base/plinth trim panel, side, H: 200 mm, for D: 400 mm, stainless steel, 1.4301
Article number
VX 8620.080
Product description
To finish off a base/plinth unit at the sides and for additional stabilisation or for the interior configuration of bayed base/plinths. One 200 mm high or two 100 mm high trim panels may optionally be fitted on 200 mm high base/plinths.
Material
Stainless steel 1.4301 (AISI 304)
Surface finish
Brushed, grain 400
Supply includes
Assembly parts
Note
Components from the 1st generation base/plinth system cannot be combined with components from the 2nd generation base/plinth system
Dimensions
Height: 200 mm
To fit
Depth: = 400 mm
Type rating to UL 50E
Type 1
Weight/pack
2.69 kg
Packs of
2 pc(s).
Customs tariff number
94039910
EAN
4028177922402
ETIM 9
EC000721
ECLASS 8.0
27182003
Product description
VX Base/plinth trim panel, side, H: 200 mm, for D: 400 mm, stainless steel, 1.4301
Feature stainless steel 1.4301 (AISI 304) material delivers excellent corrosion resistance and long service life in challenging environments. Business impact reduces maintenance costs and downtime while preserving the cabinet’s exterior integrity. Applications include base/plinth units in electrical and industrial enclosures where side finish is critical for aesthetics and protection. Feature height of 200 mm and depth fit of 400 mm ensure a precise fit with bayed base/plinth configurations, improving alignment and stability. Feature pack of 2 panels with assembly parts included simplifies stocking and on-site assembly, reducing procurement complexity and lead times. Application-ready packaging supports efficient logistics for panel builders and OEMs. Feature note about 1st generation versus 2nd generation compatibility prevents misfit and return interventions, protecting project schedules. Brushed surface finish (grain 400) minimizes cosmetic wear and makes cleaning easier in harsh environments. Feature UL 50E Type 1 rating provides a validated safety margin for enclosure components, supporting compliance and risk mitigation. These specifications align with industry standards like ETIM EC000721 and ECLASS 27182003, easing procurement across multi-vendor projects.
Get a Quick Quote for a Rittal 8620080
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8620080?
Enquire Now
FAQs
Install requires the included assembly parts and aligns with the 200 mm high edge of a 400 mm deep base/plinth. For bayed configurations, fit one panel on each side or two panels for added stability. Do not mix with second-generation components to avoid fit issues.
The panel is 200 mm in height and designed for a 400 mm depth. It is made from stainless steel 1.4301 (AISI 304) with a brushed grain finish (grain 400), offering corrosion resistance and ease of cleaning.
Compatibility is generation-specific: components from the 1st generation base/plinth system cannot be combined with 2nd generation parts. Ensure you select matching generation components to avoid misfit and maintaining system integrity.
Yes. VX 8620.080 is specified with UL 50E Type 1 rating, providing a recognized standard for safe operation in enclosures and contributing to overall compliance of the base/plinth assembly.
The product ships as packs of two panels, with a weight of approximately 2.69 kg per pack, and includes the necessary assembly parts for straightforward installation.
