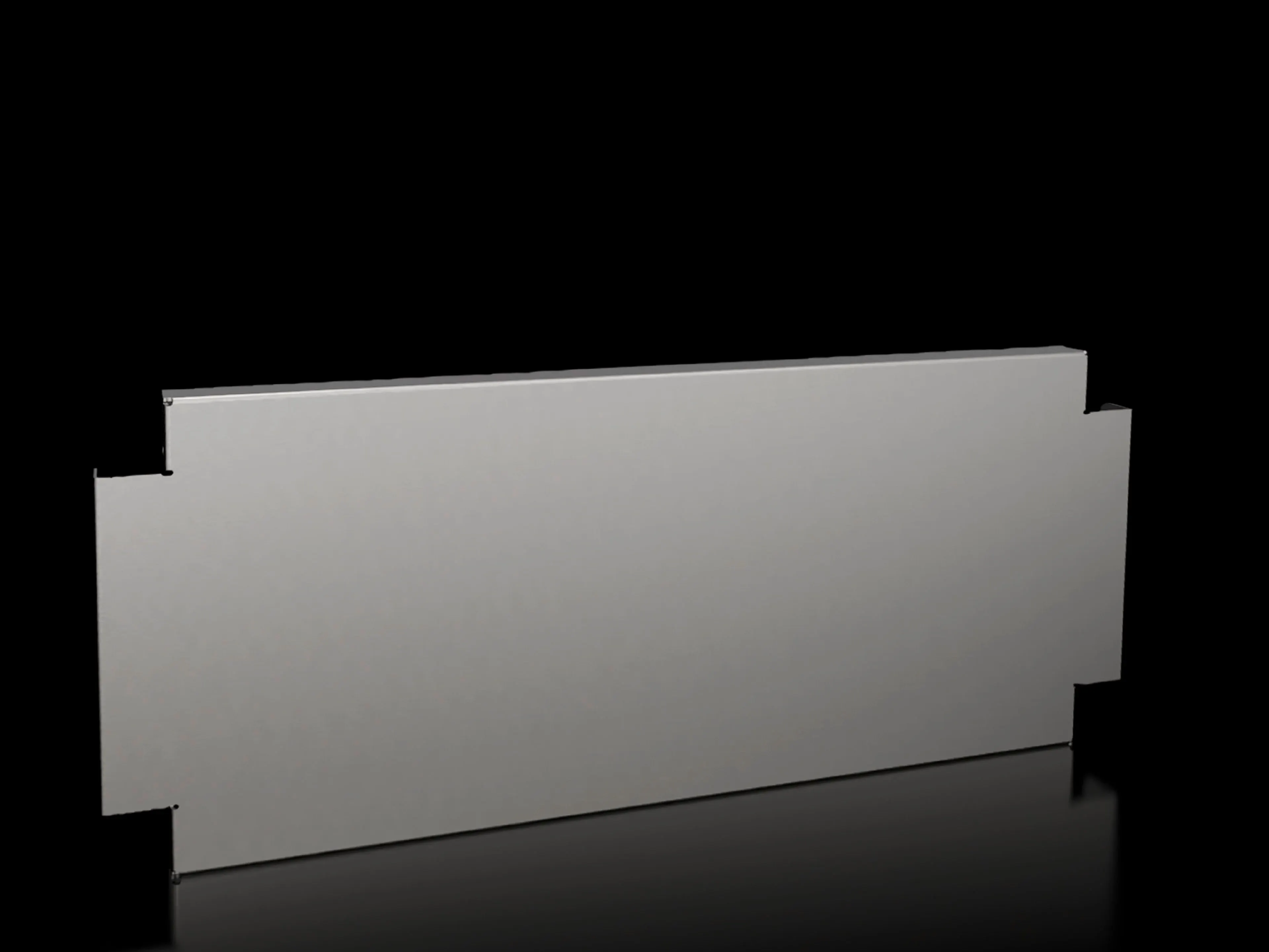

Rittal VX 8620.081 Base/Plinth Panel - UL Type 1
Part Number: 8620081
Quick Summary
VX 8620.081 base/plinth trim panel is a stainless steel finishing accessory that cleanly closes the sides of base units in industrial enclosures. That finishing touch resolves common installation challenges by eliminating exposed gaps that can collect dust and disrupt interior configurations when baying base/plinths. This product carries a UL 50E Type 1 rating and uses stainless steel 1.4301 (AISI 304) with a brushed grain finish, while ETIM 9 EC000721 and ECLASS 8.0 27182003 classifications support procurement and specification workflows. When used with the right base/plinth components, it delivers a reliable, aesthetically consistent enclosure finish, reducing rework and improving maintenance cycles. It also aligns with internal standards for corrosion resistance and long-term lifecycle cost efficiency for critical industrial applications.
Product Information
Extended Description
8620081 Rittal: VX Base/plinth trim panel, side, H: 200 mm, for D: 500 mm, stainless steel, 1.4301
Article number
VX 8620.081
Product description
To finish off a base/plinth unit at the sides and for additional stabilisation or for the interior configuration of bayed base/plinths. One 200 mm high or two 100 mm high trim panels may optionally be fitted on 200 mm high base/plinths.
Material
Stainless steel 1.4301 (AISI 304)
Surface finish
Brushed, grain 400
Supply includes
Assembly parts
Note
Components from the 1st generation base/plinth system cannot be combined with components from the 2nd generation base/plinth system
Dimensions
Height: 200 mm
To fit
Depth: = 500 mm
Type rating to UL 50E
Type 1
Weight/pack
3.56 kg
Packs of
2 pc(s).
Customs tariff number
94039910
EAN
4028177922419
ETIM 9
EC000721
ECLASS 8.0
27182003
Product description
VX Base/plinth trim panel, side, H: 200 mm, for D: 500 mm, stainless steel, 1.4301
Feature → 1: Material and finish provide corrosion resistance and a professional appearance, which reduces maintenance while enhancing enclosure longevity. Business impact → Lower total cost of ownership through fewer cosmetic repairs and easier cleaning; Application → Suitable for harsh industrial environments requiring a brushed stainless steel surface. Feature → 2: UL Type 1 rated protection ensures compliance for electrical enclosures, delivering safety and regulatory peace of mind. Business impact → Simplified certification processes and reduced risk during commissioning; Application → Ideal for switchgear, control panels, and bayed base/plinth configurations. Feature → 3: Precise dimensions—Height 200 mm, fits Depth 500 mm—facilitating predictable fit across standard basements. Business impact → Faster installation, fewer field modifications, and improved alignment with adjacent panels; Application → Used where 200 mm high trim is required on 500 mm deep bays. Feature → 4: Pack contents and assembly parts included, with packs of 2 pieces per order, simplifying on-site assembly. Business impact → Shorter install times and fewer accessory sourcing delays; Application → Ready-to-use with 1st and 2nd generation base/plinth components with proper planning. Feature → 5: Compatibility note clarifies first- vs second-generation components, preventing mismatches and rework. Business impact → Higher installation confidence and consistent performance across deployments; Application → Use in standard 1st-gen base/plinth systems where applicable.
Get a Quick Quote for a Rittal 8620081
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8620081?
Enquire Now
FAQs
VX 8620.081 is designed for standard base/plinth configurations and carries compatibility guidance within Rittal’s documentation. Note that components from the 1st generation base/plinth system cannot be mixed with 2nd generation components, so verify your bay configuration before ordering to ensure a proper fit and reliable assembly.
The trim panel is made from stainless steel 1.4301 (AISI 304) with a brushed grain 400 surface finish. This combination delivers corrosion resistance, ease of cleaning, and a professional appearance suitable for demanding industrial environments.
The panel is 200 mm high and designed to fit a 500 mm depth base/plinth. Each pack contains two panels and assembly parts, with a weight of 3.56 kg per pack, facilitating straightforward on-site mounting and alignment with adjacent components.
Ideal for finishing the sides of base/plinth units in Rittal enclosures, bayed configurations, and interior reconfigurations where a clean, stable side finish is required. It supports secure assembly while enhancing enclosure aesthetics and protection.
The product carries a UL Type 1 rating (UL 50E) for enclosures, and is classified under ETIM 9 EC000721 and ECLASS 8.0 27182003, with a corresponding EAN 4028177922419 to support procurement and compliance workflows.
