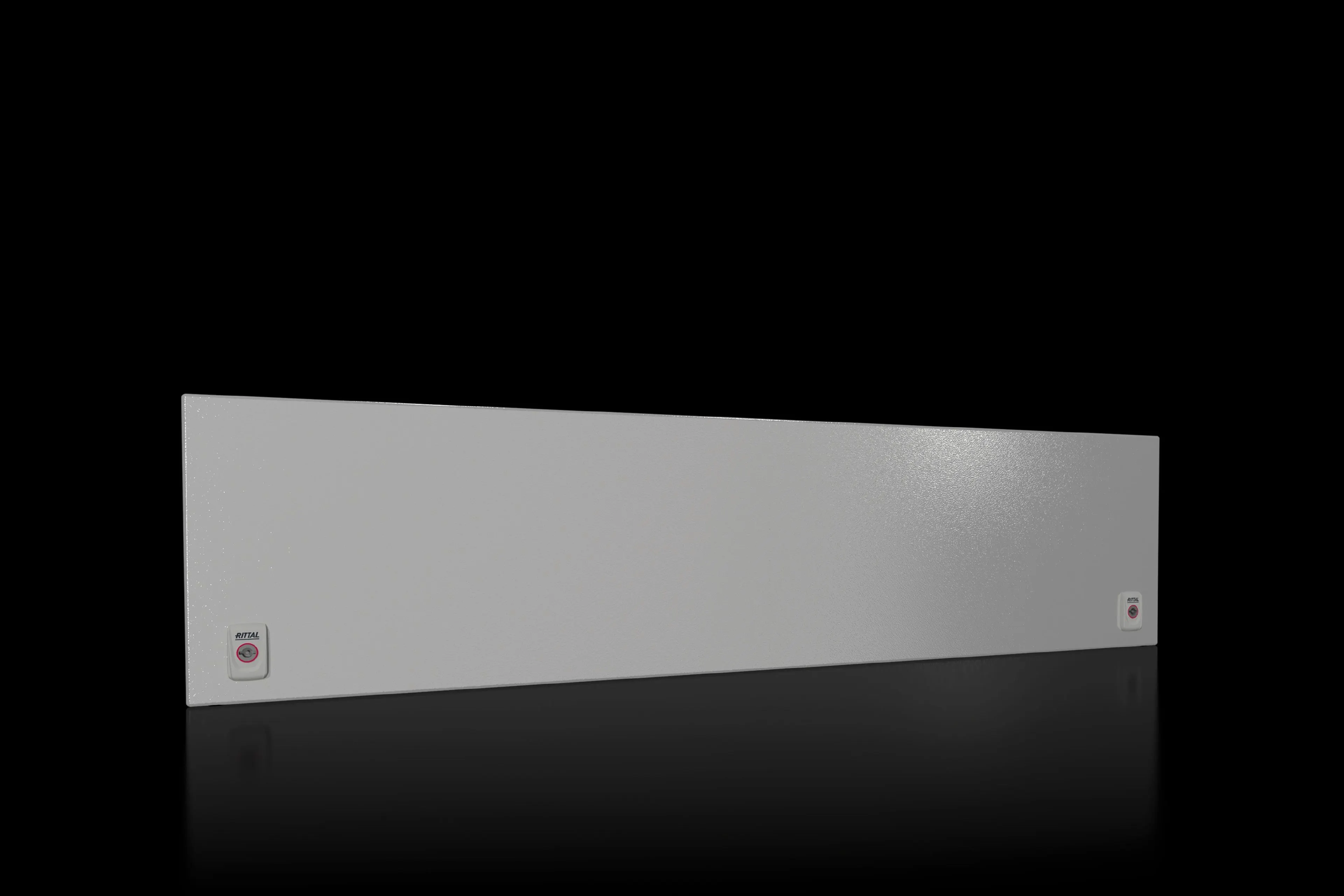

Rittal VX 8620.502 Trim Panel 1200x300 - IP54
Part Number: 8620502
Manufacturer
Rittal
Part number
8620502
Alt Part Number
VX 8620.502
Quick Summary
Rittal VX 8620.502 Trim Panel is designed to house control and display components in modular enclosures used in industrial automation. For engineers, upgrading control panels without compromising access, protection, or aesthetic consistency can be time-consuming and costly. The product carries an IP54 rating for dust and water ingress, a textured RAL 7035 finish, and a 2 mm sheet‑steel construction that supports heavy-duty industrial use. By combining these protections with a modular front design and included mounting hardware, it enables faster assembly, easier service, and predictable branding across facilities. This ensures compliant installations, improved uptime, and lower lifecycle costs when integrating control and display components.
Product Information
Extended Description
8620502 Rittal: VX Trim panel, hinged at the top, WH: 1200x300 mm
Article number
VX 8620.502
Product description
For the installation of control and display components, in conjunction with modular front design and protective bar.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Trim panel | Hinges | Cam lock with 3 mm double-bit insert | Assembly parts
Dimensions
Height: 300 mm
To fit
Width: 1,200 mm
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
8.18 kg
PCF per pack (cradle-to-gate)
31.2 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177922594
ETIM 9
EC002617
ECLASS 8.0
27189260
Product description
VX Trim panel, hinged at the top, WH: 1200x300 mm
Feature: IP54 protection and 2 mm sheet steel; Business Impact: guards against dust and water splash in production environments, reducing field repair needs; Application: ideal for machine centers and process plants where panels face harsh conditions. Feature: Textured RAL 7035 finish; Business Impact: long-term cosmetic durability and consistent branding across facilities; Application: maintenance-friendly cabinets and multi-site deployments. Feature: Modular front design compatibility; Business Impact: enables rapid mounting of controls and displays with minimal custom fabrication; Application: scalable upgrades during line modernization. Feature: Included hardware (trim panel, hinges, cam lock with 3 mm double-bit insert, assembly parts); Business Impact: simplifies procurement and speeds installation; Application: on-site assembly with fewer vendor coordination steps. Feature: Weight 8.18 kg and PCF 31.2 kg CO2 eq (Cat B); Business Impact: manageable package weight and transparent environmental footprint; Application: lifecycle cost modeling and sustainability reporting.
Get a Quick Quote for a Rittal 8620502
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8620502?
Enquire Now
FAQs
To install, align the trim panel within the enclosure opening, attach the supplied hinges for secure top mounting, and fasten the cam lock with the included 3 mm double-bit insert. Ensure the panel engages the modular front design properly, then secure assembly parts as directed to preserve IP54 integrity and front accessibility for controls.
Key specs include 2 mm sheet steel construction, textured paint surface in RAL 7035, IP54 protection, dimensions of 1200 mm width by 300 mm height, and weight per pack of 8.18 kg. The pack also includes hinges, cam lock, and mounting hardware to support reliable, repeatable installations in industrial environments.
Yes. The IP54 rating provides protection against dust ingress and water splashes, while the 2 mm steel construction offers rigidity against vibration and impact typical of manufacturing floors. The textured finish helps hide wear, ensuring a professional look over time in demanding environments.
The panel aligns with ETIM 9 EC002617 and ECLASS 8.0 27189260 classifications, aiding procurement data accuracy. It is designed to fit modular front assemblies and is compatible with standard 1200x300 mm enclosures, facilitating quick integration with existing control components.
The integrated hardware kit reduces procurement steps and field fabrication, speeding up commissioning and service routines. The IP54 protection minimizes downtime from dust and moisture, while the durable finish lowers repaint and replacement frequency, delivering measurable lifecycle cost savings over multiple plant upgrades.
