Rittal VX 8628.000 Enclosure - IP55, IK10, UL 50E Type 1
Part Number: 8628000
Manufacturer
Rittal
Part number
8628000
Alt Part Number
VX 8628.000
Quick Summary
The VX 8628.000 enclosure from Rittal protects control panels and streamlines interior installation for industrial automation. Engineers often struggle with cramped layouts, messy cable routing, and inadequate sealing that compromise uptime. This enclosure delivers IP55 protection, NEMA 12 compliance, IK10 impact resistance, and UL 50E Type 1 suitability, supporting safety and regulatory alignment. Built from durable sheet steel with a powder-coated exterior, it combines rugged longevity with install flexibility, including a door hinged on the right that can be swapped to the left and a mounting plate sized for efficient panel mounting. Ideal for machine builders and electrical contractors, it reduces lifecycle costs and simplifies maintenance.
Product Information
Extended Description

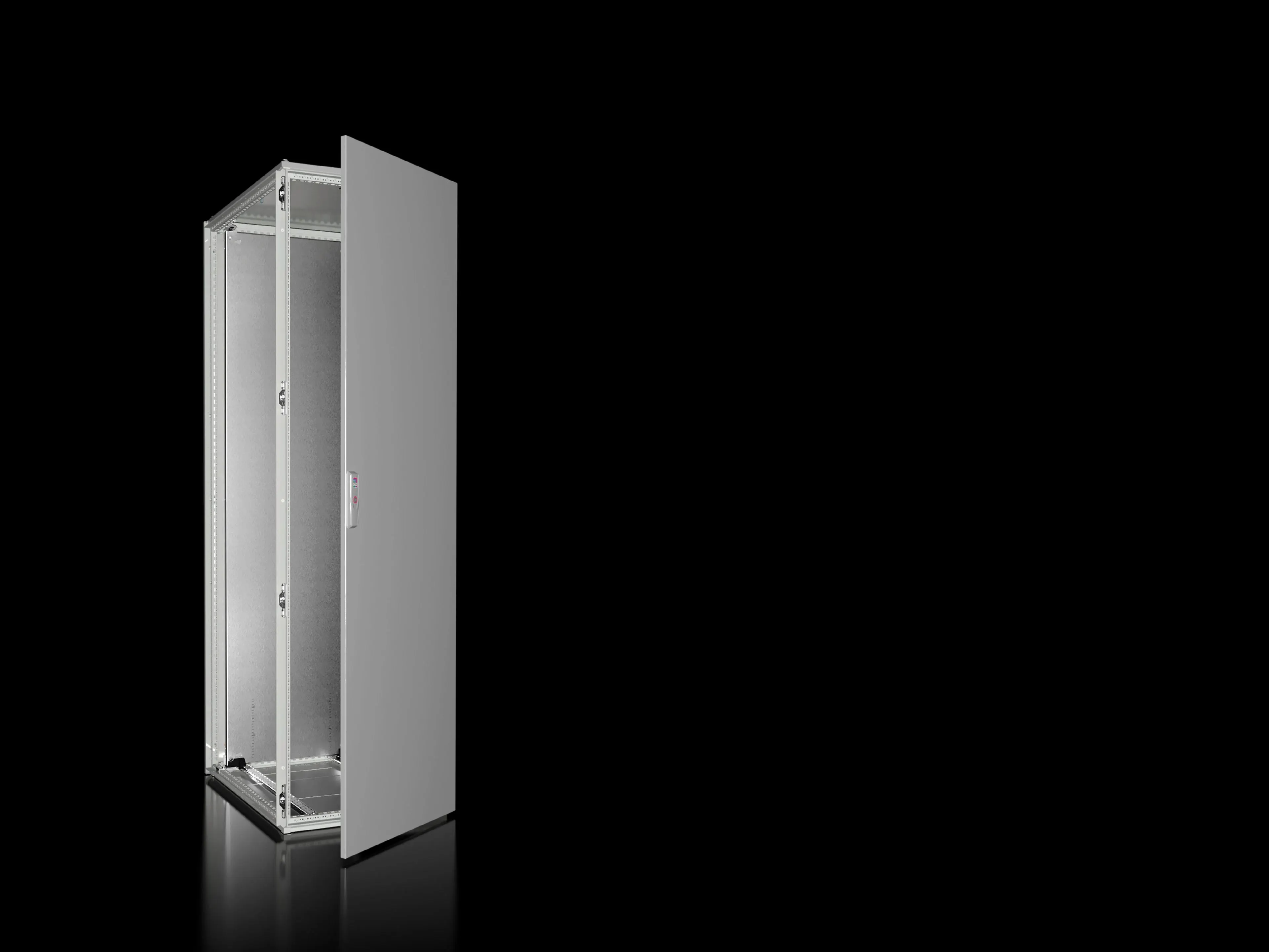

8628000 Rittal: VX Baying enclosure system, WHD: 600x2200x800 mm, Sheet steel, with mounting plate, single door at the front
Article number
VX 8628.000
Material
Enclosure frame: Sheet steel, 1.5 mm | Roof: Sheet steel, 1.5 mm | Door: Sheet steel, 2.0 mm | Rear panel: Sheet steel, 1.5 mm | Gland plates: Sheet steel, 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure frame: Dipcoat-primed | Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate and gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure frame | Door(s) | Door hinged on the right, may be swapped to the left | Roof plate | Rear panel | Gland plates | Mounting plate | 2 punched rails 18 x 39 mm | Lock: 3 mm double-bit
Dimensions
Width: 600 mm | Height: 2,200 mm | Depth: 800 mm
Dimensions mounting plate (W x H)
499 mm x 2,096 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
1
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
114 kg
PCF per pack (cradle-to-gate)
280.9 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
8421399090
EAN
4028177936003
EAN11 (UC)
94138
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
VX Baying enclosure system, WHD: 600x2200x800 mm, Sheet steel, with mounting plate, single door at the front
Feature: Sheet steel enclosure frame and doors with thicknesses up to 2.0 mm deliver robust mechanical protection. Business Impact: Reduced risk of damage from routine servicing and accidental impacts, lowering maintenance costs. Application: Suitable for demanding environments in manufacturing lines, packaging machines, and process automation where steady enclosure integrity is essential. Feature: IP55 protection, NEMA 12 sealing, and IK10 impact rating. Business Impact: Enhanced boundary protection against dust, water ingress, and physical shocks, translating to longer cabinet life and fewer field repairs. Application: Use in dusty factories or humid production areas where reliable sealing is critical. Feature: Dimensions 600 x 2200 x 800 mm with a single front door and mounting plate 499 x 2096 mm. Business Impact: Optimized space for interior installations and straightforward mounting, reducing installation time by hours. Application: Ideal for control panels requiring precise component layout and efficient cable routing. Feature: Ready-to-install set with door (right-hinged by default, left hinge option), roof plate, rear panel, gland plates, mounting plate, and punched rails. Business Impact: Faster commissioning and less on-site modification, lowering project risk and installation costs. Application: Panel builders and integrators seeking plug-and-play enclosure solutions. Feature: Weight 114 kg per pack and PCF 280.9 kg CO2 eq (Cat B). Business Impact: Clear material durability metrics and environmental footprint guidance support lifecycle planning and sustainable procurement. Application: Projects with carbon tracking and end-to-end lifecycle cost analyses.
Get a Quick Quote for a Rittal 8628000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8628000?
Enquire Now
FAQs
The VX 8628.000 supports a right-hand hinged door by default, with the option to swap to left-handed hinging. It includes a mounting plate (499 x 2096 mm), two punched rails (18 x 39 mm), a roof plate, rear panel, and gland plates, enabling flexible interior configurations and straightforward field adaptation for diverse control cabinet layouts.
Yes. The enclosure is rated UL 50E Type 1, indicating suitability for indoor electrical enclosures in general purpose environments. This aligns with many electrical control panel installations and supports compliance in typical industrial settings where Type 1 enclosures are standard.
External dimensions are Width 600 mm, Height 2,200 mm, Depth 800 mm. The mounting plate measures 499 x 2,096 mm, and the unit ships with 2 punched rails (18 x 39 mm). This setup supports standardized component layouts and compatible rail-mounted devices within a compact but tall cabinet footprint.
The enclosure provides IP55 protection and NEMA 12 rating, with IK10 impact resistance. It also carries UL 50E Type 1 compliance, which helps meet safety and regulatory expectations for indoor industrial applications and ensures durable performance in high-demand environments.
The unit weighs 114 kg per pack, reflecting its sturdy sheet steel construction. PCF is 280.9 kg CO2 eq (Cat B), aiding in lifecycle assessments and sustainability planning for projects requiring carbon footprint tracking.
