Rittal VX 8660.000 Base/Plinth Corner Piece - UL Type 1
Part Number: 8660000
Manufacturer
Rittal
Part number
8660000
Alt Part Number
VX 8660.000
Quick Summary
Rittal VX 8660.000 base/plinth corner piece with trim panels provides a stable base entry for VX enclosures in industrial settings. When base corners shift or misalign, cable management, door alignment, and installation time suffer. This accessory carries UL 50E Type 1 certification, plus ETIM EC000721 and ECLASS 27182003 conformance, supporting regulatory compliance and straightforward procurement. It also enhances compatibility with VX IT, VX SE, and related enclosure families, delivering reliable mounting and reduced total cost of ownership. For engineers and procurement teams, the solution translates to faster installs, predictable performance, and greater design flexibility in dense cabinet layouts.
Product Information
Extended Description

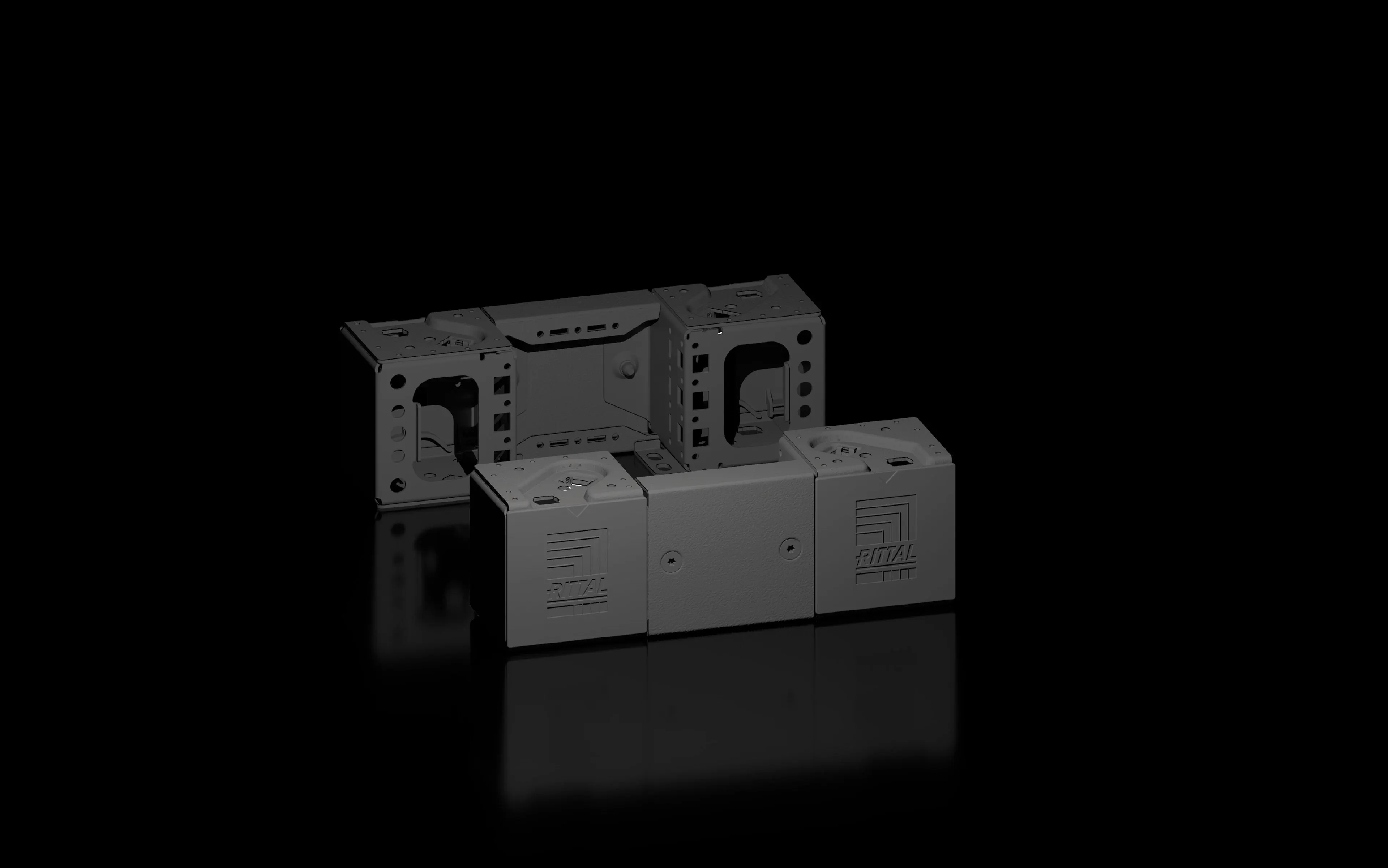

8660000 Rittal: VX base/plinth corner piece with trim panel, front and rear, H: 100 mm, for W: 300 mm, sheet steel
Article number
VX 8660.000
Benefits
Reliable – Excellent stability of the base/plinth
Material
Base/plinth corner piece: Sheet steel | Base/plinth trim panel front/rear: Sheet steel | Corner and baying cover: Plastic
Colour
RAL 9005
Supply includes
4 corner covers | Assembly parts | 4 base/plinth corner pieces, 100 mm high | 2 base/plinth trim panels, front/rear, 100 mm high
Note
Side base/plinth trim panels finish off a base/plinth unit or provide additional stabilisation between base/plinths or enable interior configuration of the base/plinth
Dimensions
Height: 100 mm
To fit
Enclosure type: VX | VX IT | VX SE | TX CableNet | TS | TS IT | TP | PC | IW | CX | Width: = 300 mm
Type rating to UL 50E
Type 1
Weight/pack
3.24 kg
Packs of
2 pc(s).
PCF per pack (cradle-to-gate)
12.3 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177978027
ETIM 9
EC000721
ETIM 8
EC000721
ECLASS 8.0
27182003
Product description
VX base/plinth corner piece with trim panel, front and rear, H: 100 mm, for W: 300 mm, sheet steel
Feature: 100 mm base height and 300 mm width align precisely with VX enclosure footprints. Business Impact: Ensures stable, vibration-resistant mounting and predictable cable routing, reducing rework and maintenance costs. Application: Ideal for VX, VX IT, VX SE installations in manufacturing and data environments where space is at a premium. Long-tail keyword usage: base height 100 mm VX, 300 mm wide enclosure base, stable VX base components. Feature: Sheet steel construction for base/plinth corner pieces and trim panels with plastic corner and baying covers. Business Impact: Delivers durable load-bearing performance with corrosion resistance in harsh environments, extending enclosure life. Application: Suitable for panel-ready baselines in industrial automation and power distribution cabinets. Long-tail keywords: sheet steel base components, corrosion-resistant corner pieces, trim panels for VX bases. Feature: Complete supply includes 4 corner covers, 4 base/plinth corner pieces, 2 trim panels, and assembly parts. Business Impact: Speeds up installation, reduces parts waiting time, and minimizes project delays. Application: Fast-on-site upgrades or new VX enclosure configurations. Long-tail keywords: VX base kit, corner cover set, plinth trim panels. Feature: UL 50E Type 1 rating and ETIM/ECLASS alignment. Business Impact: Aligns with safety requirements and modern cataloging standards, improving audit readiness and purchasing confidence. Application: Suitable for electrical enclosures in controlled environments and regulated sectors. Long-tail keywords: UL Type 1 base component, ETIM EC000721, ECLASS 27182003. Feature: Color and finish in RAL 9005 black enhances visibility and mix-and-match with standard enclosures. Business Impact: Improves aesthetic consistency and reduces additional finishing costs. Application: Configurations where standard enclosure palettes are required for plant-wide branding. Long-tail keywords: RAL 9005 finish, enclosure color matching, black base trim panels. Feature: PCF and sustainability data support responsible sourcing. Business Impact: Enables cradle-to-gate environmental assessment and client ESG reporting. Application: Packaging in packs of 2 with a PCF of 12.3 kg CO2 eq (Cat B); supports lifecycle analyses. Long-tail keywords: cradle-to-gate PCF, CO2 eq, sustainable enclosure components.
Get a Quick Quote for a Rittal 8660000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8660000?
Enquire Now
FAQs
The VX 8660.000 is a base/plinth corner piece with trim panels designed to fit VX enclosure widths of 300 mm, providing a stable 100 mm high base. It includes front and rear trim and corner covers, enabling clean cable entry and secure mounting for VX, VX IT, VX SE and related families.
UL Type 1 certification guarantees safe enclosure mounting and compliance with standard electrical cabinet practices under UL 50E. For installers, this simplifies approvals, reduces risk during commissioning, and supports regulatory alignment in North American installations.
Yes. The VX 8660.000 is designed to fit enclosure types in the VX family, including VX IT and VX SE, and it coordinates with 300 mm-wide VX configurations. Its trim panels and corner pieces facilitate consistent base alignment across multiple VX variants.
Each pack includes 4 base/plinth corner pieces (100 mm high), 2 base/plinth trim panels (front/rear), 4 corner covers, and assembly parts, ensuring complete installation when configuring a VX enclosure base system.
The pack provides cradle-to-gate PCF data of 12.3 kg CO2 eq (Cat B). It ships as a 2-piece pack, with sustainability documented to support ESG reporting and lifecycle analyses for enclosure projects.
