Rittal VX 8660.003 Base/Plinth Corner - UL Type 1
Part Number: 8660003
Manufacturer
Rittal
Part number
8660003
Alt Part Number
VX 8660.003
Quick Summary
Rittal VX 8660.003 base/plinth corner pieces provide sturdy base support for 800 mm VX enclosures in control panels. Without reliable corner pieces, base instability and misalignment can complicate assembly and door alignment during service. UL 50E Type 1 certification ensures safe, standardized performance, while ETIM EC000721 classification and ECLASS 8.0 27182003 provide consistent data across procurement systems. By pairing sheet steel components for strength with plastic covers for easy handling, these corner pieces deliver rapid install and durable long-term stability. This solution aligns with VX enclosure families and IT-ready configurations, reducing field modification needs and improving total cost of ownership. Secondary benefits include trim panel finish, RAL 9005 color, and streamlined compatibility across VX variants.
Product Information
Extended Description

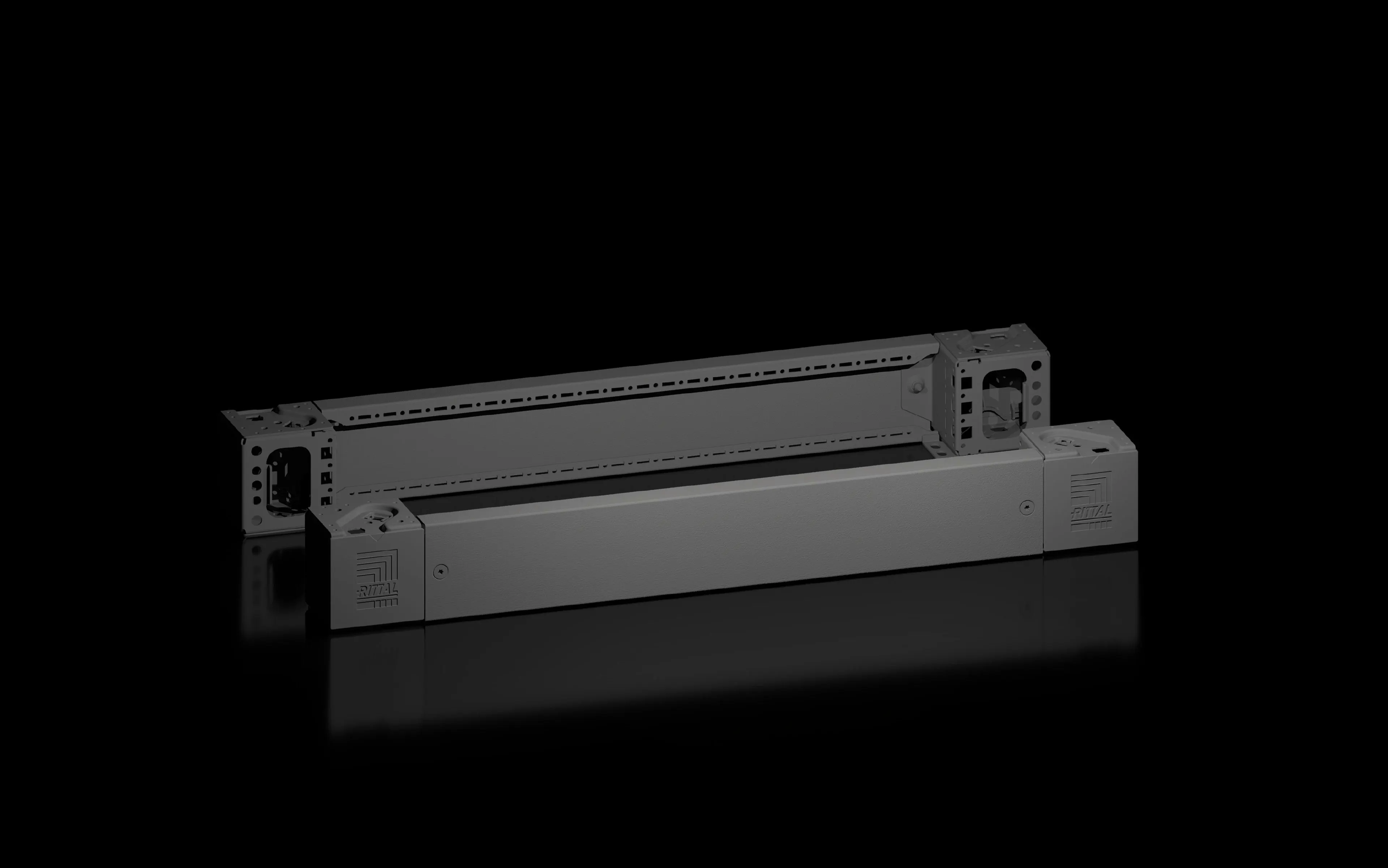

8660003 Rittal: VX base/plinth corner piece with trim panel, front and rear, H: 100 mm, for W: 800 mm, sheet steel
Article number
VX 8660.003
Benefits
Reliable – Excellent stability of the base/plinth
Material
Base/plinth corner piece: Sheet steel | Base/plinth trim panel front/rear: Sheet steel | Corner and baying cover: Plastic
Colour
RAL 9005
Supply includes
4 corner covers | Assembly parts | 4 base/plinth corner pieces, 100 mm high | 2 base/plinth trim panels, front/rear, 100 mm high
Note
Side base/plinth trim panels finish off a base/plinth unit or provide additional stabilisation between base/plinths or enable interior configuration of the base/plinth
Dimensions
Height: 100 mm
To fit
Enclosure type: VX | VX IT | VX SE | TX CableNet | TS | TS IT | TP | PC | IW | CX | Width: = 800 mm
Type rating to UL 50E
Type 1
Weight/pack
5.42 kg
Packs of
2 pc(s).
PCF per pack (cradle-to-gate)
20.7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177978058
ETIM 9
EC000721
ETIM 8
EC000721
ECLASS 8.0
27182003
Product description
VX base/plinth corner piece with trim panel, front and rear, H: 100 mm, for W: 800 mm, sheet steel
Feature: Robust base/plinth corner construction. Business Impact: Improves base stability and reduces wobble, ensuring consistent door alignment and safer maintenance. Application: Fits VX family enclosures at 800 mm width, including VX IT and VX SE variants. Feature: Comprehensive supply kit. Business Impact: Cuts lead time and lowers procurement complexity by including all corner covers, corner pieces, and trim panels in a single pack. Application: Ideal for rapid installation on new builds or refurbishments. Feature: Material and finish. Business Impact: Sheet steel return-load parts deliver durability; plastic covers simplify handling and installation. Application: Suitable for demanding industrial environments with a consistent RAL 9005 finish. Feature: Packaging and sustainability. Business Impact: Weight per pack and CO2e metrics support lean logistics and sustainability goals. Application: 5.42 kg per pack; PCF 20.7 kg CO2 eq (Cat B). Feature: Certification and compatibility. Business Impact: UL 50E Type 1 compliance ensures regulator-approved performance; broad enclosure compatibility minimizes modifications. Application: VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX families at 800 mm width.
Get a Quick Quote for a Rittal 8660003
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8660003?
Enquire Now
FAQs
Install the four corner pieces onto the enclosure base, then attach the front and rear trim panels. Fit the corner covers to conceal joints and secure with the included assembly parts. The kit is designed for 800 mm wide VX families and aligns with 100 mm height requirements, reducing field modification time.
Key specs include 100 mm height, 800 mm width compatibility, sheet steel base/plinth components, RAL 9005 colour, UL 50E Type 1 rating, and packaging as 2 packs per carton with 4 corner covers, 4 corner pieces and 2 trim panels per pack. It supports VX, VX IT, VX SE and related VX variants.
Yes. The VX 8660.003 corner kit is designed to work with VX IT and other VX variants, providing stable base support, easy integration with IT equipment, and consistent alignment for doors and panels across IT-ready configurations.
The product carries UL 50E Type 1 certification, ensuring compliance with enclosure enclosure standards for safety and performance. ETIM EC000721 and ECLASS 27182003 data classifications support consistent product data across procurement ecosystems, aiding sourcing and compliance.
By improving base stability, reducing installation time, and limiting need for field modifications, the kit lowers maintenance downtime and total cost of ownership. The robust sheet steel construction and RAL 9005 finish also reduce repainting and corrosion-related costs over the enclosure lifecycle.
