Rittal VX 8660.005 Base/plinth Corner - UL 50E Type 1
Part Number: 8660005
Manufacturer
Rittal
Part number
8660005
Alt Part Number
VX 8660.005
Quick Summary
The VX base/plinth corner piece delivers stable base support for VX enclosures in industrial control panels. Installers often face wobble, misalignment, and difficult cable routing at base interfaces; this kit provides robust stability and straightforward interior configuration. It is UL 50E Type 1 certified, and aligns with ETIM 9/ETIM 8 EC000721 and ECLASS 8.0 27182003 for global procurement. Combined with the included corner covers and trim panels, this base/plinth kit accelerates installation, supports consistent build quality across the VX family, and reduces long-term service costs.
Product Information
Extended Description

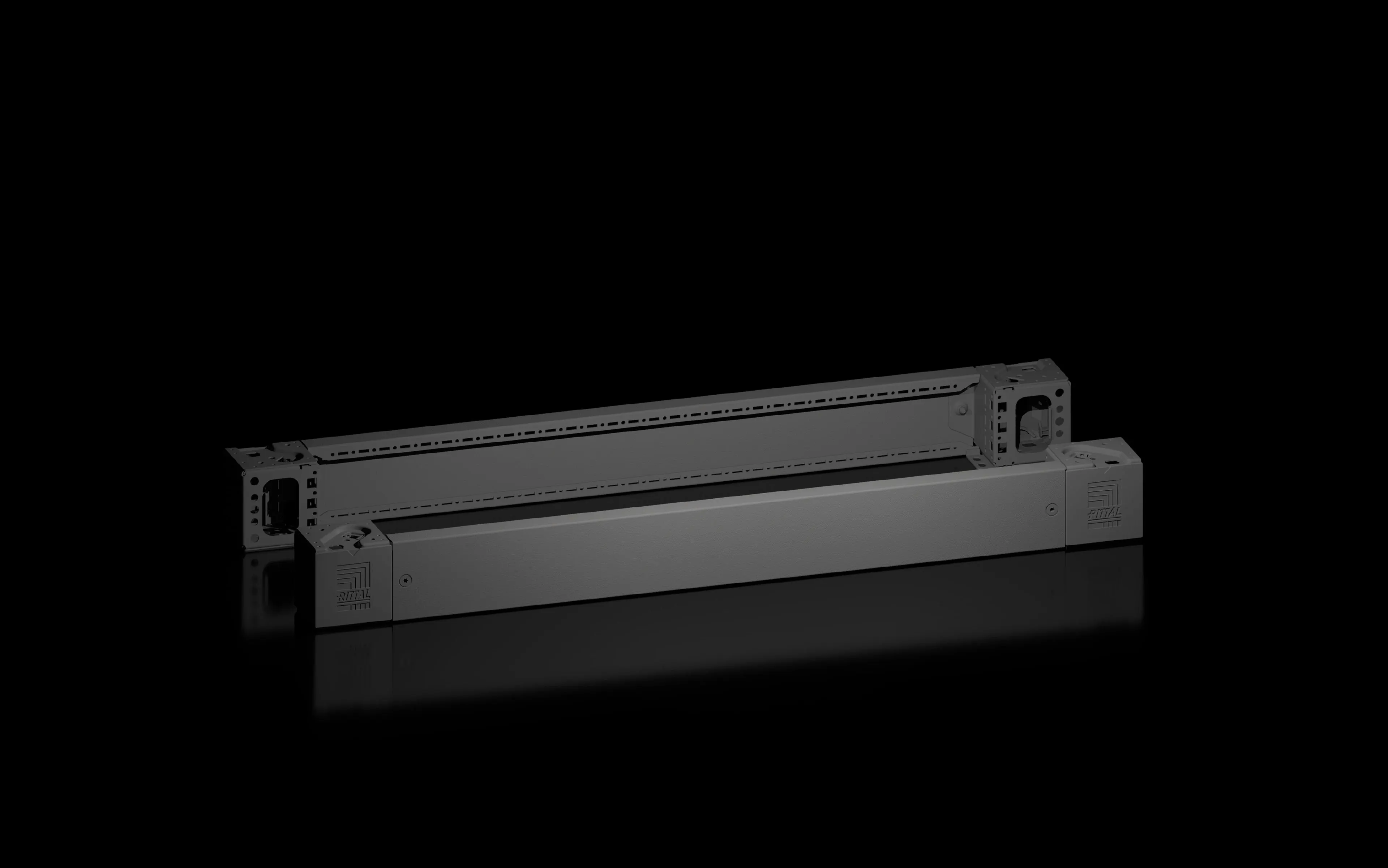

8660005 Rittal: VX base/plinth corner piece with trim panel, front and rear, H: 100 mm, for W: 1000 mm, sheet steel
Article number
VX 8660.005
Benefits
Reliable – Excellent stability of the base/plinth
Material
Base/plinth corner piece: Sheet steel | Base/plinth trim panel front/rear: Sheet steel | Corner and baying cover: Plastic
Colour
RAL 9005
Supply includes
4 corner covers | Assembly parts | 4 base/plinth corner pieces, 100 mm high | 2 base/plinth trim panels, front/rear, 100 mm high
Note
Side base/plinth trim panels finish off a base/plinth unit or provide additional stabilisation between base/plinths or enable interior configuration of the base/plinth
Dimensions
Height: 100 mm
To fit
Enclosure type: VX | VX IT | VX SE | TX CableNet | TS | TS IT | TP | PC | IW | CX | Width: = 1,000 mm
Type rating to UL 50E
Type 1
Weight/pack
6.19 kg
Packs of
2 pc(s).
PCF per pack (cradle-to-gate)
23.6 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177978089
ETIM 9
EC000721
ETIM 8
EC000721
ECLASS 8.0
27182003
Product description
VX base/plinth corner piece with trim panel, front and rear, H: 100 mm, for W: 1000 mm, sheet steel
Feature: 100 mm high base/plinth corner piece with front and rear trim panels. Business Impact: Improves base stability and panel alignment, reducing wobble and rework during installation. Application: Ideal for 1000 mm wide VX enclosures in control cabinets and machinery housings. Feature: Front/rear trim panels and corner covers constructed from sheet steel with plastic corner and baying covers. Business Impact: Delivers durable, corrosion-resistant surfaces at cable entry points while maintaining clean aesthetics. Application: Enhances interior cable management and shielding in harsh industrial environments. Feature: Complete kit includes four corner covers, four base/plinth corner pieces at 100 mm height, and two trim panels (front/rear). Business Impact: Streamlines procurement and cuts project lead times by reducing sourcing steps. Application: Fast, repeatable assembly across multiple VX variants (VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX). Feature: UL 50E Type 1 rating. Business Impact: Supports regulatory compliance and safe enclosure mounting in electrical installations. Application: Critical for systems requiring recognized safety performance in industrial environments. Feature: Sustainability and packaging data (PCF 23.6 kg CO2 eq, Cat B; packs of 2). Business Impact: Facilitates ESG reporting and lifecycle assessment for procurement. Application: Aligns with corporate environmental targets while delivering reliable base support. Feature: Color and finish (RAL 9005). Business Impact: Consistent appearance across VX installations and improved dust/shock resistance. Application: Suitable for white-label or standardized plant floors and equipment rooms.
Get a Quick Quote for a Rittal 8660005
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8660005?
Enquire Now
FAQs
Begin by aligning the four corner pieces to the base corners of the 1000 mm VX enclosure. Attach the four corner covers and secure them with the provided assembly parts. Install the front and rear trim panels to the corners, ensuring the 100 mm height is preserved. Final checks should confirm stable contact with the enclosure and proper cable entry alignment.
Key specs include height 100 mm, width compatibility for 1000 mm VX enclosures, sheet steel for corner pieces and trim panels, plastic corner covers, color RAL 9005, EAN 4028177978089, and a UL 50E Type 1 rating. The kit contains 4 corner covers, 4 corner pieces, and 2 trim panels, with a weight of 6.19 kg per pack and packs of 2.
Yes. The base/plinth corner kit is designed to fit a broad VX family range, including VX IT, VX SE, and other VX variants, as well as related enclosures like TX CableNet, TS, TS IT, TP, PC, IW, and CX, provided the overall enclosure width is 1000 mm.
The kit features UL 50E Type 1 certification for safe enclosure mounting. It also aligns with industry classification standards such as ETIM 9/ETIM 8 EC000721 and ECLASS 8.0 27182003 to support global procurement and data consistency.
The base/plinth corner piece reduces wobble and misalignment, shortening installation time and lowering rework costs. Its durable sheet steel construction enhances longevity in demanding environments, while the complete kit simplifies sourcing and stock management, contributing to predictable maintenance schedules and improved total cost of ownership.
