Rittal VX 8660.007 Base corner pieces - UL 50E
Part Number: 8660007
Manufacturer
Rittal
Part number
8660007
Alt Part Number
VX 8660.007
Quick Summary
Rittal VX 8660.007 base corner pieces provide a stable base for VX enclosures used in industrial control cabinets. Gaps or unstable bases can complicate cable routing and alignment, leading to assembly delays and reliability concerns. UL 50E Type 1 certification supports compliant cabinet performance, while the RAL 9005 finish and sheet steel construction reinforce durability in demanding environments. By combining robust base supports with trim panels, these components simplify installation, improve rigidity, and ensure consistent enclosure geometry. For engineers and procurement teams, the result is a repeatable, cost-efficient solution that enhances installation quality and long-term reliability while aligning with standard color-coding and material specs used across the VX family.
Product Information
Extended Description

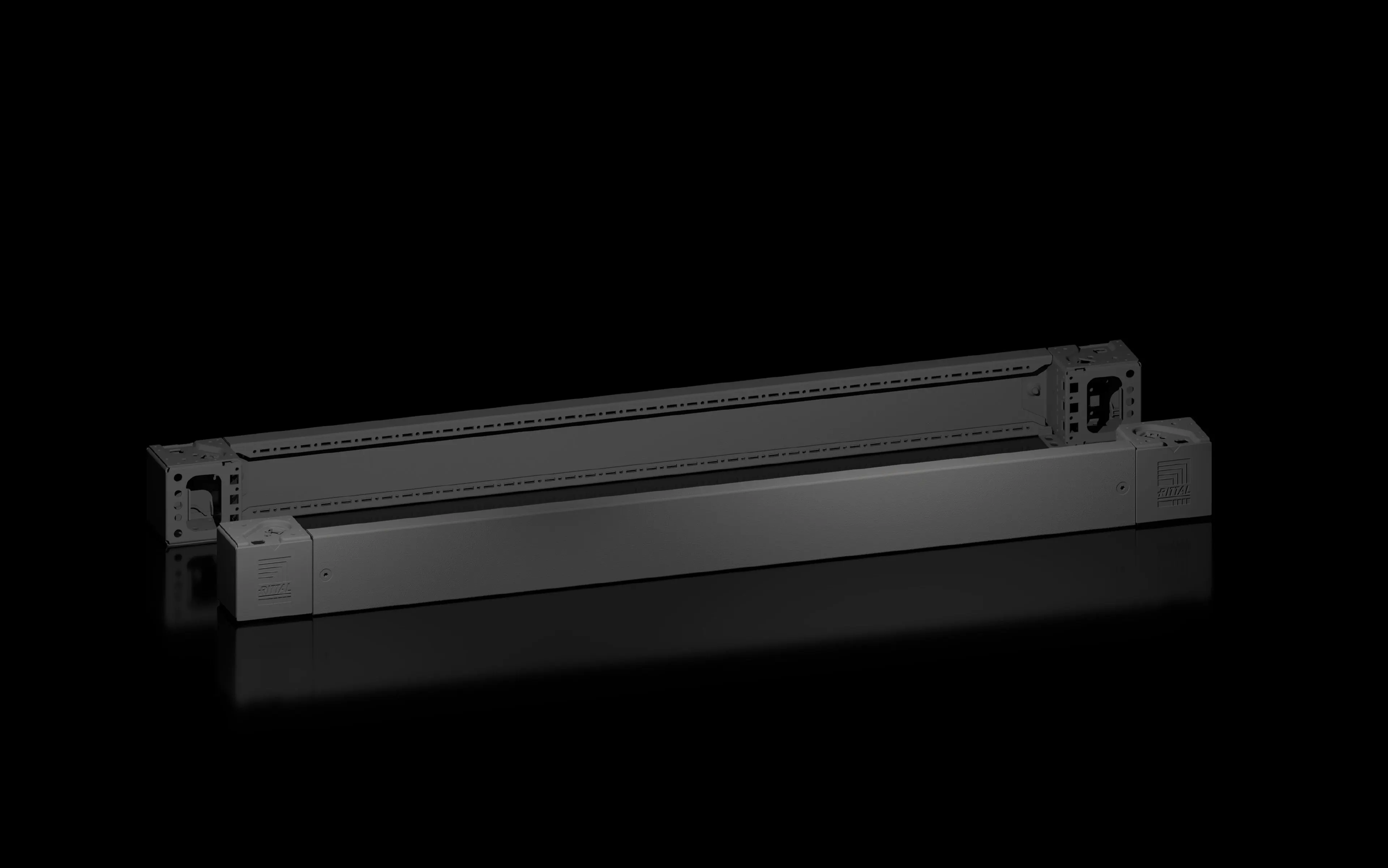

8660007 Rittal: VX base/plinth corner piece with trim panel, front and rear, H: 100 mm, for W: 1200 mm, sheet steel
Article number
VX 8660.007
Benefits
Reliable – Excellent stability of the base/plinth
Material
Base/plinth corner piece: Sheet steel | Base/plinth trim panel front/rear: Sheet steel | Corner and baying cover: Plastic
Colour
RAL 9005
Supply includes
4 corner covers | Assembly parts | 4 base/plinth corner pieces, 100 mm high | 2 base/plinth trim panels, front/rear, 100 mm high
Note
Side base/plinth trim panels finish off a base/plinth unit or provide additional stabilisation between base/plinths or enable interior configuration of the base/plinth
Dimensions
Height: 100 mm
To fit
Enclosure type: VX | VX IT | VX SE | TX CableNet | TS | TS IT | TP | PC | IW | CX | Width: = 1,200 mm
Type rating to UL 50E
Type 1
Weight/pack
7.01 kg
Packs of
2 pc(s).
PCF per pack (cradle-to-gate)
26.7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177978096
ETIM 9
EC000721
ETIM 8
EC000721
ECLASS 8.0
27182003
Product description
VX base/plinth corner piece with trim panel, front and rear, H: 100 mm, for W: 1200 mm, sheet steel
Feature: Stable base with integrated trim panels for front and rear height 100 mm. Business impact: Enables precise enclosure alignment and reduces flex under load, cutting commissioning time and improving reliability. Application: Use with VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW and CX widths at 1200 mm to standardize base assemblies.Feature: All-metal base/plinth components with sheet steel construction and plastic corner covers. Business impact: Delivers strong mechanical support with corrosion resistance and reduced maintenance costs. Application: Suitable for indoor industrial environments where ruggedness and long service life are critical.Feature: Includes four corner covers, four base/plinth corner pieces at 100 mm height, and two front/rear trim panels. Business impact: Speeds up installation, minimizes loose parts, and lowers field errors. Application: Ideal for quick-on-site assemblies and modular reconfigurations in growing facilities.Feature: Color and finish in RAL 9005 for consistent aesthetics and standardization. Business impact: Improves visual compliance with plant standards and reduces the need for repaints or touch-ups. Application: Aligns with existing enclosure color coding and visibility requirements.Feature: Type rating to UL 50E Type 1 and compatibility with VX families. Business impact: Ensures regulatory alignment, safer cabinet operation, and smoother qualification testing. Application: Supports durable, code-compliant installations across a broad VX portfolio.Feature: Pack and packaging details—2 pieces per pack, weight 7.01 kg per pack, with PCF 26.7 kg CO2 eq (Cat B). Business impact: Optimizes shipping, reduces logistics costs, and supports sustainability reporting. Application: Useful for planning lead times, freight budgeting, and carbon footprint calculations.
Get a Quick Quote for a Rittal 8660007
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8660007?
Enquire Now
FAQs
Begin by preparing the enclosure base surface and aligning the four base/plinth corner pieces at the corners. Attach the front and rear trim panels to complete the base profile, then fit the four corner covers. Ensure the 100 mm height matches the enclosure footprint, tighten all mounting hardware to factory torque specs, and verify overall stability before cable routing.
The 100 mm height creates a stable, repeatable base plane that reduces wobble and misalignment during assembly. The UL 50E Type 1 rating confirms enclosure integrity under standard electrical enclosure tests, improving safety, compliance, and predictive maintenance planning. Together, they support reliable operation in demanding industrial environments.
Yes. The VX 8660.007 is designed to fit VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW and CX enclosure families with a 1,200 mm width. This compatibility simplifies inventory management and enables a unified base solution across multiple enclosure platforms, reducing custom-fit parts and accelerating installations.
The product explicitly carries UL 50E Type 1 for enclosure performance. It is catalogued with ETIM 9 EC000721 and ECLASS 8.0 27182003 classifications, aiding digital product data exchange and cross-system integration. EAN 4028177978096 also supports precise product identification within procurement systems.
By delivering stable, pre-fitted base components, installation time and field rework are reduced, improving uptime and project throughput. The 7.01 kg per pack weight and 2-pack packaging optimize shipping and handling, while the noted PCF of 26.7 kg CO2 eq supports sustainability reporting and lifecycle cost considerations.
