Rittal VX 8660.020 Base/plinth Corner Piece - UL Type 1
Part Number: 8660020
Manufacturer
Rittal
Part number
8660020
Alt Part Number
VX 8660.020
Quick Summary
Rittal VX 8660.020 is a base/plinth corner piece with trim panels for robust enclosure foundations. In field installs, base instability and poorly managed cable entry can cause misalignment and increased maintenance. It carries UL 50E Type 1 rating for safe, compliant assembly and is specified for VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW and CX enclosures, finished in RAL 9005. This combination supports consistent aesthetics and rugged performance, while simplifying installation. For procurement teams and engineers, the predictable dimensions and included assembly components translate to faster deployments, better inventory control, and improved total cost of ownership across your cabinet fleet.
Product Information
Extended Description

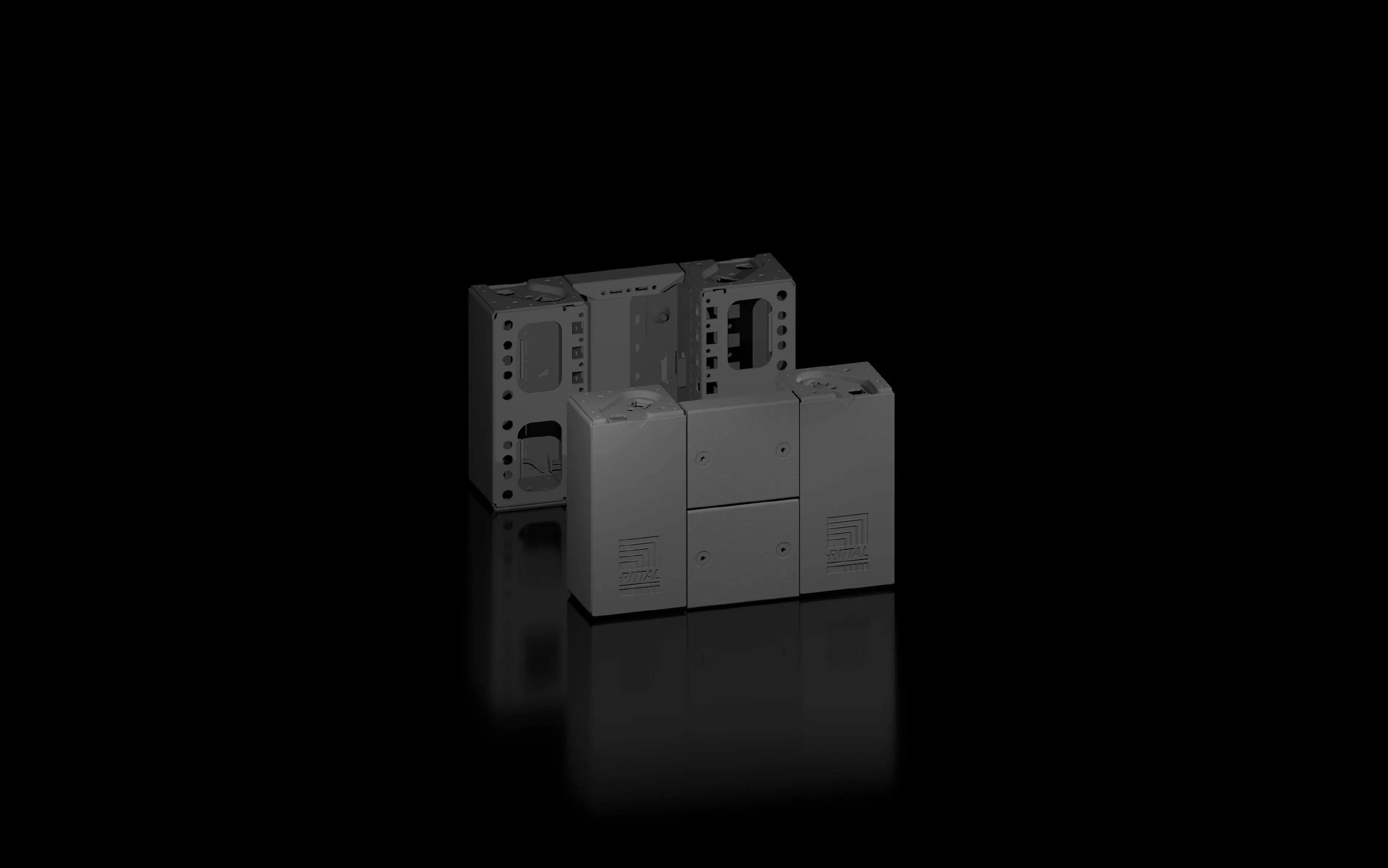

8660020 Rittal: VX base/plinth corner piece with trim panel, front and rear, H: 200 mm, for W: 300 mm, sheet steel
Article number
VX 8660.020
Benefits
Reliable – Excellent stability of the base/plinth
Material
Base/plinth corner piece: Sheet steel | Base/plinth trim panel front/rear: Sheet steel | Corner and baying cover: Plastic
Colour
RAL 9005
Supply includes
4 corner covers | Assembly parts | 4 base/plinth corner pieces, 200 mm high | 1 base/plinth trim panel, front/rear, 200 mm high | 2 base/plinth trim panels, front/rear, 100 mm high
Note
Side base/plinth trim panels finish off a base/plinth unit or provide additional stabilisation between base/plinths or enable interior configuration of the base/plinth
Dimensions
Height: 200 mm
To fit
Enclosure type: VX | VX IT | VX SE | TX CableNet | TS | TS IT | TP | PC | IW | CX | Width: = 300 mm
Type rating to UL 50E
Type 1
Weight/pack
5.13 kg
Packs of
2 pc(s).
PCF per pack (cradle-to-gate)
19.5 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177978119
ETIM 9
EC000721
ETIM 8
EC000721
ECLASS 8.0
27182003
Product description
VX base/plinth corner piece with trim panel, front and rear, H: 200 mm, for W: 300 mm, sheet steel
Feature → Business Impact → Application: Base/plinth corner piece with trim panels stabilizes the enclosure foundation, reducing vibration and misalignment in crowded industrial spaces, enabling reliable cable routing and easier service. Application: VX, VX IT, VX SE and related enclosures in manufacturing lines or data centers. Feature → Business Impact → Application: Front and rear trim panels in sheet steel plus corner covers deliver a clean interior and robust edge protection, improving ingress prevention and reducing wear during maintenance. Application: New installs and retrofits where interior configuration and long-term durability matter. Feature → Business Impact → Application: 200 mm high corners and 300 mm wide footprint with UL 50E Type 1 compliance ensure safe, code-conforming base construction, easing compliance audits. Application: Projects with strict safety and enclosure standards. Feature → Business Impact → Application: Pack contents including 4 corner covers, 1 base/plinth trim panel, and 2 trim panels simplify on-site assembly and minimize part mismatch, lowering installation time and error rates. Application: Quick deployment in VX-based systems. Feature → Business Impact → Application: Material choice—sheet steel for panels and durable plastics for corner/baying covers—delivers strength-to-weight efficiency and cost-effective maintenance. Application: Industrial cabinets subject to frequent cable entry and occasional impact. Feature → Business Impact → Application: PCF per pack (19.5 kg CO2 eq, Cat B) provides a cradle-to-gate environmental snapshot, helping projects meet sustainability targets. Application: Green procurement and reporting for enclosure infrastructure.
