Rittal VX 8660.022 Base/plinth Corner Piece - UL 50E
Part Number: 8660022
Manufacturer
Rittal
Part number
8660022
Alt Part Number
VX 8660.022
Quick Summary
Rittal VX 8660.022 base/plinth corner pieces with trim panels deliver a stable, trim-ready cable-entry solution for 600 mm VX enclosures. Project teams often struggle with gaps, wobble, and misrouted cables at the base, causing installation delays and inconsistent interiors. This variant carries UL 50E Type 1 certification and aligns with ETIM EC000721 and ECLASS 27182003, ensuring alignment with procurement and engineering standards. By integrating this kit into VX enclosures, you gain faster assembly, improved rigidity, and cleaner cable routing, supporting scalable configurations for industrial automation and IT cabinet applications.
Product Information
Extended Description

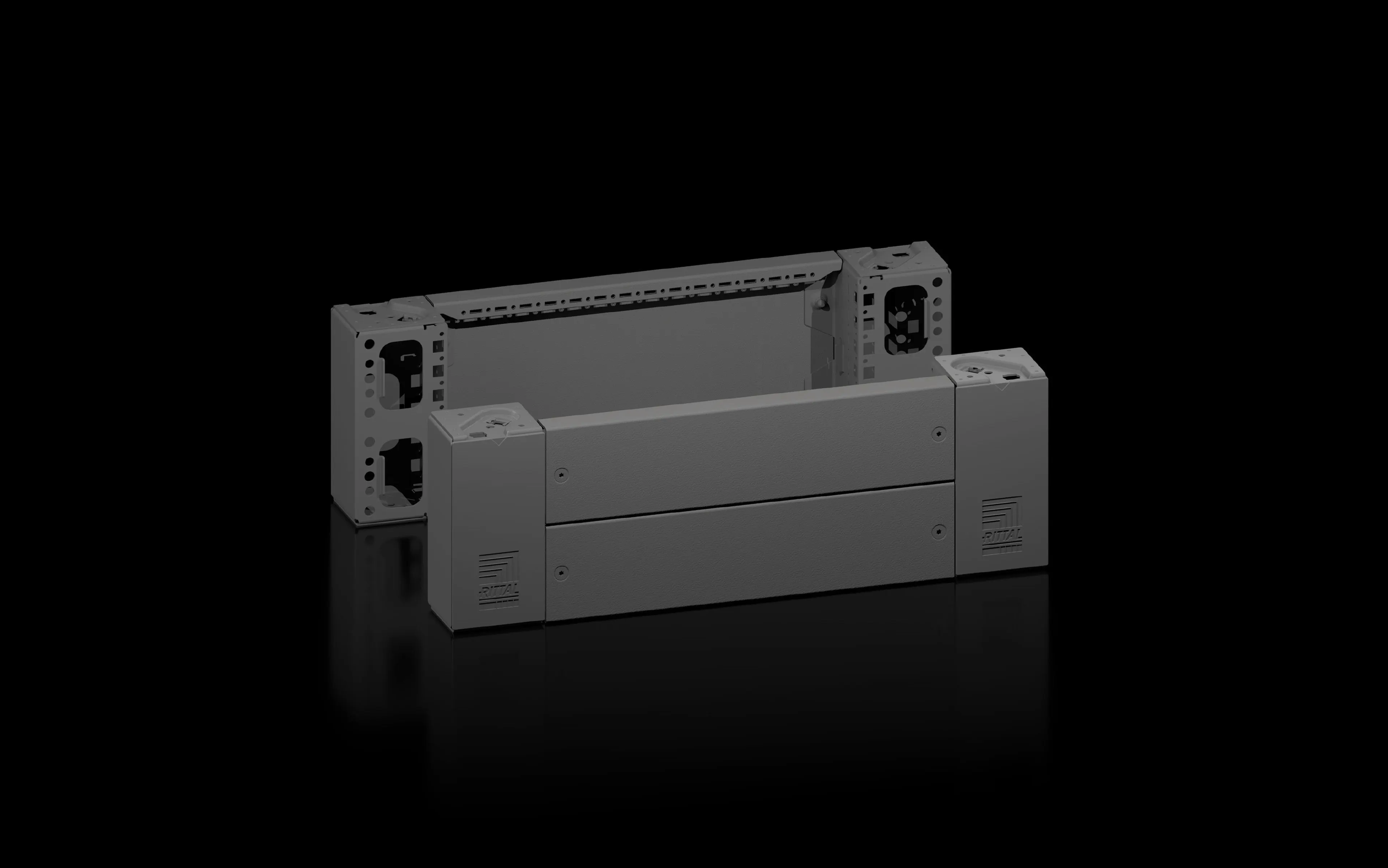

8660022 Rittal: VX base/plinth corner piece with trim panel, front and rear, H: 200 mm, for W: 600 mm, sheet steel
Article number
VX 8660.022
Benefits
Reliable – Excellent stability of the base/plinth
Material
Base/plinth corner piece: Sheet steel | Base/plinth trim panel front/rear: Sheet steel | Corner and baying cover: Plastic
Colour
RAL 9005
Supply includes
4 corner covers | Assembly parts | 4 base/plinth corner pieces, 200 mm high | 1 base/plinth trim panel, front/rear, 200 mm high | 2 base/plinth trim panels, front/rear, 100 mm high
Note
Side base/plinth trim panels finish off a base/plinth unit or provide additional stabilisation between base/plinths or enable interior configuration of the base/plinth
Dimensions
Height: 200 mm
To fit
Enclosure type: VX | VX IT | VX SE | TX CableNet | TS | TS IT | TP | PC | IW | CX | Width: = 600 mm
Type rating to UL 50E
Type 1
Weight/pack
7.27 kg
Packs of
2 pc(s).
PCF per pack (cradle-to-gate)
27.7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177978133
ETIM 9
EC000721
ETIM 8
EC000721
ECLASS 8.0
27182003
Product description
VX base/plinth corner piece with trim panel, front and rear, H: 200 mm, for W: 600 mm, sheet steel
Feature → Business Impact → Application: The VX 8660.022 kit provides a complete base/plinth corner and trim panel system (front/rear) at 200 mm height for a 600 mm wide enclosure, delivering enhanced base stability and reduced wobble in busy production lines. This translates to faster commissioning and improved long-term reliability for control cabinets in industrial automation and electrical infrastructure environments. Feature → Business Impact → Application: The kit uses sheet steel for the base components and plastic for the corner/baying covers, delivering a rigid yet adaptable solution with cost-effective serviceability. This combination minimizes corrosion risk in harsh environments while simplifying field maintenance and interior configuration for IT and process cabinets. Feature → Business Impact → Application: RAL 9005 color ensures a consistent, professional appearance across fleet deployments, enabling straightforward integration with existing enclosure aesthetics and regulatory labeling in industrial facilities. Feature → Business Impact → Application: To fit VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX with a 600 mm width, the kit guarantees wide compatibility and standardized installation procedures, reducing engineering variance and training time. Feature → Business Impact → Application: UL 50E Type 1 rating confirms safety compliance for electrical enclosures, while ETIM EC000721 and ECLASS 27182003 classifications streamline parts identification and procurement workflows, supporting faster sourcing and BOM accuracy. Feature → Business Impact → Application: The supply includes 4 corner covers, 4 base/plinth corner pieces, 1 trim panel, and 2 additional trim panels, enabling complete, no-surprise installations and faster onboarding for maintenance technicians in production environments.
Get a Quick Quote for a Rittal 8660022
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8660022?
Enquire Now
FAQs
Begin by verifying enclosure width compatibility (600 mm). Mount the four base/plinth corner pieces to the frame, attach the four corner covers, then install front and rear trim panels. Use the included assembly parts to lock components in place and align the trim with the enclosure edges. Finally, check the base for rigidity and re-route cables as needed for a clean interior.
Height is 200 mm and width is 600 mm. The base/plinth corner pieces and trim panels are sheet steel, with plastic corner/baying covers. Color is RAL 9005. Weight per pack is 7.27 kg, and packs per order are 2. The kit includes 4 corner covers, 4 base/plinth corner pieces, 1 front/rear trim panel, and 2 trim panels (front/rear). It is rated UL 50E Type 1 and has an EAN of 4028177978133.
Yes. The to-fit list includes VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, and CX enclosures, all with a 600 mm width. This ensures consistent integration across multiple VX variants, supporting standardized installation practices and interior configuration for mixed cabinet fleets.
The kit carries UL 50E Type 1 certification, ensuring electrical enclosure safety. It is classified under ETIM EC000721 and ECLASS 27182003 for consistent parts identification and procurement workflows. Environmental data include a cradle-to-gate PCF of 27.7 kg CO2 eq (Category B), reflecting the product’s lifecycle impact considerations.
The complete base/plinth kit improves installation speed, enhances base stability, and provides cleaner cable entry paths, reducing field rework. Its standardized dimensions and compatibility simplify BOM creation and procurement, while the durable sheet steel construction and color consistency support long-term maintenance efficiency in high-volume manufacturing environments.
