Rittal VX 8660.024 Base/plinth Corner - UL Type 1
Part Number: 8660024
Manufacturer
Rittal
Part number
8660024
Alt Part Number
VX 8660.024
Quick Summary
Rittal VX 8660.024 base/plinth corner pieces provide stable, professional support for VX enclosures in industrial automation settings. This base kit enables secure corner construction with trim panels for front and rear assembly, improving rigidity and cable management at the cabinet base. The VX system with this corner piece is UL 50E Type 1 rated, helping ensure safe operation in compliant electrical installations. By simplifying base-to-base connections and interior configuration, it reduces field labor and rework. For manufacturers and integrators, the combination of sheet steel construction, RAL 9005 finish, and precise fit translates into predictable enclosure performance, reduced maintenance, and better long-term total cost of ownership. Compatible with VX, VX IT, VX SE and related VX family enclosures for standardized, scalable builds.
Product Information
Extended Description

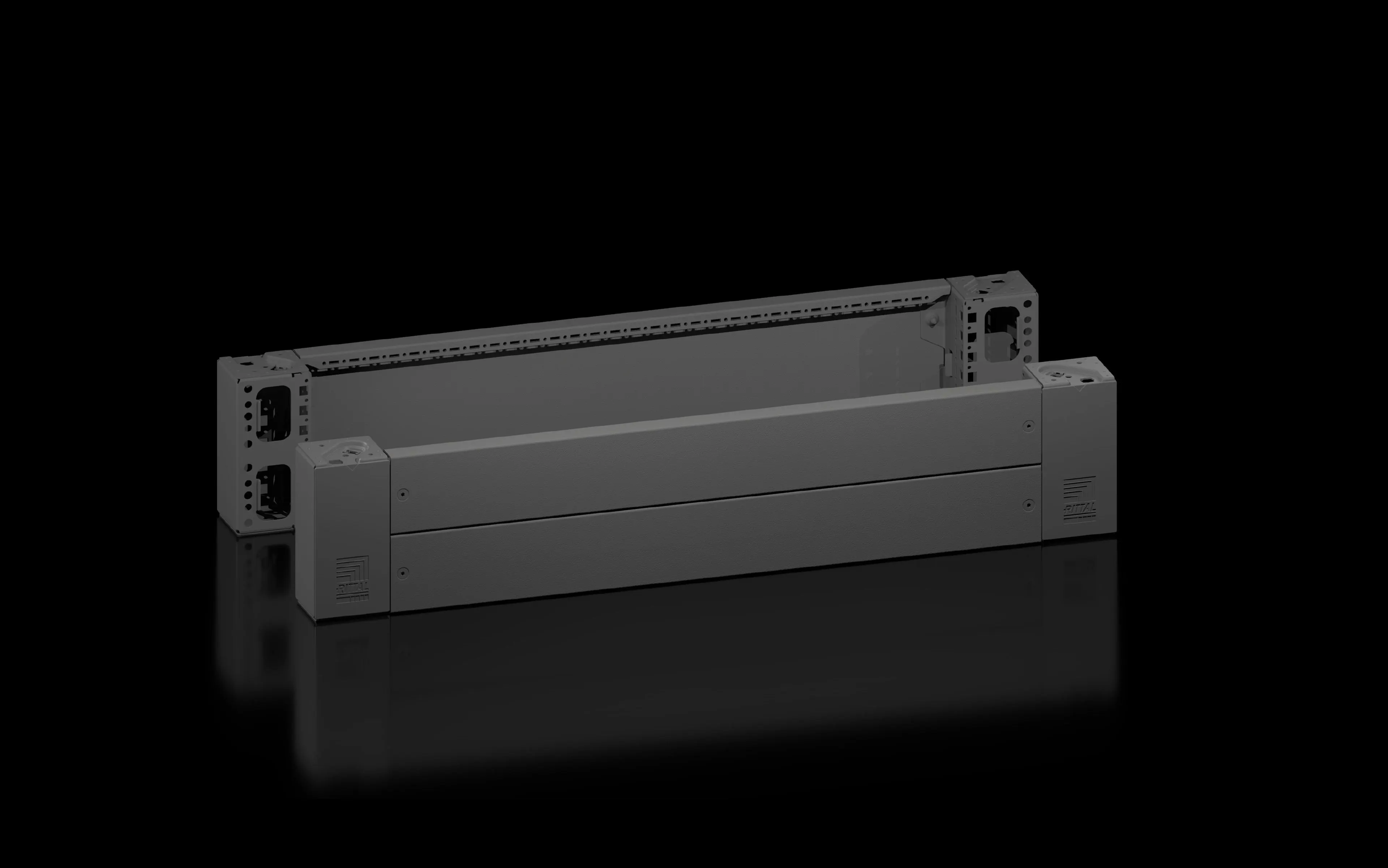

8660024 Rittal: VX base/plinth corner piece with trim panel, front and rear, H: 200 mm, for W: 1000 mm, sheet steel
Article number
VX 8660.024
Benefits
Reliable – Excellent stability of the base/plinth
Material
Base/plinth corner piece: Sheet steel | Base/plinth trim panel front/rear: Sheet steel | Corner and baying cover: Plastic
Colour
RAL 9005
Supply includes
4 corner covers | Assembly parts | 4 base/plinth corner pieces, 200 mm high | 1 base/plinth trim panel, front/rear, 200 mm high | 2 base/plinth trim panels, front/rear, 100 mm high
Note
Side base/plinth trim panels finish off a base/plinth unit or provide additional stabilisation between base/plinths or enable interior configuration of the base/plinth
Dimensions
Height: 200 mm
To fit
Enclosure type: VX | VX IT | VX SE | TX CableNet | TS | TS IT | TP | PC | IW | CX | Width: = 1,000 mm
Type rating to UL 50E
Type 1
Weight/pack
10.2 kg
Packs of
2 pc(s).
PCF per pack (cradle-to-gate)
38.9 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177978157
ETIM 9
EC000721
ETIM 8
EC000721
ECLASS 8.0
27182003
Product description
VX base/plinth corner piece with trim panel, front and rear, H: 200 mm, for W: 1000 mm, sheet steel
Feature → Business Impact → Application: Height and width compatibility—designed for H 200 mm and W 1,000 mm VX enclosures; impact is a stable foundation that minimizes wobble and improves gasket integrity, applicable to VX, VX IT, VX SE and related VX cabinet families. Feature → Business Impact → Application: Sheet steel construction for base corners and trim panels with plastic corner/baying covers; impact is greater rigidity and durable finishes in harsh industrial environments, ideal for factory floors and assembly lines. Feature → Business Impact → Application: Supplied components include 4 corner covers, assembly parts, 4 base/plinth corner pieces, 200 mm high trim panel, and 2 front/rear trim panels at 100 mm; impact is faster, error-free installation and reduced on-site downtime, suitable for scalable VX deployments. Feature → Business Impact → Application: UL 50E Type 1 rating and a 10.2 kg per pack weight (2 pcs per pack) provide predictable performance and safe handling; impact is compliant, repeatable installations across multiple sites. Feature → Business Impact → Application: Sustainability metrics such as PCF 38.9 kg CO2 eq per pack (Cat B) support responsible sourcing and lower environmental footprint; impact is alignment with corporate ESG programs while maintaining standard VX interfaces across VX, VX IT, VX SE, and TX CableNet configurations.
Get a Quick Quote for a Rittal 8660024
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8660024?
Enquire Now
FAQs
The VX 8660.024 is designed to fit VX family enclosures with a 1,000 mm width and 200 mm high base, including VX IT and VX SE variants. This ensures a consistent base interface across the VX system, simplifying installation and future expansion.
Key specs include height 200 mm, width 1,000 mm; base/plinth corner pieces and trim panels made from sheet steel, with plastic corner/baying covers. The assembly is finished in RAL 9005 to match standard enclosures.
Yes. The kit provides a UL 50E Type 1 rating, indicating suitability for safe, code-compliant cabinet bases in commercial and factory environments.
The kit includes all necessary assembly parts and corner covers, enabling fast, error-free base assembly with consistent interface points for interior configuration and cable entry management.
Pack weight is 10.2 kg per pack (2 pcs), with PCF 38.9 kg CO2 eq (Cat B). Packaging and parts are designed to support scalable VX builds while minimizing environmental impact.
