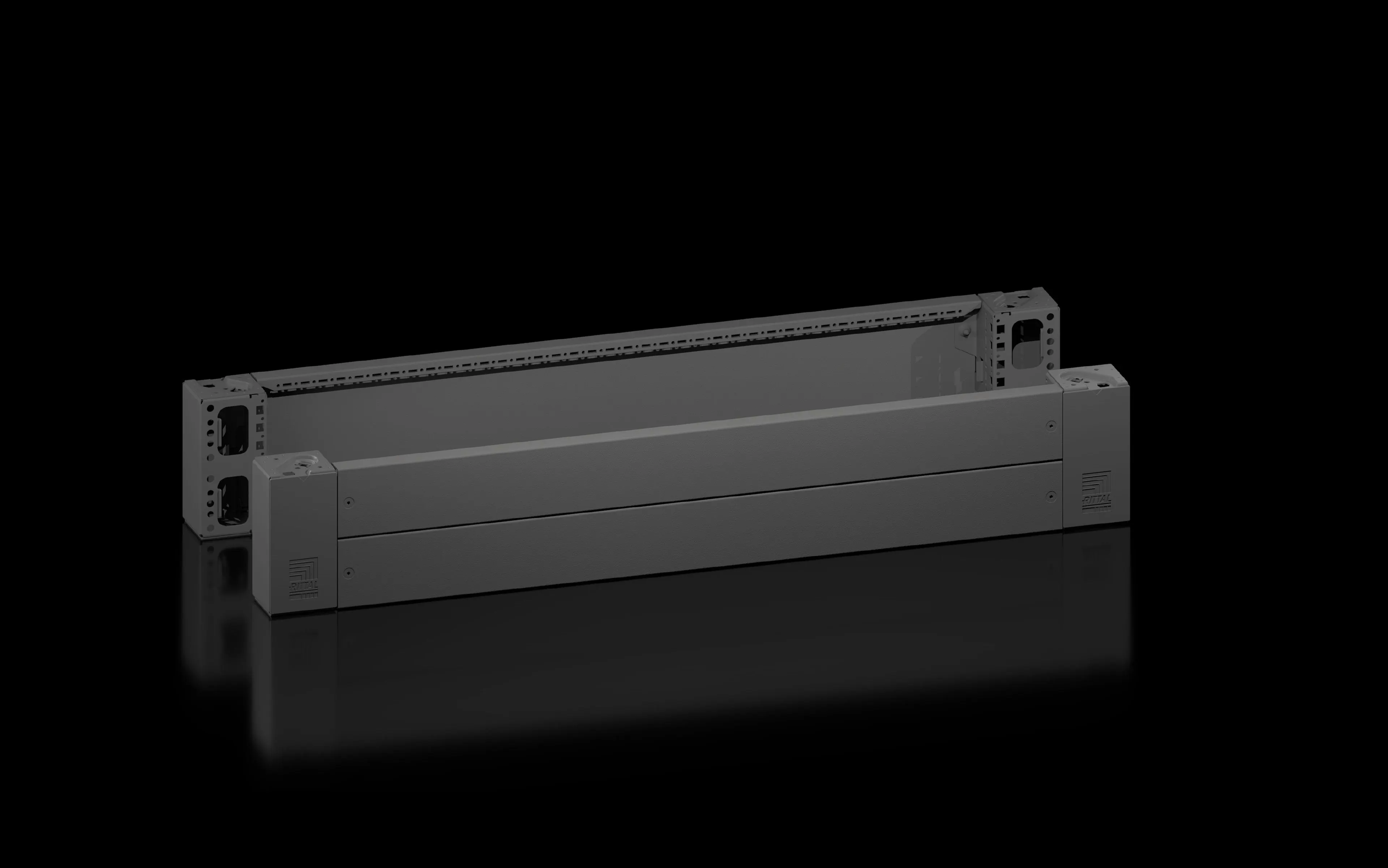

Rittal VX 8660.025 Base/Plinth Corner Pieces - Type 1
Part Number: 8660025
Manufacturer
Rittal
Part number
8660025
Alt Part Number
VX 8660.025
Quick Summary
Rittal VX 8660.025 base/plinth corner pieces provide stable, trim-panel integration for VX enclosure systems. Installers benefit from a clean, modular base that supports reliable cable entry and interior configuration. The data lists UL 50E Type 1 certification, underscoring safe enclosure performance, while CE and IP ratings are not specified here and should be confirmed with the supplier. The 200 mm high corner pieces fit 1,200 mm wide VX units, enhancing rigidity and alignment, while the included trim panels simplify finishing and future expansion. Designed for engineers and procurement teams, this accessory delivers predictable installation timing, scalable enclosure design, and improved lifecycle cost management.
Product Information
Extended Description
8660025 Rittal: VX base/plinth corner piece with trim panel, front and rear, H: 200 mm, for W: 1200 mm, sheet steel
Article number
VX 8660.025
Benefits
Reliable – Excellent stability of the base/plinth
Material
Base/plinth corner piece: Sheet steel | Base/plinth trim panel front/rear: Sheet steel | Corner and baying cover: Plastic
Colour
RAL 9005
Supply includes
4 corner covers | Assembly parts | 4 base/plinth corner pieces, 200 mm high | 1 base/plinth trim panel, front/rear, 200 mm high | 2 base/plinth trim panels, front/rear, 100 mm high
Note
Side base/plinth trim panels finish off a base/plinth unit or provide additional stabilisation between base/plinths or enable interior configuration of the base/plinth
Dimensions
Height: 200 mm
To fit
Enclosure type: VX | VX IT | VX SE | TX CableNet | TS | TS IT | TP | PC | IW | CX | Width: = 1,200 mm
Type rating to UL 50E
Type 1
Weight/pack
11.7 kg
Packs of
2 pc(s).
PCF per pack (cradle-to-gate)
44.6 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177978171
ETIM 9
EC000721
ETIM 8
EC000721
ECLASS 8.0
27182003
Product description
VX base/plinth corner piece with trim panel, front and rear, H: 200 mm, for W: 1200 mm, sheet steel
Feature: Stable base/plinth corner pieces and trim panels provide a rigid foundation for VX enclosures, reducing wobble and misalignment. Business Impact: Improves mounting accuracy, EMC performance, and long-term reliability in harsh industrial environments. Application: Ideal for machine control panels and 19-inch rack-adjacent assemblies where precise base alignment matters. Feature: Sheet steel construction for base components and trim panels with plastic corner covers delivers durability and cost efficiency. Business Impact: More robust enclosure framing with easier repairs and lower replacement cycles. Application: Suitable for frequent base reconfiguration in dynamic production lines. Feature: 200 mm height and 1,200 mm width compatibility across VX family enlarges system flexibility. Business Impact: Enables quick expansion and consistent aesthetics across multiple enclosures, lowering design time. Application: Fits VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX families. Feature: Complete kit packaging including corner covers, corner pieces, and trim panels reduces sourcing steps. Business Impact: Speeds up installation and minimizes project delays. Application: Facilitates turnkey base/plinth upgrades in new builds or retrofits. Feature: UL 50E Type 1 rating (as listed) supports safety compliance during base assembly. Business Impact: Enhances regulatory confidence for electrical installations; helps meet industry standards. Application: Critical for control cabinet assemblies where safety certification is required. Feature: Sustainability data with PCF per pack informs environmental considerations. Business Impact: Supports green procurement and lifecycle assessment efforts. Application: Pack details (2 pcs) and CO2 eq metrics aid reporting and supplier selection.
Get a Quick Quote for a Rittal 8660025
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8660025?
Enquire Now
FAQs
The VX 8660.025 kit is designed for the VX family and related variants, including VX IT and VX SE, with a 1,200 mm width. It provides the base/plinth corner pieces and trim panels required for a stable, finished foundation.
The kit includes 4 base/plinth corner pieces (200 mm high), 1 front/rear base/plinth trim panel (200 mm high), 2 front/rear trim panels (100 mm high), and 4 corner covers with assembly parts, enabling complete base configuration.
Base/plinth corner pieces and front/rear trim panels are sheet steel, with corner and baying covers made of plastic. The finish color is RAL 9005, providing a durable, uniform appearance on 1,200 mm VX enclosures.
PCF per pack is 44.6 kg CO2 eq (Category B). The pack consists of 2 units, with individual weight per pack of 11.7 kg, supporting sustainability reporting and lifecycle assessments for industrial enclosures.
UL 50E Type 1 rating confirms a safe base/plinth assembly for enclosure applications. This supports compliance in controlled electrical installations, and should be verified against local regulatory requirements for your specific project.
