Rittal 8660031 VX base/plinth trim panel - UL 50E Type 1
Part Number: 8660031
Manufacturer
Rittal
Part number
8660031
Alt Part Number
VX 8660.031
Quick Summary
Rittal 8660031 VX base/plinth trim panel helps finish base enclosures and stabilize bayed layouts in switchgear rooms. Installing trims can be fiddly and error-prone, leading to gaps or misalignment; this panel provides a precise, ready-to-fit solution that simplifies installation and improves aesthetics. Key certifications and standards include UL 50E Type 1 for enclosure safety, plus data-compatible references like ETIM EC000721 and ECLASS 27182003 to support seamless integration with customer data systems. With a durable sheet steel build finished in RAL 9005 and compatibility across the VX family, this trim panel delivers consistent, repeatable results while supporting efficient procurement and project timelines.
Product Information
Extended Description

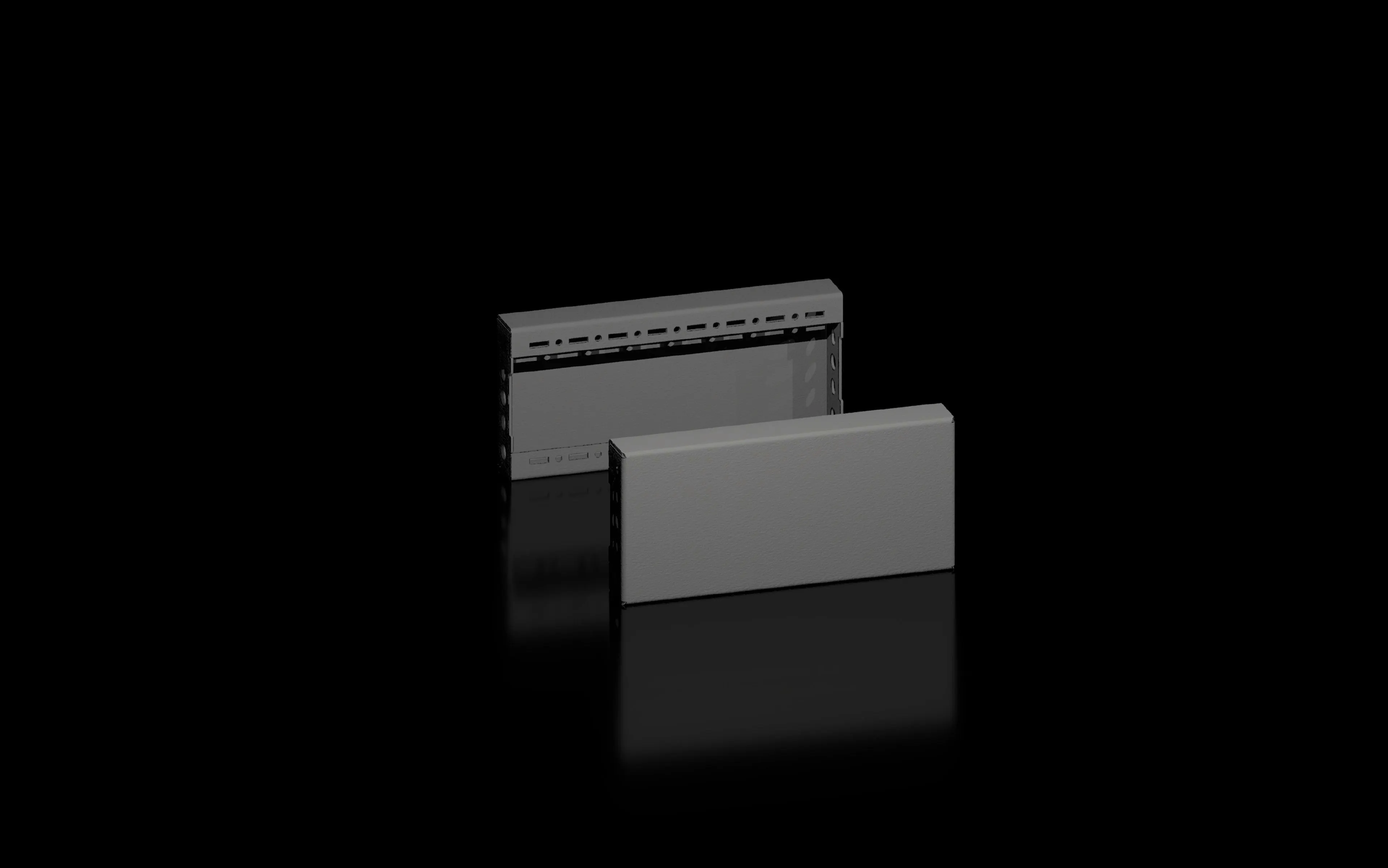

8660031 Rittal: VX base/plinth trim panel, side, H: 100 mm, for D: 400 mm, sheet steel
Article number
VX 8660.031
Design
Solid
Material
Sheet steel
Colour
RAL 9005
Supply includes
Assembly parts
Dimensions
Height: 100 mm
To fit
Enclosure type: VX | VX IT | VX SE | TX CableNet | TS | TS IT | TP | PC | IW | CX | Depth: = 400 mm
Type rating to UL 50E
Type 1
Weight/pack
1.11 kg
Packs of
2 pc(s).
To fit
for base/plinth system VX, sheet steel
PCF per pack (cradle-to-gate)
4.2 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177978218
ETIM 9
EC000721
ETIM 8
EC000721
ECLASS 8.0
27182003
Product description
VX base/plinth trim panel, side, H: 100 mm, for D: 400 mm, sheet steel
Feature is a 100 mm high side trim panel for D 400 mm with solid sheet steel construction. Business impact is enhanced structural stability and a clean edge finish for base/plinth assemblies, reducing field rework and entry points for dust. Application spans VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX base/plinth configurations, enabling standardized bays across multiple enclosures. Feature compatibility with 2-pack packaging and assembly parts simplifies stock management and install planning. Business impact is faster installation and lower labor costs on-site. Feature material is sheet steel with a durable powder-coated finish in RAL 9005, improving corrosion resistance in harsh industrial environments. Business impact is longer service life and lower maintenance. Feature type rating UL 50E Type 1 ensures safe operation within electrical cabinets, addressing compliance concerns and supporting audits. Application areas include base/plinth systems VX for scalable, bayed deployments, enabling consistent aesthetics and modular growth. Feature PCF per pack is 4.2 kg CO2 eq (Cat B), underscoring a responsible footprint in the supply chain.
Get a Quick Quote for a Rittal 8660031
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8660031?
Enquire Now
FAQs
The VX 8660.031 trim panels attach to the sides of VX base/plinth units, fitting 200 mm base heights with a single 200 mm panel or two 100 mm panels for 200 mm high bases. They include assembly parts to streamline installation and align with the 400 mm enclosure depth for a seamless bay configuration.
The panel is made from sheet steel with a solid design and finishes in RAL 9005. Each pack weighs 1.11 kg and contains two panels, simplifying handling and on-site logistics while keeping overall weight contributions low for base/plinth assemblies.
The trim panels fit VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX base/plinth systems, specifically for D 400 mm and H 100 mm applications. This promotes consistency across multiple enclosure families and supports scalable baying layouts.
Key certifications and standards include UL 50E Type 1 for enclosure safety. The product data also aligns with ETIM EC000721 and ECLASS 27182003, ensuring compatibility with common data models used in procurement and engineering workflows.
The panel improves installation speed and reduces field rework by providing a precise, repeatable edge finish for base/plinth bays. Its 2-pack configuration lowers stock diversity, while the 4.2 kg CO2 eq PCF per pack reflects a modest environmental impact, supporting sustainability goals without compromising durability or safety.
